Firestone W01-358-8723 Goodyear Truck Air Suspension Assembly 1R13-097
Firestone Replacement Air Spring W01-358-8723 Goodyear Truck Air Suspension Assembly 1R13-097
Product Description
Item: Firestone Rolling Lobe Air Spring
Brand: GUOMAT/Neutral
Part Number: 1T8723
Material: Rubber+Aluminum Alloy
Warranty: 1 Year
Weight: 8.0KG
Car Model: Truck / Trailer
Type: Auto Parts
Manufacturer Part Number
Firestone Rolling Lobe Air Spring W013588723
Firestone Rolling Lobe Air Spring W01 358 8723
Firestone Rolling Lobe Air Spring W01-358-8723
Firestone Rolling Lobe Air Spring WO13588723
Firestone Rolling Lobe Air Spring WO1 358 8723
Firestone Rolling Lobe Air Spring WO1-358-8723
Contitech Rolling Lobe Air Spring 10 10-15 S 962
Goodyear Rolling Lobe Air Spring 1R13-097
Goodyear Rolling Lobe Air Spring 1R 13-097
Goodyear Rolling Lobe Air Spring 1R13 097
Goodyear Rolling Lobe Air Spring 1R 13 097
Continental ContiTech Order Number: 67600
Automann Number: 1DK25B-8723
Firestone Style Number: 1T17B-5
FleetPride Number: AS8723
Goodyear Number: 1R13-087
Goodyear Flex Number: 566263081
GUOMAT 1T8723 Truck Air Spring Technical Data
Extended Height:17.80 inches
Compressed Height: 5.60 inches
Top Plate Width:10.38 inches
Bottom Plate Width: 9.50 inches
Piston Width:9.50 inches
Piston Height: 3.90 inches
Replacing a Truck Suspension Air Spring
- Turn off the air suspension switch.
- Raise and support the vehicle.
- Deflate the air spring.
- Remove any bolts or fasteners securing the air spring to the vehicle.
- Remove the air spring from the vehicle.
- Install the new air spring.
- Secure the air spring with bolts or fasteners.
- Inflate the new air spring.
- Lower the vehicle.
- Turn on the air suspension switch and ensure that the new air spring functions properly.
It is important to note that the specific steps for replacing an air spring can vary depending on the make and model of the truck, as well as the type of suspension system being used.
1T17B-5 Type Firestone Truck Air Bags
|
GUOMAT No. |
Firestone Type |
Firestone Number |
Cross Reference |
|
1T8740 |
1T17B-5 |
W01-358-8740 |
Contitech 10 10-15 S 773 Reyco 23433-01 |
|
1T8752 |
1T17B-5 |
W01-358-8752 |
Contitech 10 10-15 S 518 Watson&Chalin AS-0084 Ridewell 1003588752C Suspension Inc. 201642 |
|
1T8753 |
1T17B-5 |
W01-358-8753 |
Contitech 10 10-15 S 713 Watson&Chalin AS-0098 Ridewell 1003588753C |
|
1T8755 |
1T17B-5 |
W01-358-8755 |
Contitech 10 10-15 S 522 Goodyear 1R13-124 Hendrickson Trailer S22045(HK190T) Prototype C21623 |
|
1T8456 |
1T17B-5 |
W01-358-8756 W01-358-8710 |
Contitech 10 10-15 S 711 Hendrickson Trailer S22046(HK230) Prototype C21624 |
|
1T8782 |
1T17B-5 |
W01-358-8782 |
Contitech 10 10-15 S 871 Goodyear 1R13-109 Ridewell 1001R13109G |

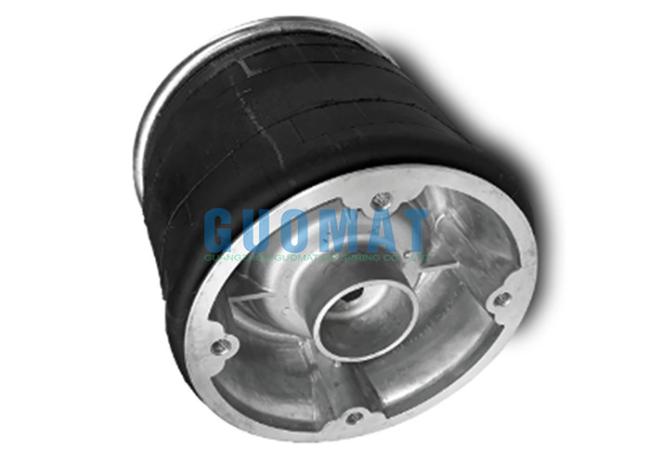

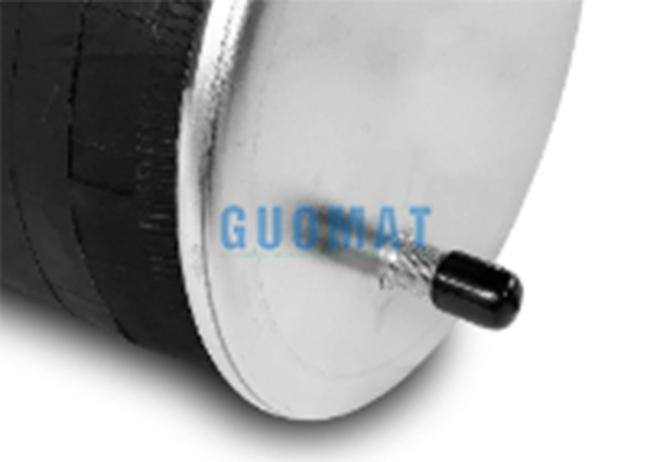

The Real Pictures
