VOL-VO Suspension Balloon Air Spring 1R12-762 Goodyear 4713NP02 Contitech Truck Spare Parts 1076594/1076595
VOL-VO Suspension Balloon Air Spring 1R12-762 Goodyear 4713NP02 Contitech Truck Spare Parts 1076594/1076595
Product Details
GUOMAT 1T9760 refers to Goodyear truck air spring model 1R12-762. It is also known as the ContiTech 4713NP02 air spring. This air spring is designed for use in commercial vehicles, especially trucks. It is a high quality air spring used in truck airbag suspension systems.
Original Equipment Manufacturer Numbers
Firestone Number: W01-M58-9760/WO1-M58-9760
Firestone Number: W01 M58 9760/WO1 M58 9760
Firestone Number: W01M589760/WO1M589760
Firestone Bellow Number: 1T17BR-8
Goodyear Number: 1R12-762
Goodyear Number: 1R 12-762
Goodyear Number: 1R12 762
Contitech Number: 4713NP02
Contitech Number: 4713 NP02
Contitech Number: 4713 NP 02
Dunlop FR Number: D12B24
CF Gomma Number: 1TS300-28
Phoenix Number: 1DF22C-1
Aretech Number: 34713K/131842
DT Number: 2.62061
FEBI Number: 20501
Peautomotive Number:084.107-11A/41A
Peautomotive Number: 084.107-71A
Meritor Number: MLF7098
Trucktechnic Number: TT23.09.098
Templin Number: 04.060.6006.480
Templin Number: 04.010.6100.480
Templin Number: 04.030.6102.480
VOL-VO Number:1076594/1076595
Technical Data
| The cover plate diameter | 262mm |
| The stud | M10x1.5/M16X1.5 |
| Base width | 189mm |
| Outer diameter | 300mm |
| Max height | 491mm |
| Min height | 201mm |
| Base height | 155mm |
Truck Air Spring Applications
Truck air springs are used in various applications to provide suspension support and improve ride quality. Here are some common applications of truck air springs:
- Truck Cabin: Air springs are used in truck cabins to provide cushioning and reduce vibrations for the driver and passengers.
- Trailer/Axle: Air springs are used in trailers and axles to improve load-carrying capacity and stability.
- Caravan/Transporter: Air springs are used in caravans and transporters to enhance suspension performance and comfort.
- Bus: Air springs are used in buses for various applications, including suspension, driver's seat belt tensioner, and seat applications in commercial vehicles and buses .
- Driver's Seat Belt Tensioner: Air springs are used in driver's seat belt tensioner systems in buses .

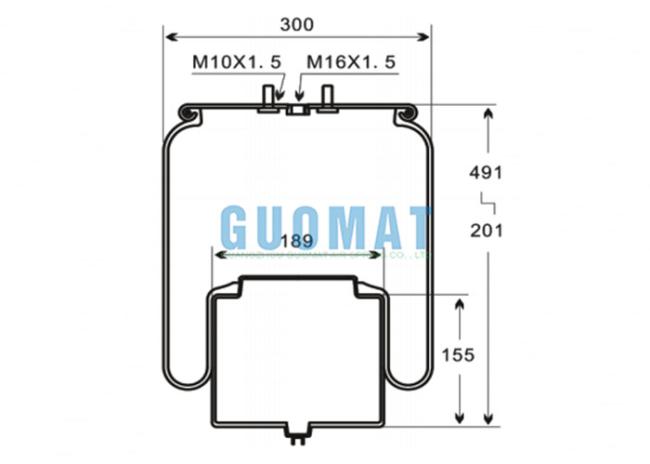

The Drawing of GUOMAT 1T9760
