Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075
GUOMATGFN075 Specifications and Detail Technical Parameters
1,suspension GFN075
| Gantry Front Suspension System |

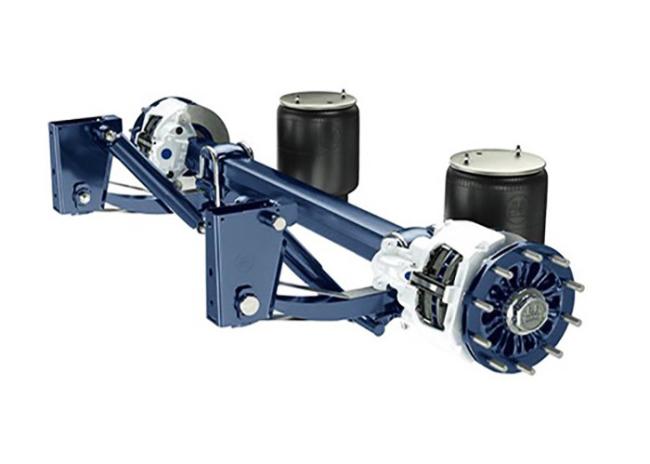

| Model:GFN075 Four-link brake bridge in front of air suspension system; introduction of Hungarian RABA gantry bridge to introduce disc brakes. The price is 30% -40% lower than imported similar products, which not only saves costs, but also brings you comfort. |
2,suspension GCN130
| Air suspension system in the gantry bridge |
| Model:GCN130 Four-bar linkage, large span four air springs, four shock absorbers, low floor, all-air suspension system, the introduction of Hungarian ABA technology, imported disc brakes, imported main reduction and differential, lower prices have advantages Save 30% -40% than imported similar products |
3,suspension GRN075
| With the moving bridge air suspension system |
| Model:GRN075 Four-link mechanism, large-span airbag air spring, air suspension system driving the axle, steering booster, automatic reversing lock, high-speed automatic lock function |
Technical parameters
| Model | AFN075 Gantry bridge before the air suspension system | ACN130 Air suspension system in the gantry bridge | ARN075 With the moving bridge air suspension system |
| Rated shaft load | 7500kg | 13000kg | 7500kg |
| Frame width | 940mm(Channel width can be achieved 720-780mm) | 940mm | 940mm(Channel width can be achieved 780mm) |
| Tread | 1980-2020mm | 1800-1860mm | 1980-2020mm |
| Axle dynamic travel | 160mm(upwards:80mm,downwards:80mm) | 190mm(upwards:90mm,downwards:100mm) | 160mm(upwards:80mm,downwards:80mm) |
| Airbags span | 1200-1300mm | 1500mm | 1200-1300mm |
| The system is biased | 1.15-1.3Hz | 1.15-1.3Hz | 1.15-1.3Hz |
