Goodyear Triple Bellow Air Spring 3B12-335 Firestone W01-358-7996/38
Goodyear Triple Bellow Air Spring 3B12-335 Firestone W01-358-7996/38
GOODYEAR TRIPLE BELLOW AIR SPRING
Firestone W01-358-7996/38,W013587996
W013587938,W01-358-7996
W01-358-7938
Contitech FT 330-29 520
Goodyear 3B12-335
578933100
Triangle 6334/4520
Granning/Tuthill : 8221
Top Plate Hole/Stud Qty: 2
Top Plate Diameter: 231mm
Top Cover Plate Screw (Nut) Tooth : 1pcsXM12X1.75
Bottom Plate Hole Stud Qty: 2
Bottom Plate Diameter: 231mm
Bottom Cover Plate Screw (Nut) Tooth:2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate:157.5mm
Screw Center Distance of Top Cover Plate:157.5mm
Bottom Plate Alignment: 90°
Bumper: Yes

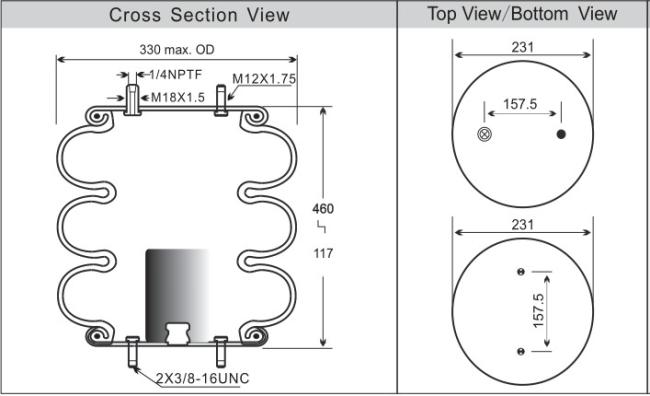

The specific data is shown in the figure
3B12-335/578933100 Goodyear Air Spring
3B12-335 Goodyear Air Spring. Super-Cushion Air Springs give your trucks, trailers and buses a new high in productivity and long life. The Bellow Air Springs provide constant-level hauling, and deliver trouble-free service.
Goodyear air bags protect cargo, and provide level hauling and long term service. The bellow air springs offer a quiet , cushioned ride, and they last longer than steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert.. Plus cargo has better protection from shock and vibration.
Air springs come in various shapes and sizes including bellows, rolling lobe, and sleeve. Goodyear Engineered Products produces all of these air bags in their Super-Cushion product line. Some of the most durable and valuable air springs are produced by Goodyear. Super-Cushion bellows and sleeve springs have strict design specifications and parameters during manufacturing ensuring a perfect fit for your truck or industrial air spring application.
Goodyear air springs for your truck or trailer will offer a quiet, more cushioned ride resulting in greater comfort, peace of mind, and safety. Due to less vibration, truck and trailer suspension components will last longer while providing durability and improved protection from shock and vibration for the vehicle, passenger, and cargo.
As many of you already know, when used with leveling sensors or valves, Goodyear airsprings can maintain consistent ride height regardless of the load applied. This results in less adjustment during every day activities such as keeping level with loading docks. Installation is also very universal and adding a Super-Cushion air bag will fit right in whenever you wish to add an axle.
