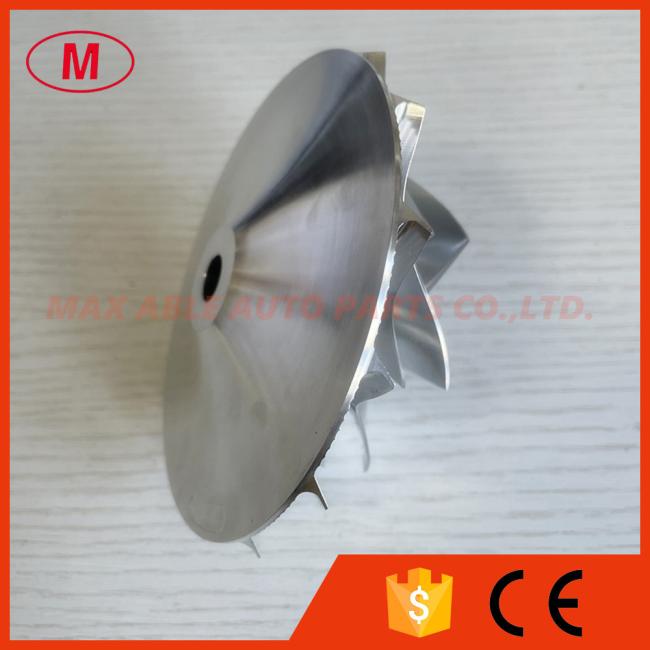

HX60 reverse 76.00/113.01mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:HX60 reverse

2. HX60 reverse 76.00/113.01mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel

3.Size:

Nose Diameter:20.00mm

inducer:76.00mm

Exducer:113.01mm

Tapered tip exducer:118.53mm

Tip height:6.28mm

Superback:9.68mm

Overall height:54.00mm

Bore size:11.12mm

bore type:through

Trailing angle:50 degree

Cutback:6.0mm

Splitter height:24.35mm

SP height angle:-7.00

Blades height:37.28mm

7+7 BLADES

reverse rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.We have many size.

All the compressor wheels have been balanced.



skype : maxabledieselparts
wechat/whatsapp:+86-18018657719
