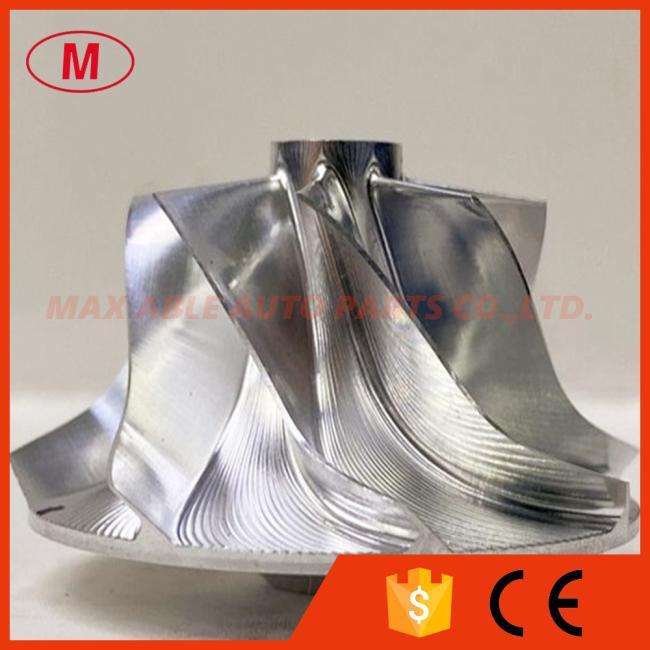

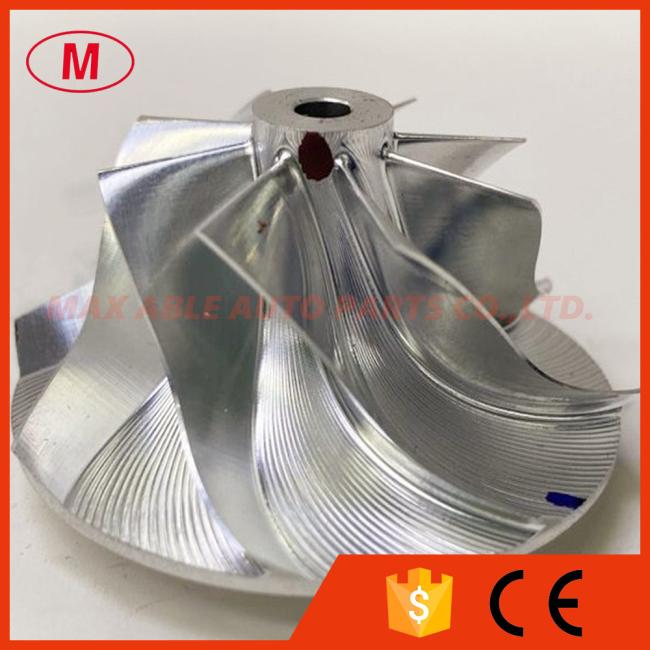

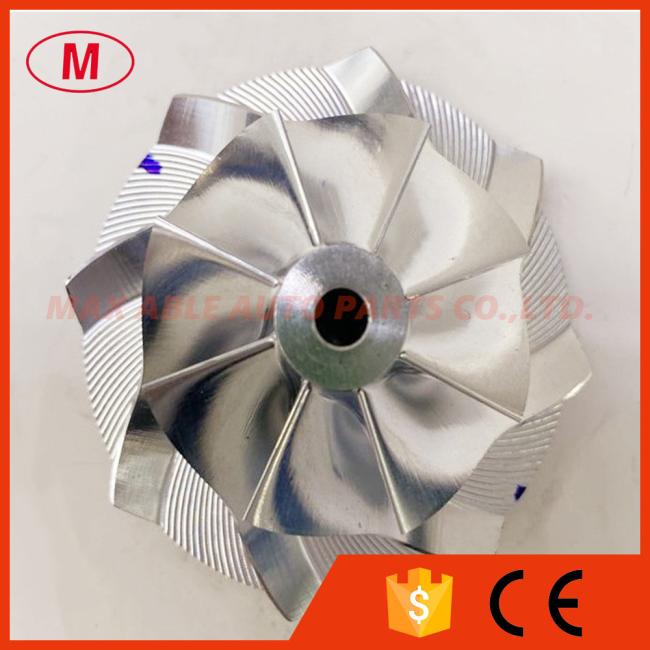

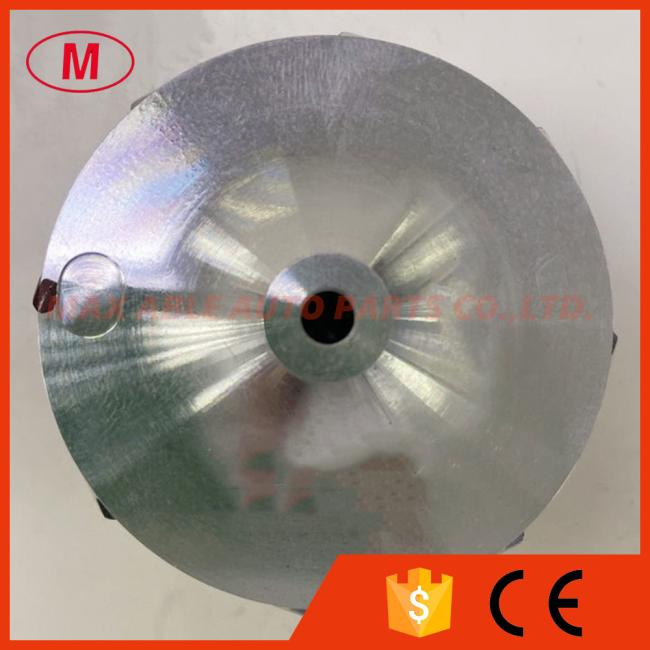

GTD1446VZ 31.85/46.00mm 8+0 blades Turbocharger high performance milling/billet compressor wheel for 830323-0003

1. MODEL:GTD1446VZ forward

2. GTD1446VZ 31.85/46.00mm 8+0 blades Turbocharger high performance Billet/milling/aluminum 2618 compressor wheel for 830323-0003/0002/0001 T6 Multivan/T6 Tansporter 2.0TDI
3.Size:

Nose diameter:10.00mm

inducer:31.85mm

exducer:46.00mm

Tapered tip exducer:49.03mm

Tip height:3.62mm

Superback:3.90mm

Overall height:25.20mm

Bore size:4.08mm

bore type:through

Trailing angle:35 degree

Cutback:3.0

Splitter height:0.00mm

Sp height angle:0.00

Blade height:19.30mm

8+0 BLADES

Forward rotation

It is for OE compressor housing .

Tapered tip angle:30 degree

4.High quality and competitive price.

5.Any questions please send email to me.we have other many sizes.

All the compressor wheels have been balanced.
