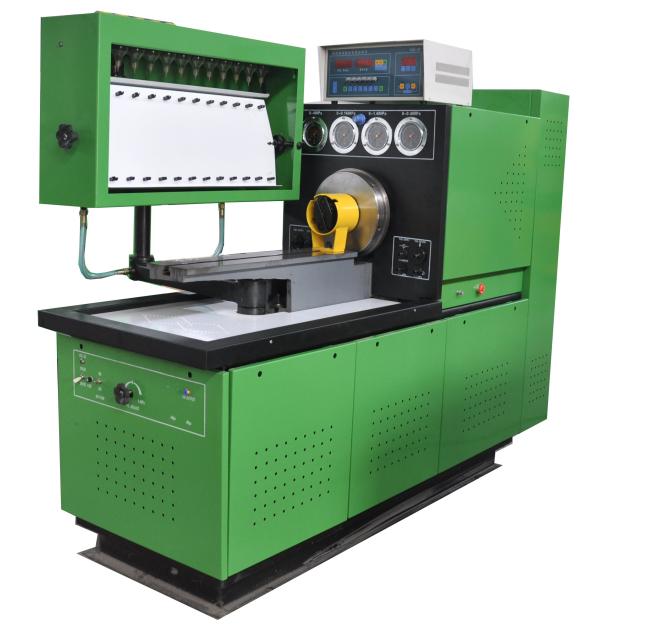

Made in China 12PSB digital display data diesel fuel injection pump test bench
Made in China 12PSB digital display data diesel fuel injection pump test bench
12PSB series fuel injection pump test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality in our business.
Main function 1.The amount and uniformity of oil supply in each cylinder of injection pump
2.The start point and interval angle of oil supply of injection pump
3.The adjusting and testing of speed regulators working performance
4.The test of sealing performance of injection pump
5.The observation of oil return amount of distribution pump at different speed
6.Check pressure compensator of distribution pump
7.Measure the working performance of advance device and air governor
8.Do experiment on air governor with vacuum detector
TECHNICAL PARAMETERS:
| Model | XBD-619S |
| The principle axis revolution: | 0-4000r/min. the two directions is optional |
| test oil injection pump cylinders | 12 |
| The principle axis revolution fluctuate | ±1r/min |
| The host machine power | 5.5kw ,7.5kw,11kw,15kw,18.5kw,22kw |
| The oil supply drive motor power | 1.1kw |
| Principle axis center to center spacing working bench height | 125mm |
| The oil metering counting | 0－1000 times , one gear per 50 times |
| Revolution, counting display | four digital display |
| The pressure, oil temperature display | three digital display |
| The oil temperature automatic control | 40℃±2℃ |
| Gas source pressure | 0-0.25Mpa |
| The oil tank volume | ≥ 40L |
| The oil pump oil supply | ≥ 10L/Min |
| The oil filter precision | 5μ |
| The glass measuring cylinder volume | 45ml, 150ml |
| The oil pressure meter | 1.5 grade : 0-0.6Mpa；0-6Mpa；0-0.16Mpa；0-1.6Mpa |
| The standard injector | ZS12SJI |
| Cooling method | forced wind cooling |
| Test bench overall dimension (mm) | 2300×1160×1780 |
| Test bench weight | 1200kg |
Package
The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.

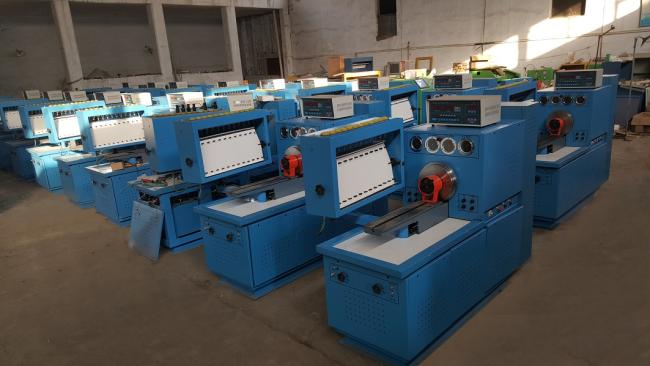

Workshop
