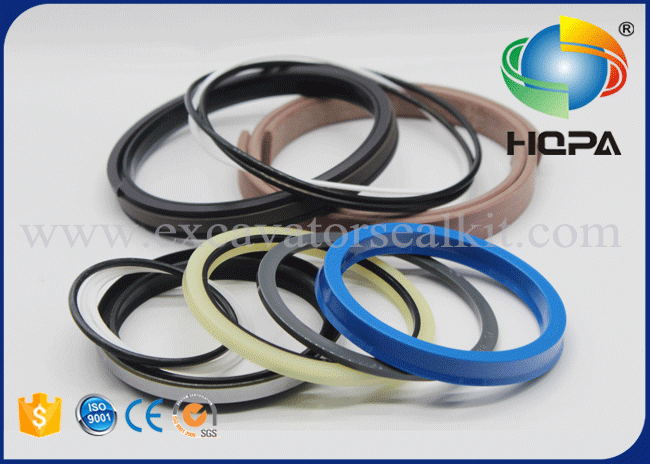

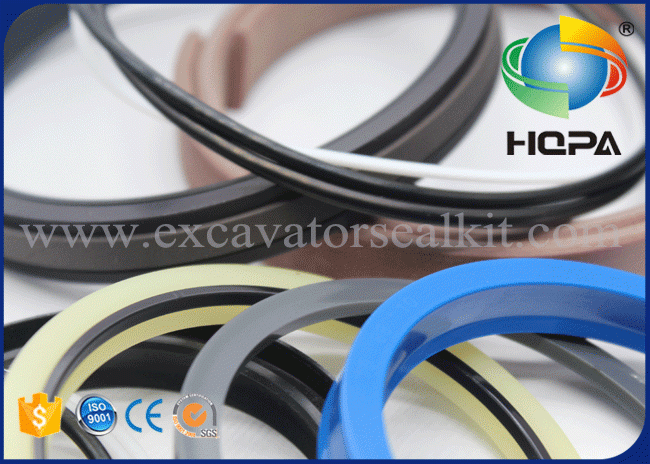

707-98-44200 Komatsu Blade Lift Cylinder Seal Kit D155AX-3 D155AX-5
707-98-44200 7079844200 Komatsu Blade Lift Cylinder Seal Kit D155AX-3 D155AX-5 D155A-3
| Product Name | 707-98-44200 7079844200 Komatsu Blade Lift Cylinder Seal Kit D155AX-3 D155AX-5 D155A-3 |
| Part No. | 707-98-44200 7079844200 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on |
| Hardness | 70-90 Shore A |
| Color | Black, Blue,White or other |
| Size | Standard Size |
| MOQ | We accept trial order |
| Packing | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Port | HUAGNPU,China (Mainland) |
| Shipping | By airplane, ship |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| Appliion | Excavator&Hydraulic Systerm |
| Condition | New |

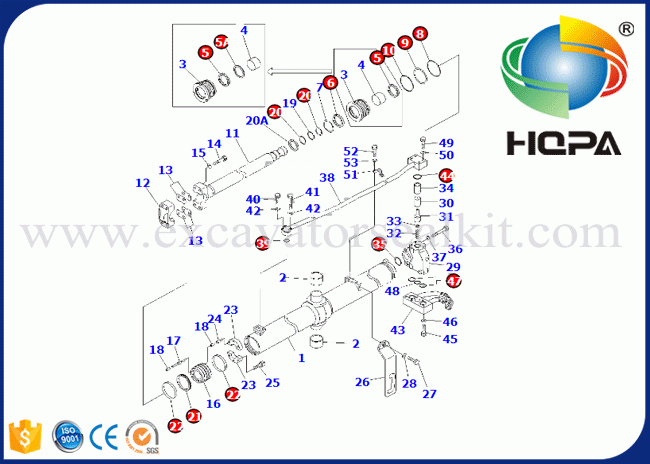

RELATION PARTS:
| NO. | NUMBER | NAME | QTY | OPTIONS |
| 1 | 175-63-22540 | • CYLINDER | 1 | SN: 70001-UP |
| 2 | 175-63-12540 | • BUSHING | 2 | SN: 70001-UP |
| 3 | 707-29-12370 | • HEAD,CYLINDER | 1 | SN: 75257-UP |
| 4 | 707-52-90520 | • BUSHING | 1 | SN: 75257-UP |
| 5 | 707-51-75030 | • PACKING,ROD (KIT) | 1 | SN: 75257-UP |
| 707-51-75211 | • PACKING,ROD (KIT) | 1 | SN: 70001-75256 | |
| 5A | 707-51-75640 | • RING,BUFFER (KIT) | 1 | SN: 75257-UP |
| 6 | 144-63-94170 | • SEAL,DUST (KIT) | 1 | SN: 70001-UP |
| 8 | 07000-12115 | • O-RING (KIT) | 1 | SN: 70001-UP |
| 9 | 07146-02116 | • RING,BACK-UP (KIT) | 1 | SN: 70001-UP |
| 10 | 07000-02120 | • O-RING (KIT) | 1 | SN: 70001-UP |
| 11 | 175-63-22520 | • ROD,PISTON | 1 | SN: 70001-UP |
| 15 | 707-41-11840 | • WASHER | 4 | SN: 70001-UP |
| 175-63-22530 | • PISTON ASS'Y | 1 | SN: 70001-UP | |
| 16 | 707-37-12010 | •• PISTON | 1 | SN: 70001-UP |
| 19 | 07000-12055 | • O-RING (KIT) | 1 | SN: 70001-UP |
| 20 | 07001-02055 | • RING,BACK-UP (KIT) | 2 | SN: 70001-UP |
| 21 | 707-44-12180 | • RING,PISTON (KIT) | 1 | SN: 70001-UP |
| 22 | 707-39-12110 | • RING,WEAR (KIT) | 2 | SN: 70001-UP |
| 35 | 07000-12055 | O-RING (KIT) | 1 | SN: 70001-UP |
| 39 | 07000-13030 | O-RING (KIT) | 1 | SN: 70001-UP |
| 44 | 07000-13048 | O-RING (KIT) | 1 | SN: 70001-UP |
| 45 | 01010-51275 | BOLT | 5 | SN: 70001-UP |
| 46 | 01643-31232 | WASHER | 5 | SN: 70001-UP |
| 47 | 07000-13038 | O-RING (KIT) | 2 | SN: 70001-UP |
| 707-99-44180 | SERVICE KIT | 2 | SN: 75257-UP | |
| 707-98-44200 | SERVICE KIT | 2 | SN: 70001-75256 |
