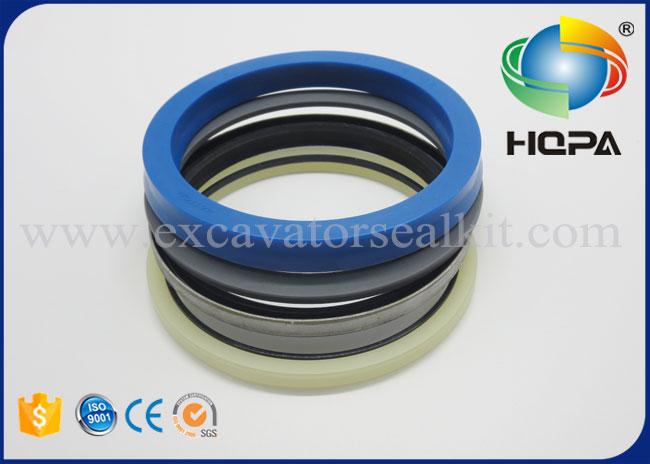

Doosan 2440-9236KT SEAL KIT ARM CYL. Fits DH 210W-7(CKD) DH 210W-7(SKD)
Doosan 2440-9236KT SEAL KIT ARM CYL. Fits DH 210W-7(CKD) DH 210W-7(SKD)
| Product Name | Doosan 2440-9236KT SEAL KIT ARM CYL. Fits DH 210W-7(CKD) DH 210W-7(SKD) | ||||||||
| Part No. | 2440-9236KT 401107-00197 401107-00197A | ||||||||
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ | ||||||||
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on | ||||||||
| Hardness | 70-90 Shore A | ||||||||
| Color | Black,Brown,Blue, White or other | ||||||||
| Size | Standard Size | ||||||||
| MOQ |
We accept trial order |
||||||||
| Packing | PP bag inside, carton box outside | ||||||||
| Delivery Time | 3-5 days after payment received(public holiday excluded) | ||||||||
| Payment |
Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
||||||||
| Port | HUAGNPU,China (Mainland) | ||||||||
| Shipping | By airplane, ship | ||||||||
| Express | Fedex,TNT,UPS,DHL | ||||||||
| Customized | OEM & ODM are welcomed | ||||||||
| Appliion | Excavator&Hydraulic Systerm | ||||||||
| Condition | 100% New | ||||||||
RELATED MODELS:
| DH 210W-7(CKD) | DH 210W-7(SKD) | SOLAR 200W-V | SOLAR 220N-V |
| DH 215-7 | DH 220LC-9E | SOLAR 210W-V | SOLAR 225LC-V |
| DH 215-9 | DH 220LC-V | SOLAR 220LC-6 | SOLAR 225NLC-V |
| DH 220LC-7 | DH 225LC-7 | SOLAR 220LC-V | SOLAR 230LC-V |

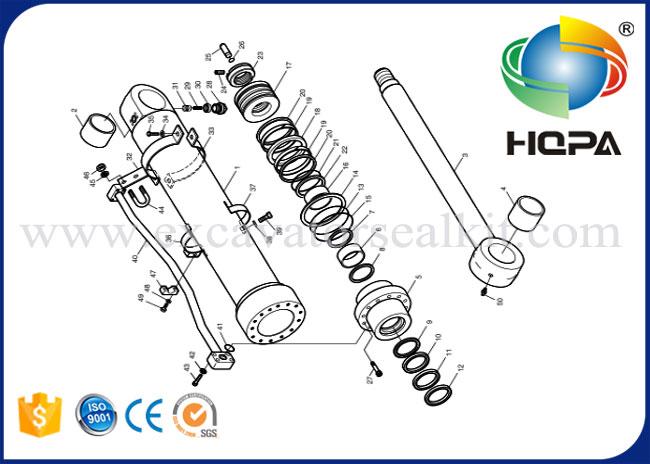

RELATION PARTS:
| NO. | PART NUMBER | NAME | QTY |
| 1 | 2440-9325C | Lower Oil Cylinder | 1 |
| 2 | 1.441-00144 | Cylinder Barrel Assembly | 1 |
| 3 | 110-00085 | Steel Bushing | 1 |
| 4 | 1.428-00122 | Rod Assembly | 1 |
| 5 | 1.180-00368 | Seal Ring | 2 |
| 6 | 110-00110 | Bushing | 1 |
| 7 | 115-00092 | Jump Ring | 1 |
| 8 | 1.180-00659 | Shock Ring | 1 |
| 9 | 1.180-00660 | U-packing | 1 |
| 10 | 115-00099 | Dust Scraping Ring | 1 |
| 11 | 115-00051 | Jump Ring | 1 |
| 12 | S8011301 | O-ring | 1 |
| 13 | 1.180-00276 | Back-up Ring | 1 |
| 14 | 1.409-00110 | Piston | 1 |
| 15 | K9004919 | Buffer Ring | 1 |
| 16 | 1.180-00549 | Sliding Seal | 1 |
| 17 | 1.180-00426 | Wear Ring | 2 |
| 18 | S5100703 | Elastic Washer | 4 |
| 2440-9236KT | Seal Kit | 1 |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
Welcom to contact us,we can provide the high quality and best price!
