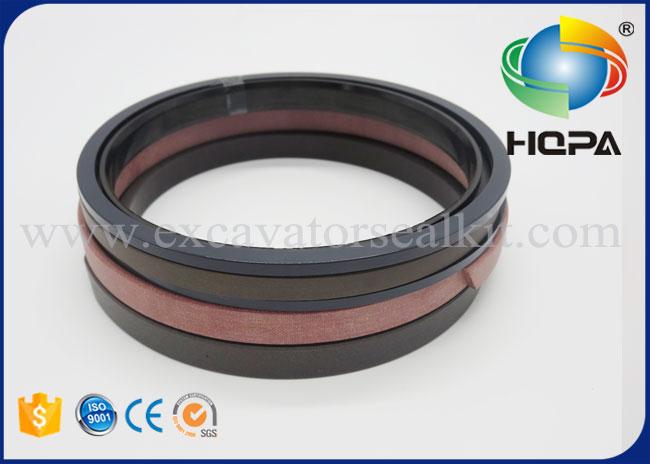

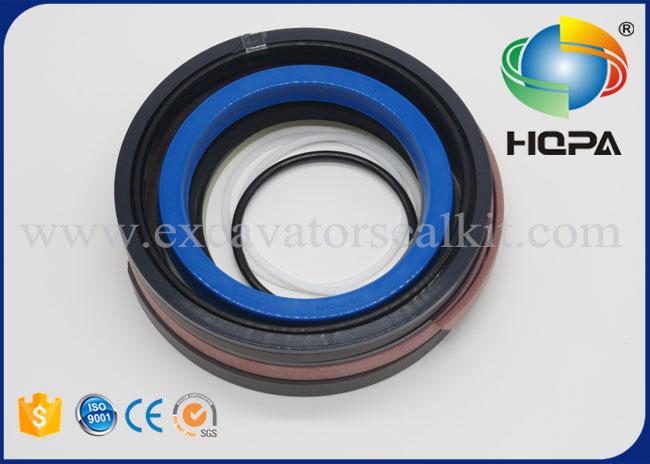

Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V
Doosan 2440-9237KT Excavator Arm Seal Kit Bucket Seal Kit For DH 220LC-V SOLAR 200W-V SOLAR 220LC-V
| Product Name | Doosan 2440-9237KT Excavator Arm Seal Kit Bucket Seal Kit For DH 220LC-V | ||||||||
| Part No. | 2440-9237KT 401107-00293 401107-00293A | ||||||||
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ | ||||||||
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on | ||||||||
| Hardness | 70-90 Shore A | ||||||||
| Color | Black,Brown,Blue, White or other | ||||||||
| Size | Standard Size | ||||||||
| MOQ |
We accept trial order |
||||||||
| Packing | PP bag inside, carton box outside | ||||||||
| Delivery Time | 3-5 days after payment received(public holiday excluded) | ||||||||
| Payment |
Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
||||||||
| Port | HUAGNPU,China (Mainland) | ||||||||
| Shipping | By airplane, ship | ||||||||
| Express | Fedex,TNT,UPS,DHL | ||||||||
| Customized | OEM & ODM are welcomed | ||||||||
| Appliion | Excavator&Hydraulic Systerm | ||||||||
| Condition | 100% New | ||||||||

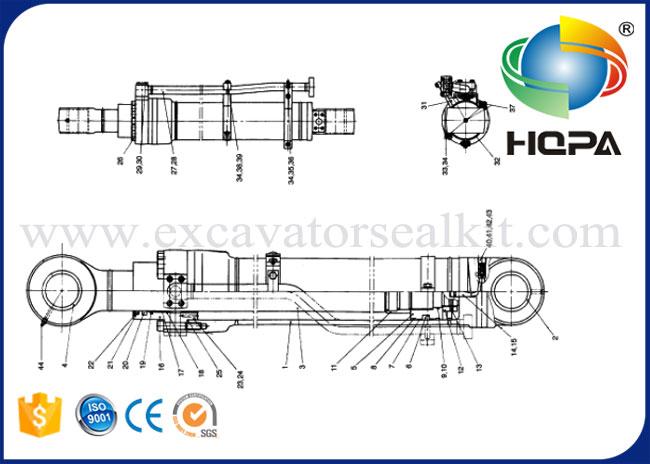

RELATION PARTS:
| NO. | PART NUMBER | NAME | QTY |
| 1 | 2440-9237 | Bucket Cylinder | 1 |
| 2 | 53U323-1 | Cylinder Barrel Assembly | 1 |
| 3 | 03B735-1 | Steel Bushing | 1 |
| 4 | 53U329-1 | Rod Assembly | 1 |
| 5 | 00R727-0 | Seal Ring | 2 |
| 6 | E8412171 | Bushing | 1 |
| 7 | 00M323-0 | Jump Ring | 1 |
| 8 | E5500240 | Shock Ring | 1 |
| 9 | E5302940 | U-packing | 1 |
| 10 | E6020240 | Dust Scraping Ring | 1 |
| 11 | 00M320-0 | Jump Ring | 1 |
| 12 | E6300581 | O-ring | 1 |
| 13 | 53U237-0 | Back-up Ring | 2 |
| 14 | 53U332-0 | Piston | 1 |
| 15 | 53A397-0 | Buffer Ring | 1 |
| 16 | E5130250 | Sliding Seal | 1 |
| 17 | 00W248-0 | Wear Ring | 2 |
| 18 | E3110102 | Elastic Washer | 1 |
| 2440-9237KT | Bucket Cylinder Seal Kit | 1 |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
Welcom to contact us,we can provide the high quality and best price!
