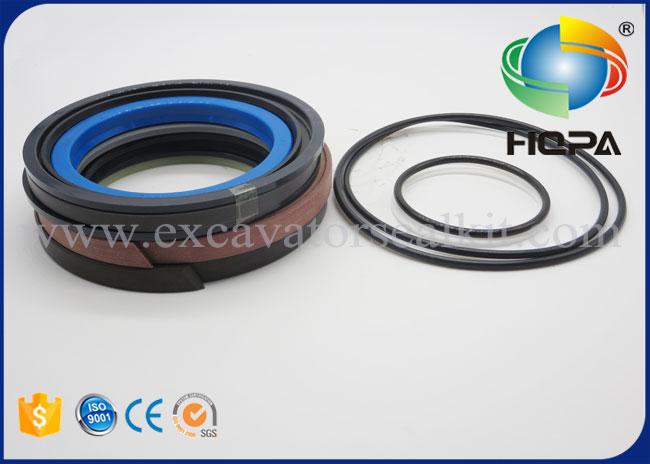

Doosan Arm CYL Seal Kit , 2440-9242KT Excavator Bucket Cylinder Seal Kit
Doosan Arm CYL Seal Kit 2440-9242KT Excavator Bucket Cylinder Seal Kit
| Product Name | Doosan Arm CYL Seal Kit 2440-9242KT Excavator Bucket Cylinder Seal Kit | ||||||||
| Part No. | 2440-9242KT 401107-00199 401107-00199A | ||||||||
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ | ||||||||
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on | ||||||||
| Hardness | 70-90 Shore A | ||||||||
| Color | Black,Brown,Blue, White or other | ||||||||
| Size | Standard Size | ||||||||
| MOQ |
We accept trial order |
||||||||
| Packing | PP bag inside, carton box outside | ||||||||
| Delivery Time | 3-5 days after payment received(public holiday excluded) | ||||||||
| Payment |
Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
||||||||
| Port | HUAGNPU,China (Mainland) | ||||||||
| Shipping | By airplane, ship | ||||||||
| Express | Fedex,TNT,UPS,DHL | ||||||||
| Customized | OEM & ODM are welcomed | ||||||||
| Appliion | Excavator&Hydraulic Systerm | ||||||||
| Condition | 100% New | ||||||||
RELATION MODELS:
| DH 130LC-V | SOLAR 130LC-V | SOLAR 140W-V | SOLAR 175LC-V |
| DH 130W-V | SOLAR 130W-V(1) | SOLAR 160W-V | SOLAR 180W-V |
| DH 150LC-7 | SOLAR 130W-V(2) | SOLAR 170LC-V | SOLAR 185W-V |
| DH 150W-7 | SOLAR 140LC-V | SOLAR 170W-V |
RELATION PARTS:
| NO. | PART NUMBER | NAME | QTY |
| 1 | 2440-9242A | Lower Oil Cylinder | 1 |
| 2 | 53U360-1 | Cylinder Barrel Assembly | 1 |
| 3 | 03U769-1 | Steel Bushing | 1 |
| 4 | 53A364-1 | Rod Assembly | 1 |
| 5 | 00R096-0 | Seal Ring | 2 |
| 6 | E8412171 | Bushing | 1 |
| 7 | 00M323-0 | Jump Ring | 1 |
| 8 | E5500240 | Shock Ring | 1 |
| 9 | E5302940 | U-packing | 1 |
| 10 | E6020240 | Dust Scraping Ring | 1 |
| 11 | 00M320-0 | Jump Ring | 1 |
| 12 | E6311561 | O-ring | 1 |
| 13 | 53A309-0 | Back-up Ring | 1 |
| 14 | 53A366-0 | Piston | 1 |
| 15 | 00C303-0 | Buffer Ring | 1 |
| 16 | E5130240 | Sliding Seal | 1 |
| 17 | 00Z101-0 | Wear Ring | 2 |
| 18 | E311012 | Elastic Washer | 8 |
| 2440-9242KT | Boom Cylinder Seal Kit | 1 |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
