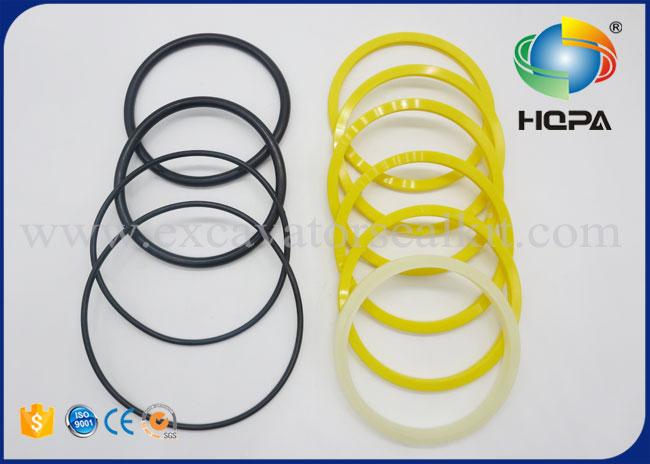

SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1
SK200 Center Joint Seal Kit For Joint ASSY,Swivel KOBELCO Excavator 24100J6668F1
| Product Name | SK200 Center Joint Seal Kit For Joint ASSY,Swivel KOBELCO Excavator 24100J6668F1 | ||||||||
| Part No. | 24100J6668F1 | ||||||||
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ | ||||||||
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on | ||||||||
| Hardness | 70-90 Shore A | ||||||||
| Color | Black,Brown,Yellow,white or other | ||||||||
| Size | Standard Size | ||||||||
| MOQ | We accept trial order | ||||||||
| Packing | PP bag inside, carton box outside | ||||||||
| Delivery Time | 3-5 days after payment received(public holiday excluded) | ||||||||
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. | ||||||||
| Port | HUAGNPU,China (Mainland) | ||||||||
| Shipping | By airplane, ship | ||||||||
| Express | Fedex,TNT,UPS,DHL | ||||||||
| Customized | OEM & ODM are welcomed | ||||||||
| Appliion | Excavator&Hydraulic Systerm | ||||||||
| Condition | 100% New | ||||||||

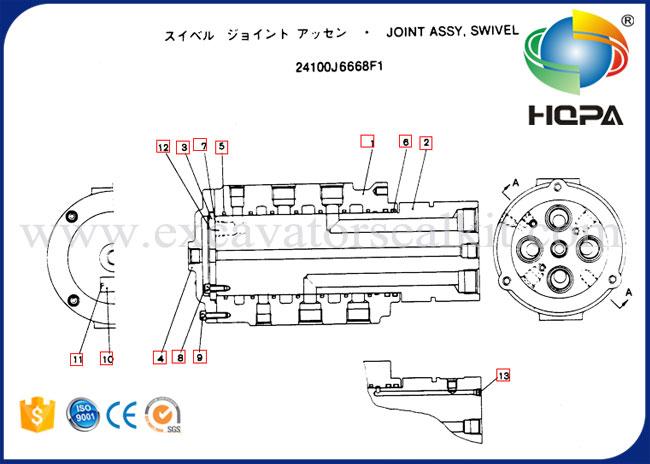

| NO. | PART NUMBER | NAME | QTY |
| 1 | 2436J188 | BODY | 1 |
| 2 | 2436J189 | STEM | 1 |
| 3 | 2414T2712 | PLATE, THRUST | 1 |
| 4 | 2414P6082 | COVER | 1 |
| 5 | 2445Z917 | SEAL ASSY | 7 |
| 6 | ZD11P11000 | O-Ring -- ID 109.6 ± 0.91 x OD 120mm | 2 |
| 7 | ZD11G12500 | O-Ring -- ID 124.4 ± 1.01 x OD 130mm | 1 |
| 8 | ZS23C08020 | M08x1.25x20mm | 2 |
| 9 | ZS23C08030 | M08x1.25x30mm | 4 |
| 10 | 2432T2293 | NAME PLATE | 1 |
| 11 | 2420Z1036D3 | 2.2x4.6mm | 2 |
| 12 | ZE82T08000 | 1/2" PT | 2 |
| 13 | ZE82T02000 | Pipe, 1.25" PT | 1 |
| 24100J6668F1 | JOINT ASSY, SWIVEL | 1 |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Welcom to contact us,we can provide the high quality and best price!
