708-3S-00511KT 708-3S-00511 Hydraulic Main Pump Seal Kit For Komatsu PC35MR-2
708-3S-00511KT 708-3S-00511 Hydraulic Main Pump Seal Kit for Komatsu PC35MR-2
1.Product Description:
|
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 708-3S-00511KT 708-3S-00511 Hydraulic Main Pump Seal Kit for Komatsu PC30MR-2 PC35MR-2 |
| Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
| Part No. | 708-3S-00511KT 708-3S-00511 7083S00511KT 7083S00511 Hydraulic Pump Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC30MR-2 PC35MR-2 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 708-3S-00511KT 708-3S-00511
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC30MR-2 PC35MR-2

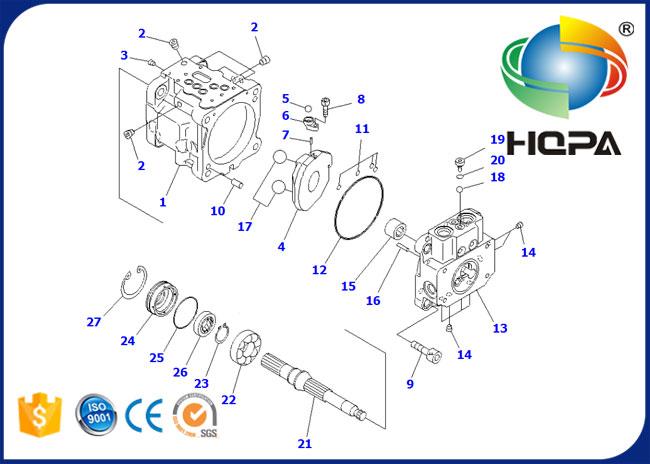

4.Related parts
| Part No | Parts name | Part No | Parts name |
| 708-3S-00511 | PUMP ASS'Y | 708-3S-01511 | PUMP SUB ASS'Y |
| 708-1S-04252 | CHN SUB ASS'Y | 708-1S-13411 | CAM,ROCKER |
| 04260-01270 | BALL | 708-3S-14140 | SPACER |
| 708-1S-13420 | PIN | 01252-60616 | BOLT |
| 01252-61235 | BOLT | 04020-01024 | PIN |
| 07000-11006 | O-RING | 07000-12125 | O-RING |
| 708-3S-04250 | CAP SUB ASS'Y | 708-21-12760 | BEARING |
| 720-68-19610 | PIN | 708-1S-13430 | BALL |
| 708-7T-16460 | BALL | 708-3S-11530 | PLUG |
| 07000-11010 | O-RING | 708-3S-12121 | SHAFT |
| 708-3S-12210 | BEARING | 708-21-12840 | RING,SNAP |
| 708-3S-12140 | HOLDER | 207-09-11140 | O-RING |
| 708-3S-12150 | SEAL,OIL | 04065-06220 | RING |
| 708-3S-00511 | PUMP ASS'Y | 708-3S-01511 | PUMP SUB ASS'Y |
| 708-3S-13130 | BLOCK,CYLINDER | 708-3S-13230 | PLATE,VALVE |
| 708-3S-13160 | WASHER | 708-3S-13430 | SPRING |
| 04065-03515 | RING,SNAP | 708-3S-13370 | GUIDE,RETAINER |
| 708-1S-13380 | PIN | 708-3S-13410 | RETAINER,SHOE |
| 708-1S-13520 | PISTON SUB ASS'Y | 708-3S-14240 | PLUG |
| 708-1S-14220 | PLUG | 07002-11223 | O-RING |
| 708-3S-14250 | PISTON SUB ASS'Y | 708-1S-14241 | SPRING |
| 708-3S-00511 | PUMP ASS'Y | 708-3S-03562 | VALVE ASS'Y |
| 708-3S-04490 | SLEEVE SUB ASS'Y | 01582-11210 | NUT |
| 705-41-83213 | BRACKET ASS'Y | 705-41-83223 | BRACKET |
| 705-40-83630 | BUSHING,PLANE | 705-40-83640 | BUSHING,PLANE |
| 705-40-83720 | PLATE,SIDE | 705-40-83760 | SEAL |
| 705-40-80881 | PLATE | 705-40-80760 | SEAL |
| 705-41-20C70 | CARRIER ASS'Y | 705-41-20C80 | CARRIER |
| 705-41-20J20 | GEAR,DRIVE | 705-41-20H10 | GEAR,DRIVEN |
| 04020-00514 | PIN,DOWEL | 705-40-17E70 | HOUSING ASS'Y |
| 705-40-17E80 | HOUSING | 705-40-17J50 | GEAR,DRIVE |
| 705-40-17H10 | GEAR,DRIVEN | 705-41-83720 | BOLT |
| 01643-51032 | WASHER | 708-3S-00511 | PUMP ASS'Y |
| 708-1T-19210 | COUPLING | 700-30-63140 | RING,SNAP |
| 708-1T-19230 | RING | 07000-12014 | O-RING |
| 07000-12060 | O-RING | 01252-60825 | BOLT |
| 01643-30823 | WASHER | 708-3S-15810 | PLUG |
| 708-3S-15820 | NUT | 07000-11003 | O-RING |
| 07001-01003 | RING,BACK-UP | 20B-27-11210 | BLEEDER |
Welcome to contact us, we can provide high quality and the best price!
