708-1L-00430 708-1L-00431 Hydraulic Main Pump Seal Kit For Komatsu PC130-6
Price:
negotiation
MOQ:
Negotiable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
HQPA/OEM
Product Description

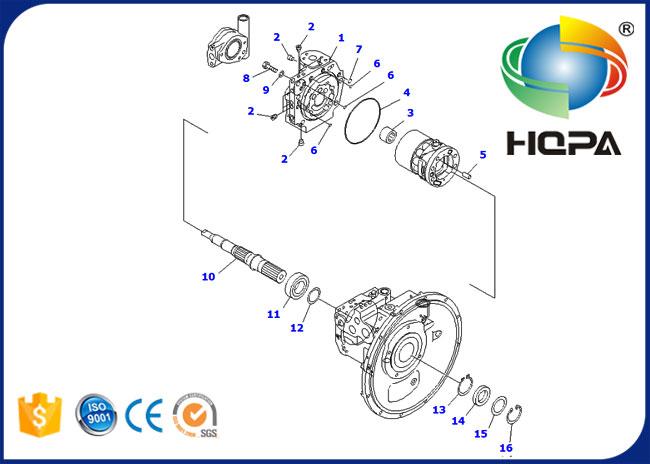

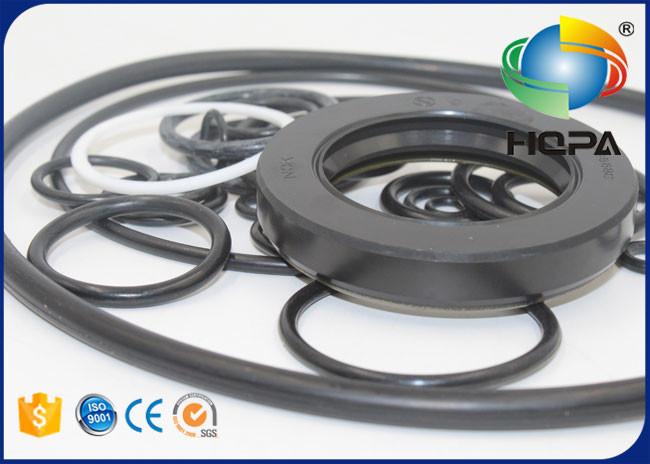

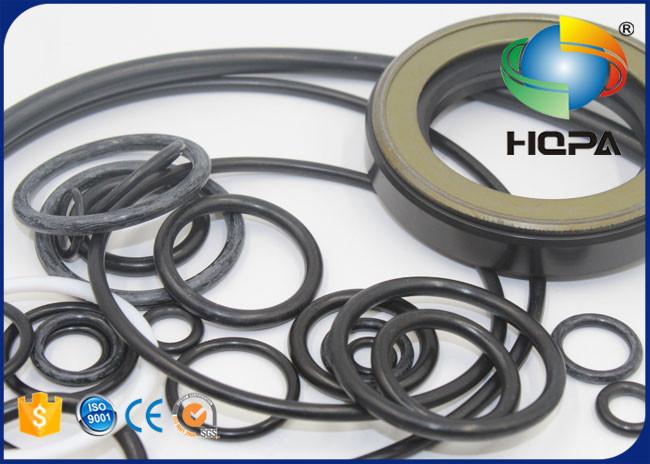

708-1L-00430 708-1L-00431 Hydraulic Main Pump Seal Kit for Komatsu PC130-6
1.Product Description:
|
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 708-1L-00430 708-1L-00431 Hydraulic Main Pump Seal Kit for Komatsu PC100-6 PC120-6 PC130-6 |
| Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
| Part No. | 708-1L-00430KT 708-1L-00431KT 708-1L-00430 708-1L-00431 7081L00430KT 7081L00431KT 7081L00430 7081L00431 Hydraulic Pump Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC100-6 PC100-6E PC100-6S PC120-6H PC120-6E PC120-6 PC120-6S PC120-6J PC130-6 PC130-6G PC130-6E |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
| Part Number: 708-1L-00430 708-1L-00431 Group: Hydraulic Main Pump Seal Kit Fit for model: Komatsu PC100-6 PC100-6E PC100-6S PC120-6H PC120-6E PC120-6 PC120-6S PC120-6J PC130-6 PC130-6G PC130-6E |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 708-1L-00431 | PUMP ASS'Y,(SEE FIG.Y1600-41A0) | 708-1L-00430 | PUMP ASS'Y,(SEE FIG.Y1600-41A0) |
| 07030-03034 | BREATHER | 07005-03016 | GASKET |
| 07040-12412 | PLUG | 07002-02434 | O-RING |
| 07040-11209 | PLUG | 07002-01223 | O-RING |
| 203-01-61170 | CAGE | 203-01-61190 | SHAFT |
| 06045-06014 | BEARING | 04065-01104 | RING,SNAP |
| 04064-07025 | RING | 01010-51235 | BOLT |
| 01643-31232 | WASHER | 20Y-62-23461 | ELBOW |
| 07002-01423 | O-RING | 01010-51040 | BOLT |
| 01643-31032 | WASHER | 01010-51050 | BOLT |
| 205-917-1610 | COLLAR | 708-1L-00431 | PUMP ASS'Y |
| 01010-81085 | BOLT | 01010-81080 | BOLT |
| 01643-51032 | WASHER | 07000-02070 | O-RING |
| 07000-02018 | O-RING | 708-2L-29140 | COUPLING |
| 708-2L-29211 | COLLAR | 702-21-07010 | VALVE ASS'Y |
| 708-2L-04171 | BLOCK ASS'Y | 709-32-11760 | O-RING |
| 07040-11007 | PLUG | 07002-11023 | O-RING |
| 01252-60865 | BOLT | 203-60-62220 | BOLT |
| 07235-10210 | ELBOW | 708-2L-23950 | O-RING |
| 07002-01423 | O-RING | 07230-20210 | UNION |
| 01582-11008 | NUT | 708-1L-29310 | HOSE |
| 708-2L-29410 | HOSE | 708-2L-23960 | O-RING |
| 700-93-11320 | O-RING | 07000-B2011 | O-RING |
| 07000-02011 | O-RING | 708-1L-29330 | ELBOW |
| 07002-11423 | O-RING | 708-1L-29340 | ORIFICE |
| 708-2L-04290 | BLOCK ASS'Y | 708-2L-23970 | O-RING |
| 708-2L-23920 | O-RING | 708-1L-01411 | PUMP SUB ASS'Y |
| 708-2L-04141 | BLOCK ASS'Y,FRONT | 720-68-19610 | PIN |
| 04065-04818 | RING,SNAP | 708-2L-23131 | SEAT |
| 708-2L-33160 | SPRING | 708-7L-13140 | SEAT |
| 708-2L-23351 | GUIDE,RETAINER | 708-2L-23360 | PIN |
| 708-2L-33340 | RETAINER,SHOE | 708-2L-33310 | PISTON SUB ASS'Y |
| 708-2L-04361 | CRADLE ASS'Y,FRONT | 04020-01228 | PIN |
| 07000-B1009 | O-RING | 01252-61230 | BOLT |
| 708-2L-24514 | PISTON,SERVO | 708-2L-24670 | SEAL |
| 708-2L-24570 | SLIDER | 708-2L-24560 | STOPPER |
| 07000-B3040 | O-RING | 07001-03040 | RING,BACK-UP |
| 708-2L-24522 | COVER | 01252-61445 | BOLT |
| 113-43-31380 | WASHER | 708-2L-24640 | BOLT |
| 708-2L-24650 | NUT | 708-2L-24630 | SPRING |
| 708-2L-24530 | SCREW | 708-2L-24620 | O-RING |
| 708-2L-24660 | WASHER | 708-2L-24590 | NUT |
| 708-1W-28920 | O-RING | 07000-B1009 | O-RING |
| 07000-01009 | O-RING | 704-28-26240 | BODY |
| 704-28-00420 | HOUSING | 704-28-26610 | GEAR,DRIVE |
| 704-28-26710 | GEAR,DRIVEN | 01252-31030 | BOLT |
| 01643-51032 | WASHER | 04020-00820 | PIN |
| 704-28-02751 | STRAINER | 07002-02434 | O-RING |
| 700-22-11410 | O-RING | 708-2L-24680 | SEAL |
| 708-1W-25630 | SEAL | 708-1W-28910 | O-RING |
| 708-2L-24680 | SEAL | 708-1W-25630 | SEAL |
| 708-1W-28910 | O-RING | 708-1L-00431 | PUMP ASS'Y,(SEE FIG.Y1600-41A0) |
| 708-1L-00430 | PUMP ASS'Y,(SEE FIG.Y1600-41A0) | 07030-03034 | BREATHER |
| 07005-03016 | GASKET | 07040-12412 | PLUG |
| 07002-02434 | O-RING | 07040-11209 | PLUG |
| 07002-01223 | O-RING | 203-01-61170 | CAGE |
| 203-01-61190 | SHAFT | 06045-06014 | BEARING |
| 04065-01104 | RING,SNAP | 04064-07025 | RING |
| 01010-51235 | BOLT | 01643-31232 | WASHER |
| 20Y-62-23461 | ELBOW | 07002-01423 | O-RING |
| 01010-51040 | BOLT | 01643-31032 | WASHER |
| 01010-51050 | BOLT | 205-917-1610 | COLLAR |
Welcome to contact us, we can provide high quality and the best price!
