708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit For Komatsu PC130-7
Price:
negotiation
MOQ:
Negotiable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
HQPA/OEM
Product Description

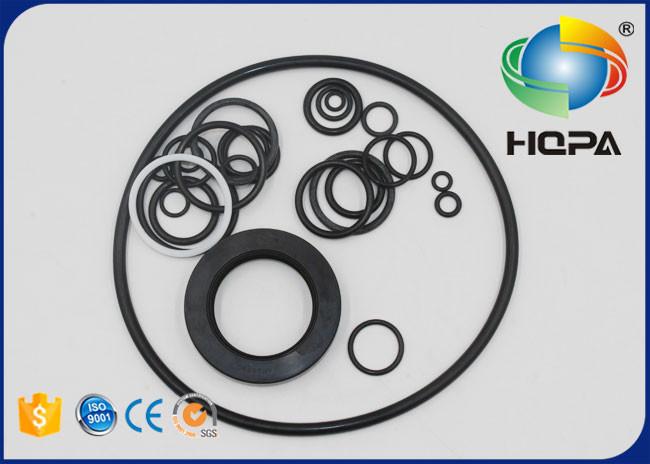

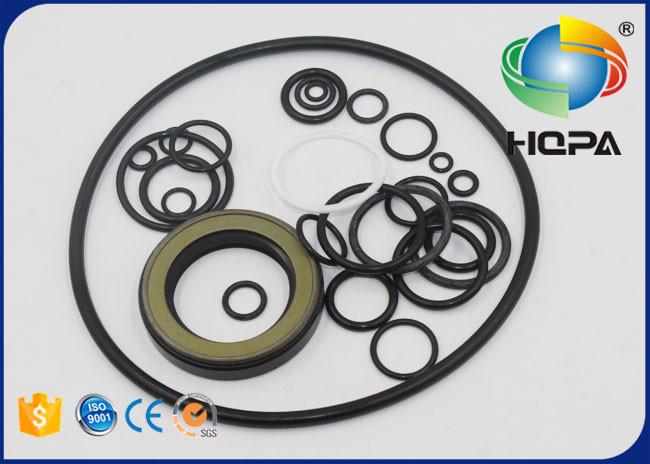

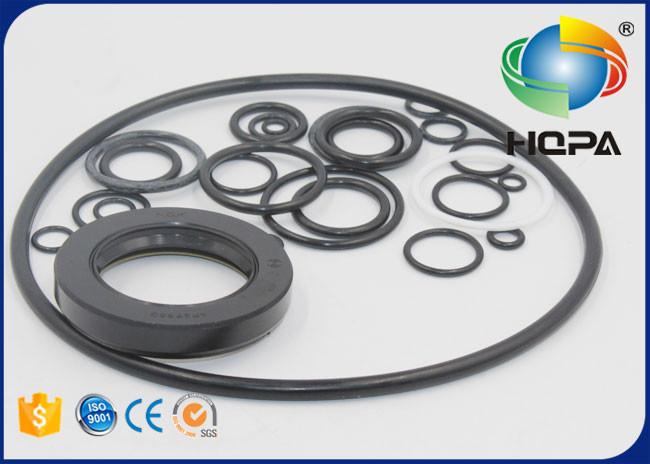

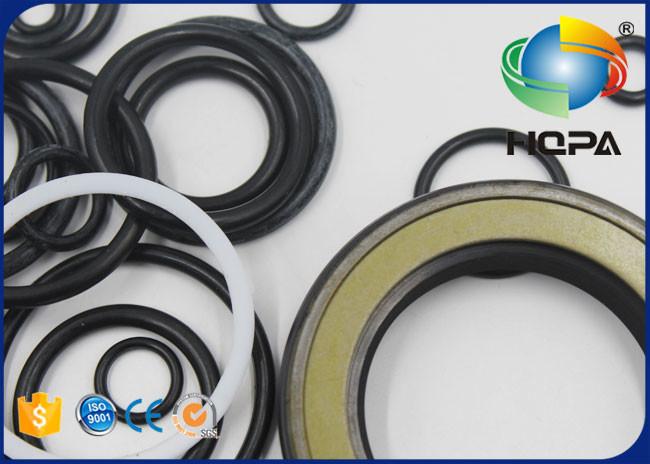

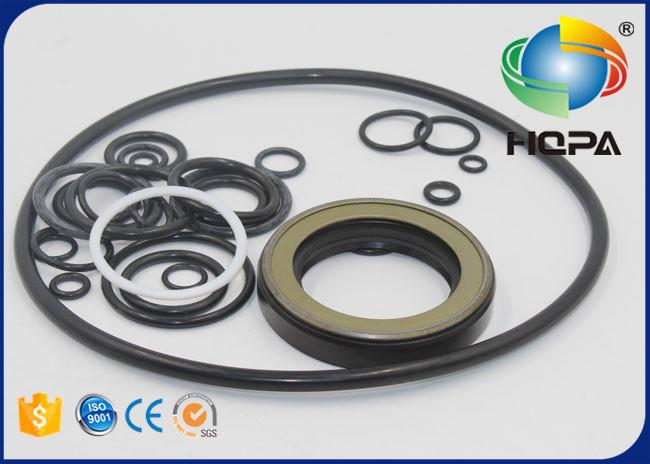

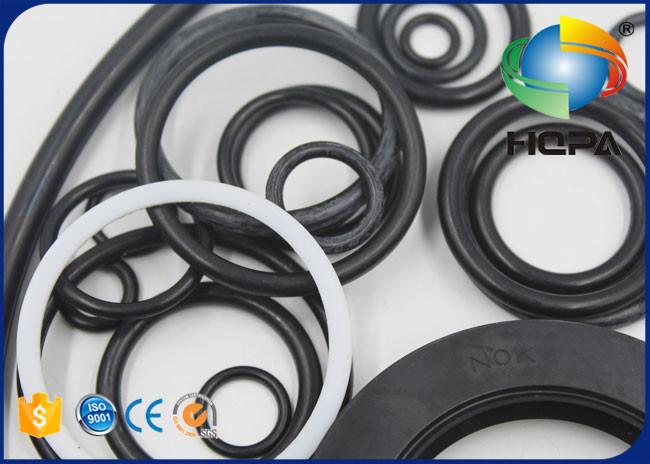

708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit for Komatsu PC130-7
1.Product Description:
|
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 708-1L-00650KT 708-1L-00650 Hydraulic Main Pump Seal Kit for Komatsu PC110-7 PC130-7 PC130-7K PC130F-7 |
| Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
| Part No. | 708-1L-00650KT 708-1L-00650 7081L00650KT 7081L00650 Hydraulic Pump Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC110-7 PC130-7 PC130-7K PC130F-7 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 708-1L-00650KT 708-1L-00650
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC110-7 PC130-7 PC130-7K PC130F-7

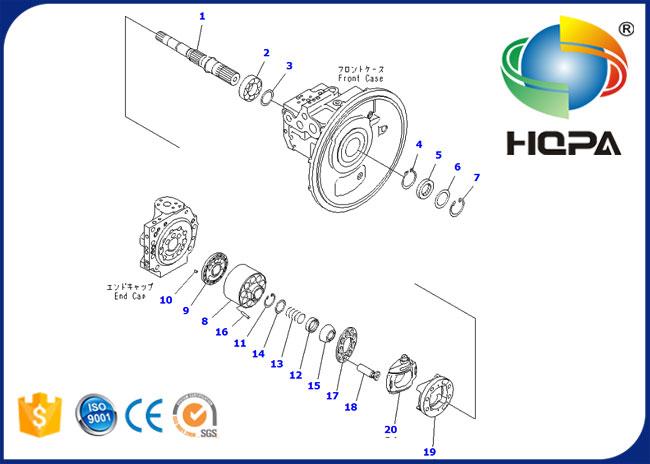

4.Related parts
| Part No | Parts name | Part No | Parts name |
| 708-1L-00650 | PUMP ASS'Y | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-08A0. | |
| 708-1L-01650 | PUMP SUB ASS'Y | 708-2L-04240 | CHN ASS'Y,FRONT |
| 07044-12412 | PLUG | 07002-62434 | O-RING |
| 720-68-19870 | PLUG | 07002-61223 | O-RING |
| 04530-11018 | BOLT,EYE | 708-8E-16150 | PLUG |
| 07002-61023 | O-RING | 708-8H-11530 | PLUG |
| 07002-61423 | O-RING | 708-1L-00650 | PUMP ASS'Y |
| 708-1L-04150 | CAP ASS'Y,END | 708-2L-32260 | BEARING |
| 07000-B5165 | O-RING | 04020-01228 | PIN |
| 07000-B2010 | O-RING | 07000-B2012 | O-RING |
| 07000-B2014 | O-RING | 708-2L-25480 | FILTER |
| 01010-61450 | BOLT | 01643-31445 | WASHER |
| 07040-12414 | PLUG | 07002-62434 | O-RING |
| 708-1L-01650 | PUMP SUB ASS'Y | 708-2L-32110 | SHAFT,FRONT |
| 708-2L-32150 | BEARING | 708-2E-05040 | WASHER KIT |
| 708-25-12790 | RING,SNAP | 708-25-52861 | SEAL,OIL |
| 708-2L-22160 | SPACER | 04065-06825 | RING,SNAP |
| 708-2L-06170 | BLOCK ASS'Y,FRONT | 720-68-19610 | PIN |
| 04065-04818 | RING,SNAP | 708-2L-23131 | SEAT |
| 708-2L-33160 | SPRING | 708-7L-13140 | SEAT |
| 708-2L-23351 | GUIDE,RETAINER | 708-2L-23360 | PIN |
| 708-2L-33350 | RETAINER,SHOE | 708-2L-33310 | PISTON SUB ASS'Y |
| 708-2L-04361 | CRADLE ASS'Y | 04020-01228 | PIN |
| 07000-B1009 | O-RING | 01252-61230 | BOLT |
| 708-2L-24514 | PISTON,SERVO | 708-2L-24670 | SEAL |
| 708-2L-24570 | SLIDER | 708-2L-24560 | STOPPER |
| 07000-B3040 | O-RING | 07001-03040 | RING,BACK-UP |
| 708-2L-24522 | COVER | 01252-61445 | BOLT |
| 113-43-31380 | WASHER | 708-2L-24640 | BOLT |
| 708-2L-24650 | NUT | 708-2L-24630 | SPRING |
| 708-2L-24531 | SCREW | 07002-63634 | O-RING |
| 708-2L-24661 | WASHER | 708-2L-24590 | NUT |
| 07002-63034 | O-RING | 07000-B1009 | O-RING |
| 708-2L-24680 | SEAL | 07002-62434 | O-RING |
| 02789-00210 | PLUG | 02896-61008 | O-RING |
| 702-21-07311 | VALVE ASS'Y,EPC | 708-2L-04291 | BLOCK ASS'Y |
| 708-2L-23970 | O-RING | 07040-11007 | PLUG |
| 07002-61023 | O-RING | 01252-60865 | BOLT |
| 203-60-62220 | BOLT | 21W-62-43960 | ELBOW |
| 07002-61423 | O-RING | 02896-61008 | O-RING |
| 02781-0021D | UNION | 01582-11008 | NUT |
| 708-1L-29361 | HOSE | 708-1L-29350 | HOSE |
| 708-2L-23960 | O-RING | 07000-B2011 | O-RING |
| 8255-62-4360 | ELBOW | 708-1L-29340 | ORIFICE |
| 20Y-62-22790 | BAND, RED | 20Y-62-22830 | BAND, WHITE |
Welcome to contact us, we can provide high quality and the best price!
