708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit For Komatsu PC350-7
Price:
negotiation
MOQ:
Negotiable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
HQPA/OEM
Product Description

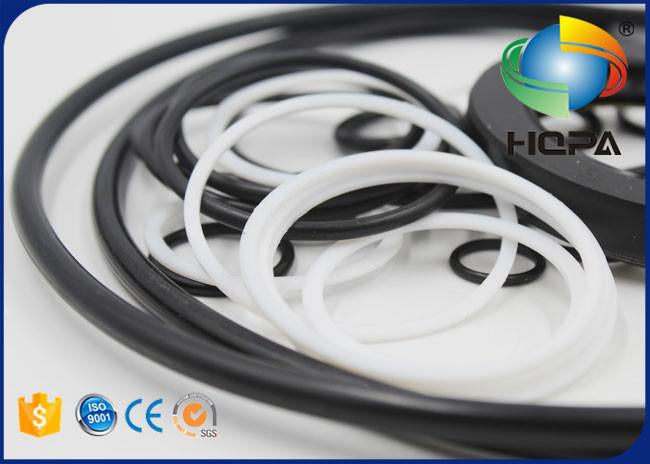

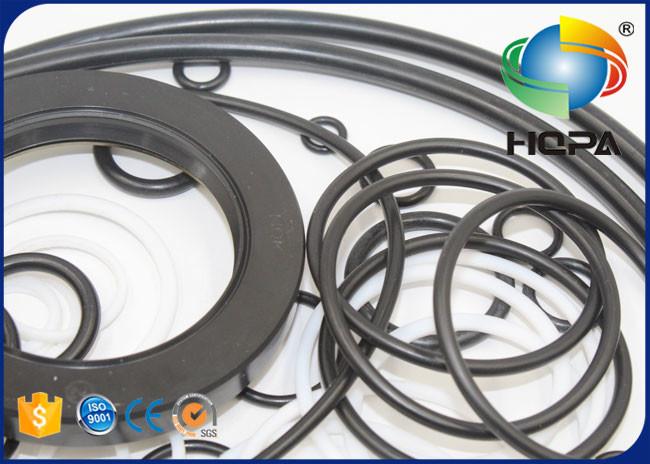

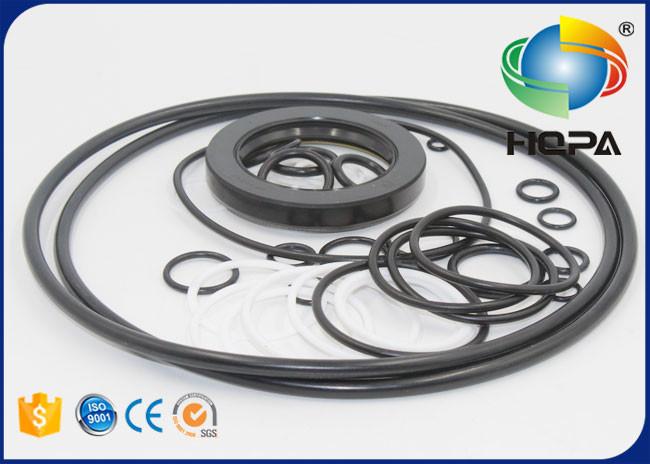

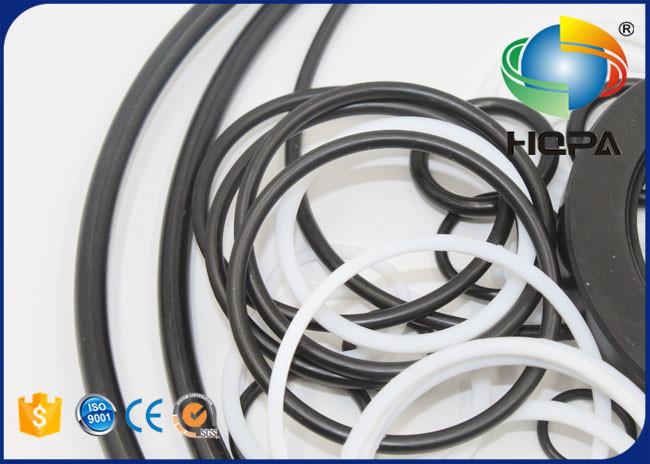

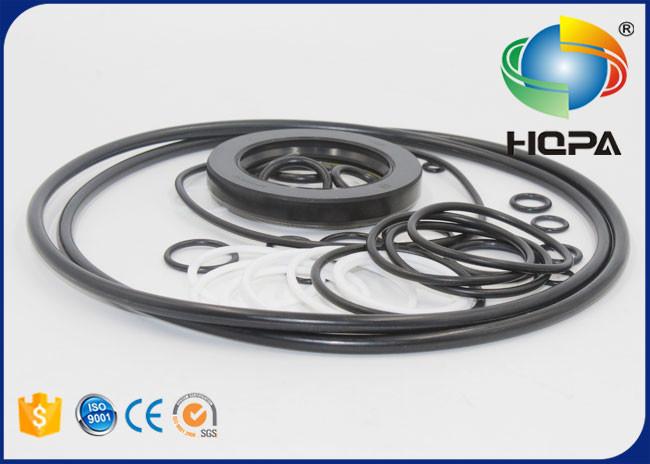

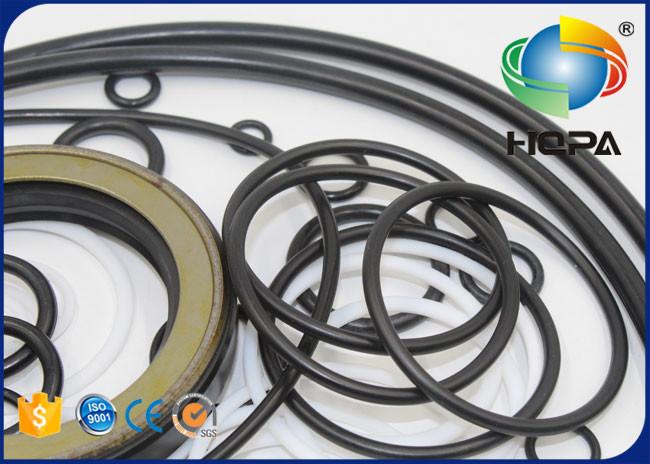

708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
1.Product Description:
|
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7 |
| Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
| Part No. | 708-2G-00022KT 708-2G-00023KT 708-2G-00022 708-2G-00023 7082G00022KT 7082G00023KT 7082G00022 7082G00023 Hydraulic Pump Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 708-2G-00022 708-2G-00023 |

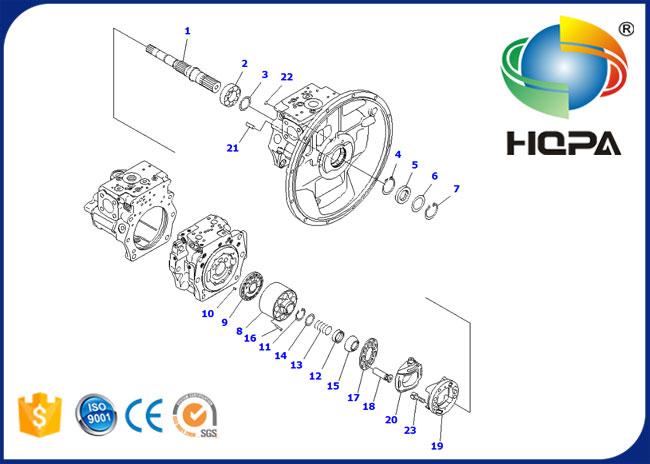

4.Related parts
| Part No | Parts name | Part No | Parts name |
| 708-2G-00023 | PUMP ASS'Y | 708-2G-00022 | PUMP ASS'Y |
| 708-2G-01021 | PUMP SUB ASS'Y | 708-2G-04115 | CHN ASS'Y, FRONT |
| 708-2G-04112 | CHN ASS'Y, FRONT | 708-8E-16150 | PLUG |
| 07002-61023 | O-RING | 708-2L-23920 | O-RING |
| 07040-12414 | PLUG | 07002-62434 | O-RING |
| 708-1W-28910 | O-RING | 708-2L-25650 | ORIFICE |
| 04530-01222 | BOLT,EYE | 07044-12412 | PLUG |
| 07002-32434 | O-RING | 708-2G-00024 | PUMP ASS'Y |
| 708-2G-00022 | PUMP ASS'Y | 708-2G-01021 | PUMP SUB ASS'Y |
| 708-2G-12111 | SHAFT | 708-2G-12251 | BEARING |
| 708-2G-05010 | WASHER KIT | 708-1F-12270 | RING, SNAP |
| 708-2G-15240 | PLUG | 07000-B2012 | O-RING |
| 07000-B2050 | O-RING | 708-2G-15310 | RING |
| 708-2G-14190 | COVER | 01580-10806 | NUT |
| 708-2L-35540 | NUT | 708-2G-15330 | RING ,WIRE |
| 01252-61645 | BOLT | 708-2G-14310 | SCREW |
| 07000-B3038 | O-RING | 708-2G-15230 | RING BACK UP |
| 708-2L-35540 | NUT | 708-2G-14170 | COVER |
| 07000-B2050 | O-RING | 708-2G-15310 | RING |
| 01252-61645 | BOLT | 708-2G-14120 | SLIDER |
| 708-2G-03510 | VALVE ASS'Y | 708-2G-03520 | PISTON ASS'Y SERVO |
| 708-2G-15320 | SEAL | 708-2G-15221 | PLUG |
| 708-2L-35760 | BALL | 708-2L-35770 | PLUG |
| 708-2L-35690 | SEAL | 708-2L-35170 | PIN |
| 708-2G-15211 | SPOOL | 708-2G-15290 | RETAINER |
| 708-2G-15140 | SEAT | 708-2G-15270 | SPRING |
| 708-2G-15280 | SPRING | 708-2G-15151 | SEAT |
| 708-2G-15150 | SEAT | 708-2G-15250 | SPRING |
| 708-2G-14340 | SCREW | 07000-B3038 | O-RING |
| 708-2G-15230 | RING BACK UP | 708-2G-15260 | SEAL |
| 708-2G-15240 | PLUG | 07000-B2012 | O-RING |
| 07000-B2050 | O-RING | 708-2G-15310 | RING BACK UP |
| 708-2G-14190 | COVER | 01580-10806 | NUT |
| 708-2L-35540 | NUT | 708-2G-15330 | RING WARE |
| 708-2G-12151 | BEARING | 07000-A5185 | O-RING |
| 04020--01434 | PIN | 07000-B2012 | O-RING |
| 01010-61655 | BOLT | 01643-51645 | WASHER |
| 07000-B2014 | O-RING | 708-2L-25480 | FILTER |
| 708-8E-16150 | PLUG | 07002-61023 | O-RING |
| 708-2L-23920 | O-RING | 708-2G-14210 | SCREW |
| 07000-B3038 | O-RING | 708-2G-15230 | RING BACK UP |
| 708-2L-35540 | NUT | 708-2G-14170 | COVER |
| 07000-B2050 | O-RING | 708-2G-15310 | RING BACK UP |
| 01252-61645 | BOLT | 708-2L-35530 | PLUG |
| 07002-61023 | O-RING | 708-2L-23920 | O-RING |
| 702-21-55600 | PILOT VALVE | 702-21-55901 | PILOT VALVE |
| 01252-60635 | BOLT | 20Y-62-22790 | BAND, RED |
| 702-21-55701 | PILOT VALVE | 702-21-55700 | PILOT VALVE |
| 702-16-55260 | BOLT | 20Y-62-22830 | BAND, WHITE |
| 702-21-55400 | VALVE ASS'Y | 702-21-55920 | PLUG |
| 702-21-55930 | PISTON | 702-21-55940 | SPRING |
| 702-21-55951 | BLOCK | 702-21-55950 | BLOCK |
| 07002-12034 | O-RING | 07000-11008 | O-RING |
| 722-12-18240 | O-RING | 01252-60530 | BOLT |
| 708-2G-03420 | PLUG SUB ASS'Y | 708-2G-15670 | PLUG |
| 07000-B1009 | PLUG | 07000-B1008 | O-RING |
| 07001-01008 | RING | 07000-B1007 | O-RING |
| 07001-01007 | RING,BACK-UP | 07002-61423 | O-RING |
| 708-2L-23950 | O-RING | 01643-51232 | WASHER |
| 01010-81220 | BOLT | 08193-21012 | CLIP |
| 708-2L-35311 | SLEEVE | 708-2L-24680 | SEAL |
| 708-2G-15412 | SPOOL | 708-2L-28540 | PISTON |
| 708-2L-35360 | SLEEVE | 708-2L-35260 | SLEEVE |
5. Related models:
| PC300-7-AA | PC300LC-7 | PC300LC-7-BA | PC300-7 | PC350LC-7 |
| PC350-7-AA | PC350LC-7-BA | PC350-7 | PC750SE-7 | PC210-6-A1 |
| PC450LC-8R | PC340LC-7K | PC650-6A | PC600LC-6A-KJ | D40PL-3 |
| PC228USLC-1 | PC30-6 | D40PF-3A | PC15-3 | PC200LC-3 |
| PC300-7 | PC30MR-1 | D155A-6R | PC800-8R1 | D31PL-20 |
| PC300-5C | PC120-6H | PC120-5Z | PC03-2 | PC240LC-3K |
| PC650LC-5 | PW220-7E0 | PC20MR-2-A | D60PL-8 | PW180-10 |
| PC07-2 | PC150HD-5K | PC100L-1 | PC220-1 | PC190LC-8 |
| D60O-8 | D75A-1 | PC300LC-5 | PC88MR-8 | PC130-6K |
| PC350LL-7E0 | PC1600-1 | PC138USLC-10 | PC95-1 | D85A-21-E |
| D40AM-3 | PC228US-3N | PC40R-8 | PW100-1 | PC200LL-7L |
| PC130-5S | PC600LC-8R | PC30R-7 | D20S-6 | PC40-1 |
