Product Name: AB 1771-PS7

120/220V AC Power Supply with User Power (Cat. No. 1771-PS7 Series C)

Mount the 1771PS7 and Connect Backplane Power

Before mounting the 1771-PS7, you should:

mount the I/O chassis. See the Universal I/O Chassis Installation Data (1771-2.210) for information on mounting the I/O chassis.

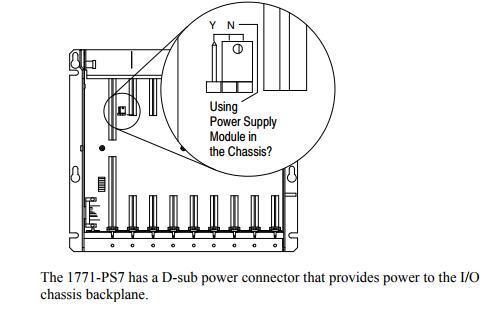

set the power supply configuration jumper. The 1771-PS7 is an external power supply. Set the configuration jumper on the I/O chassis to the N position.

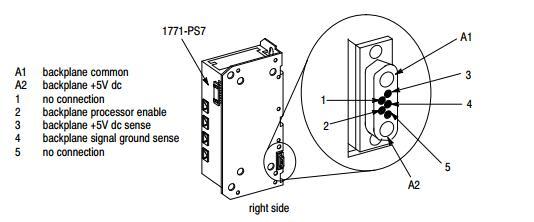

The 1771-PS7 has a D-sub power connector that provides power to the I/O chassis backplane.

Attaching to PanelMounted I/O Chassis

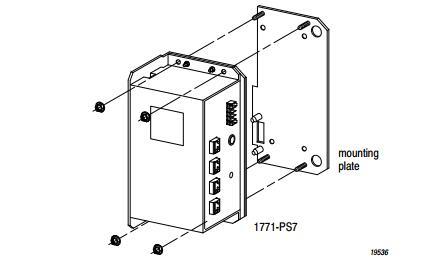

To attach the 1771-PS7 to a panel-mounted chassis: 1. Remove the four #10-32 nuts and separate the mounting plate from the power supply.
