22A-D2P3N104 22AD2P3N104 Allen Bradley AB PowerFlex 4 AC Drive

⇒ Click here for good price 22A-D2P3N104

Product Details

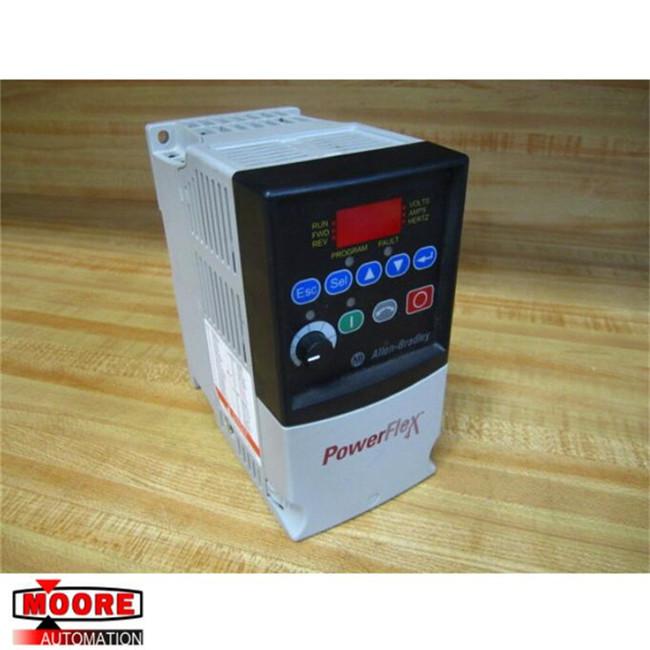

The AB 22A-D2P3N104 is a PowerFlex 4 3-phase air-cooled AC drive that has an A-size frame and it does not have a CE-compliant filter. It does have an integral keypad for input and an LED display with a fixed terminal connection. Also present in this drive is a built-in RS-485 communication port. The 22A-D2P3N104 drive can only be mounted with a panel mount and it has IP20 and open-type enclosure ratings. The approximate measurements of this drive are 5.98 x 3.15 x 5.35 inches. The voltage ratings of the 22A-D2P3N104 drive are 100 to 120, 200 to 240, and 380 to 480 Volts AC for input as well as 480 Volts AC for output. Its line frequency is 50 to 60 Hertz, its Hp rating is 1, its wattage is 0.75 kW, and its power factor is 0.95. This drive also has resistive ratings of 3 A at 30 Volts DC or 125 to 240 Volts AC and inductive ratings of 0.5A, 3 A at 30 Volts DC or 125 to 240 Volts AC, as well as an amperage rating of 2.3A.

The maximum operating altitude of the 22A-D2P3N104 drive is 1000 meters (at any higher altitude, it will start to derating) and it has a storage temperature of -40 to 85 degrees Celsius. Its non-condensing relative humidity is 0 to 95%, an operating shock is a 15g peak for 11 millimeters, and an operating vibration is a 1g peak at 5 to 2000 Hertz. The 22A-D2P3N104 drive features integral RS-485 communication and is compatible with PC tools that assist with monitoring, troubleshooting, and programming. Such PC tools include Drive Explorer and Drive Tool SP. 22A-D2P3N104 features powerful motor speed in a space-saving design, making it ideal for machine level speed control. 22A-D2P3N104 meets the demands of global OEMs with application versatility and ease of use. This PowerFlex 4 drive is equipped with sensorless vector performance, which allows the drive to automatically provide auto-boost and slip compensation. With this feature, the 22A-D2P3N104 is also able to provide exceptional speed regulation and high torque levels across the speed range of the drive, even as loading increases.
