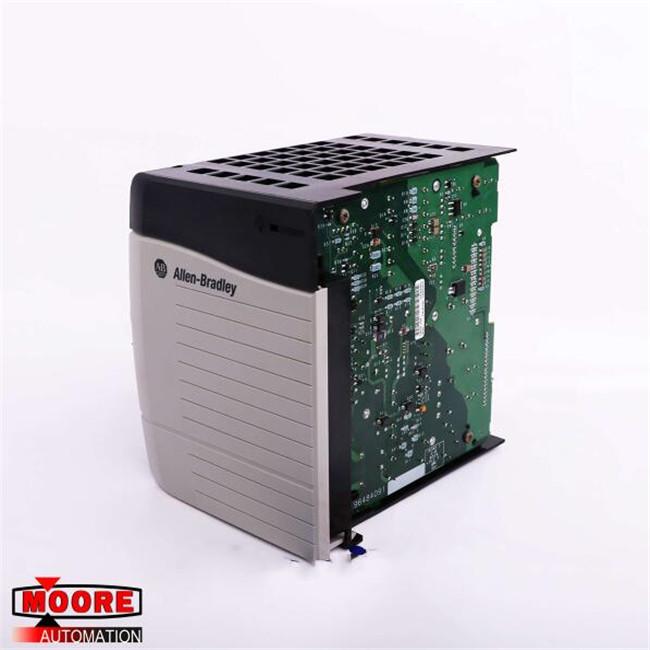

1756-PA75 1756PA75 AB AB ControlLogix AC Power Supply

⇒ Click here for good price 1756-PA75

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1756-PA75 Standard AC Power Supply comes with 120 to 240 Volts AC nominal input voltage. This power supply is part of the ControlLogix power supply series and it provides built-in overcurrent protection which is user-supplied at a maximum rate of 15 A. The 1756-PA75 power supply also has a type of reinforced insulation tested at 3,500 Volts DC for 60 seconds. The maximum transformer load of this power supply is 100VA. The voltage isolation of the 1756-PA75 is 250 Volts continuous. The 1756-PA75 has a power consumption of 25 Watts at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). This power supply has a power dissipation of 85.3 BTU/hour and a maximum inrush current of 20 A. The input frequency range of the 1756-PA75 is 47 to 63 Hertz. The power supply’s maximum input power is 100VA/100 Watts and the maximum output power is 75 W at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).

The AB 1756-PA75 comes with a current capacity at 5.1V of 13 A. This power supply must be mounted on the left side of 1756 chassis and it has a non-replaceable fuse that intended to guard against fire hazards from short circuits. The 1756-PA75 is intended for use in Pollution Level 2 Industry Environments and in excessive Category II applications (as defined in the publication of IEC 60664-1). Note that the 1756-PA75 power supply can operate at an altitude of up to 2000 meters without derating.
