1768-PA3 1768PA3 AB AB CompactLogix L4x AC/DC In Power Supply

⇒ Click here for good price 1768-PA3

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1768-PA3 is a CompactLogix power supply module. It is a dual-input power supply whose primary purpose is to provide power through the CompactLogix backplane. This power supply operates at 85 - 265VAC or 108 -132VDC. Before powering up the system, install a 1768 CompactLogix controller in the same bank as the power supply. To avoid issues, never install a 1769 power supply to a 1768 CompactLogix backplane. Monitoring and configuring of the module are possible through the RSLogix5000 software.

The 1768-PA3 module has an open-type enclosure and it can be mounted using DIN rail or panel mount. LED status indicators let the user monitor the module’s current state in real time. The 1768-PA3 can be from Series A or B and has a wiring category of 1 for the power ports. Its compatible wire sizes are 14 to 22 AWG stranded or solid copper wire rated at 167 degrees Fahrenheit with a maximum isolation of 1.2 millimeters. The 1768-PA3 has an internal overcurrent protection due to the soldered non-replaceable fuse. It also comes with a user-supplied maximum overcurrent protection of 15 Amps and its typical efficiency rate is 75%, and a maximum input power of 120 VA or 120 W. The 1768-PA3’s maximum inrush current is 50 Amps at 85 to 132 Volts AC and 80 Amps at 195 to 265 Volts AC while its power dissipation is 30 W.

Our service

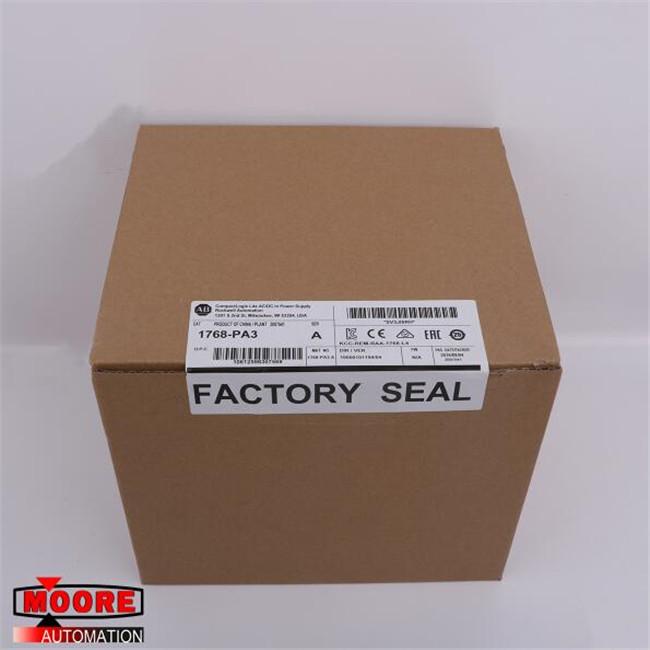

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
