Heavy‑Duty & Stable CBY Series Customizable Manual Hydraulic Pallet Truck, 2000‑5000kg, Integrated‑Casting Fork and Oil Cylinder, Hand Pallet Jack, Nylon / Rubber / Polyurethane Wheels Optional
CBY Series Manual Hydraulic Hand Pallet Truck
The CBY Series is a manual hydraulic hand pallet truck built for daily pallet handling in warehouses, workshops and distribution centers. A reinforced, evenly balanced frame and pallet fork keep the load stable, while the integrated casting oil cylinder delivers smooth, controlled lifting with low operator effort. With load capacities from 2000 kg to 5000 kg and a choice of nylon, rubber or polyurethane wheels, one platform covers most indoor and semi-outdoor material handling tasks.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Load Capacity | 2000 / 2500 / 3000 / 3500 / 5000 kg |
| Fork Width (B) | 520 / 550 / 685 mm |
| Fork Length (L) | 1100 / 1150 / 1220 mm |
| Lowered Fork Height (H) | 75 / 85 mm |
| Max Lifting Height | 185 / 195 mm |
| Single Fork Size (W x T) | 160 x 60 mm / 180 x 60 mm |
| Wheel Material | Nylon / Rubber / Polyurethane |

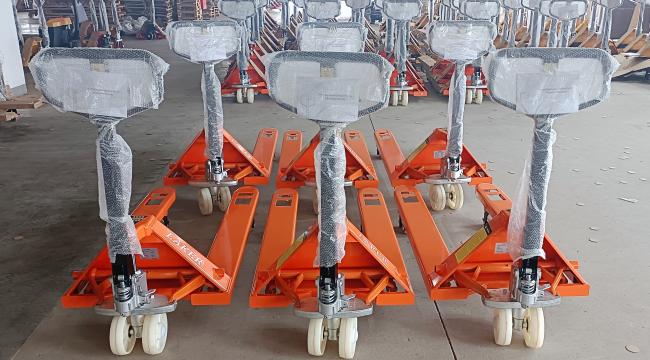

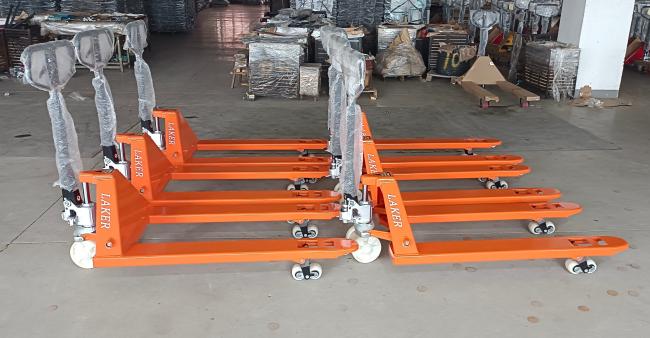

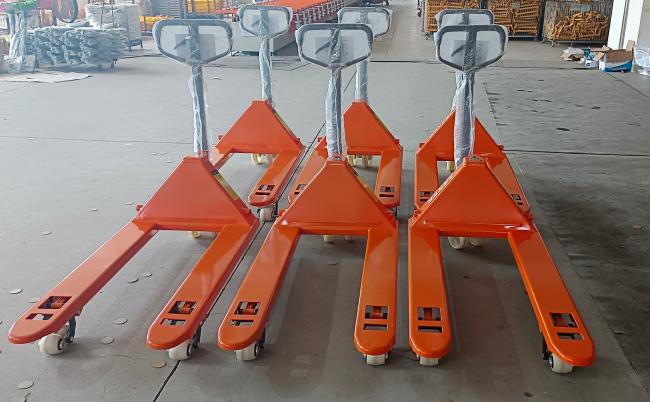

Product Photos

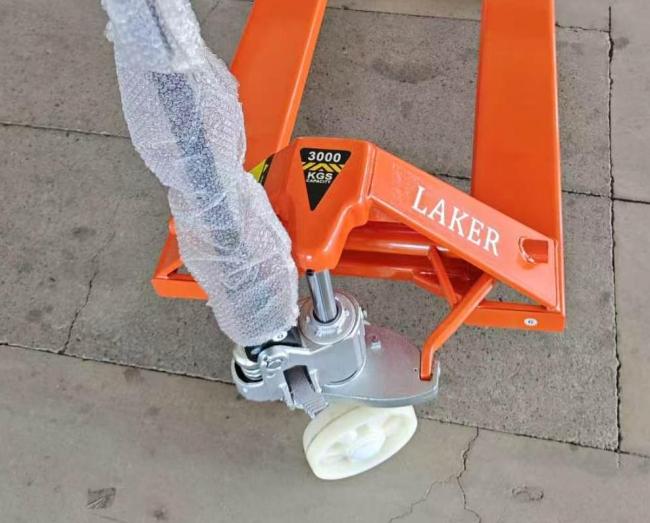

- Standard low-profile hand pallet truck
- Stainless steel version for wet or corrosive environments
- Galvanized version (hot-dip or cold galvanized): moisture-proof, rust-proof and corrosion-resistant, a widely used choice in the food industry
- Roller version: purpose-built for cylindrical roll goods such as paper rolls, cloth rolls and film rolls
- Extended or shortened fork versions for non-standard loads
- Pallet truck with built-in scale for weighing on the move
Tell us your load capacity, fork size and wheel requirement, and we will match the right CBY Series configuration for your application.
Why Choose the LAKER CBY Series

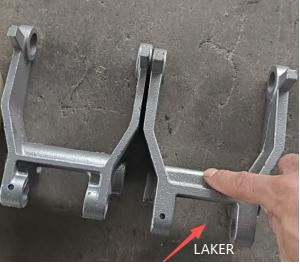

The frame and pallet fork are formed as one integrated casting structure, so load-bearing stress spreads evenly instead of concentrating on welded joints. The fork stays level under full load, and its low profile slides easily under standard pallets.

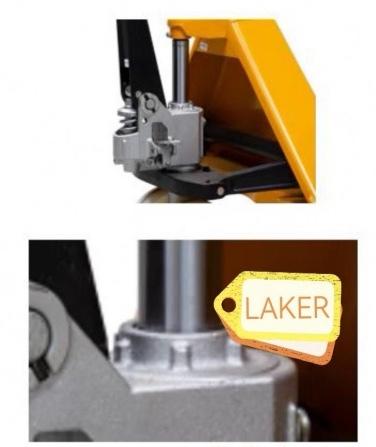

A high-quality integrated casting oil cylinder with a constant-flow valve regulates the hydraulic flow, so the load lowers evenly and gently even under heavy load, cutting the risk of sudden drops and protecting the cargo and the operator.

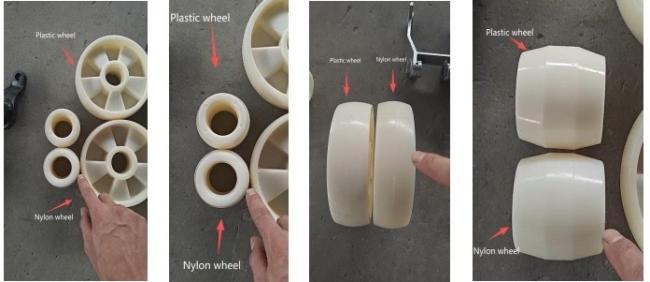

Durable nylon wheels roll smoothly, resist wear and leave no marks on most floors. Rubber and polyurethane wheels are also available for softer or slightly uneven surfaces.
Every rated capacity is a real measured value. A 3000 kg truck is built and tested to carry 3000 kg safely, instead of overly optimistic figures that put operators and cargo at risk.
We fit certified pumps from Zhejiang instead of uncertified low-cost units, so the hydraulic system stays reliable and leak-resistant over a long service life.
Superior craftsmanship with high-quality steel delivers more stable load bearing and a longer working life than lightweight welded frames.
Service and Support
- English operation manual supplied with every hand pallet truck
- Complete spare parts list plus long-term spare parts supply
- Free selection support: capacity, fork size and wheel material
- Customized versions: galvanized, stainless, roller, scale and non-standard fork sizes
- After-sales technical support with prompt online service
- Warranty support covering the hydraulic pump and core structure
FAQ
Q1: What load capacities does the CBY Series cover?
A1: From 2000 kg up to 5000 kg, with fork width and length options to match different pallet sizes.
Q2: Which wheel material should I choose for my floor?
A2: Nylon wheels roll smoothly on most hard floors; rubber and polyurethane options suit softer or slightly uneven surfaces.
Q3: Can the fork length or width be customized?
A3: Yes. Extended or shortened fork versions and custom fork widths are available for non-standard loads.
Q4: Is there a pallet truck with a built-in scale?
A4: Yes, a scale version is available for weighing loads on the move.
Q5: How do I choose the right capacity?
A5: For continuous heavy use we recommend a capacity around 1.25 to 1.5 times your actual daily load.
