220V 380V 240 Ton Forklift Tire Press Machine For 24 / 25 Inches Max Size Tire
220V 380V 240 Ton Forklift Tire Press Machine For 24 / 25 Inches Max Size Tire
Model: TP240
Introduction
2.4MN solid tyre pressing machine is a special equipment for solid tire loading and unloading,
It can also apply to the tyres below 24" 25".

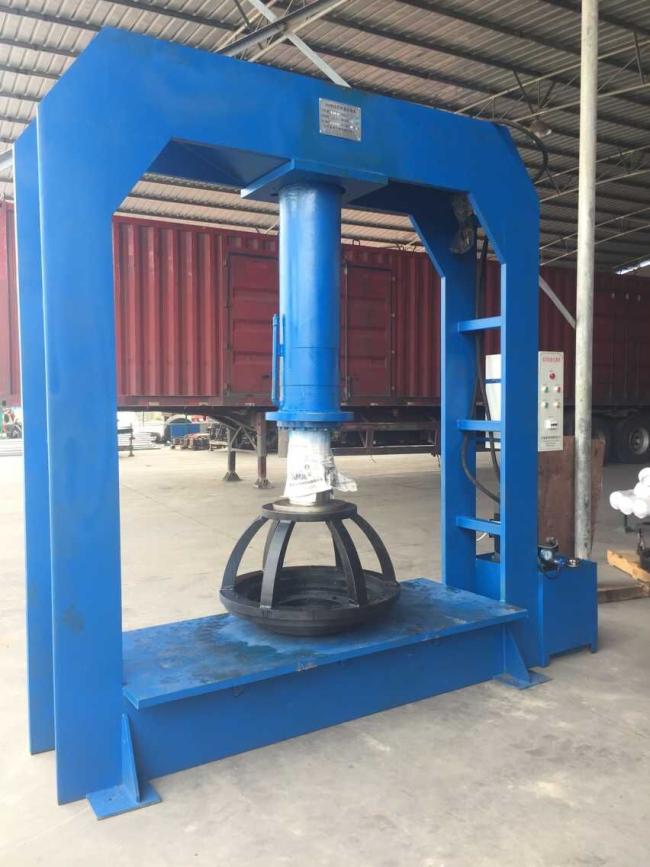

This machine is a frame type structure.The hydraulic cylinder is located above the piston movement from top to bottom, the department. Platform, fixed on the piston rod and spherical pressure box, firm structure, is made of high-quality materials carefully assembled, so good performance. With the electric control box independent.
The hydraulic system of the machine consists of hydraulic system and hydraulic system of the auxiliary machine. This machine hydraulic system is composed of the high-pressure pump, solenoid valve, pressure relief valve, check valve, pressure indicator and oil cylinder.
High pressure relief valve is the oil pressure setting of high pressure pump, its maximum setting value is 25MPa.
Product Features
-
Model TP240 Nominal pressure
2.4 MN
Work hydraulic
25 Mpa Max Tire Size 24/25 Inches Max Cylinder Stroke 900 mm Motor 7.5KW Oil Tank Capacity 90 L Size L2770xW850xH2880 mm Weight 3500 kg
Our products include TP80,TP120, TP160, TP200, TP240, TP300. Multiple models with many standard features are available; numerous options are also offered and we will customize your equipment based on your specifications and requirements in order to provide you with the hydraulic equipment you need to succeed.
