Water Supply & Drainage Pipe Making Machine And Cable Pipe Extrusion Line
Water Supply & Drainage Pipe Making Machine And Cable Pipe Extrusion Line
This PVC pipe production line is widely used for producing PVC water supply pipe, drainage pipe and high voltage cable protection pipe. It could also produce CPVC pipe with CPVC pipe mold. It is consist of SJSZ series double screw extruder, mould, vacuum cooling tank, spray cooling tank, haul-off machine, cutting machine, stacker, etc. And it can produce PVC tube from mixed powder directly.
The production line uses special designed screw and mould, which makes it easy forming, even plasticization, high capacity, stable running and easy operation.
Model:
| Model | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Max diameter(mm) | 75 | 200 | 315 | 630 |
| Motor power(kw) | 18.5 | 37 | 55 | 90 |
| Haul-off speed(m/min) | 0.5-10 | 0.5-8 | 0.5-6 | 0.5-4 |
| Total Length(m) | 20 | 25 | 28 | 32 |
| Output(kg/h) | 80-120 | 180-250 | 280-350 | 500-600 |

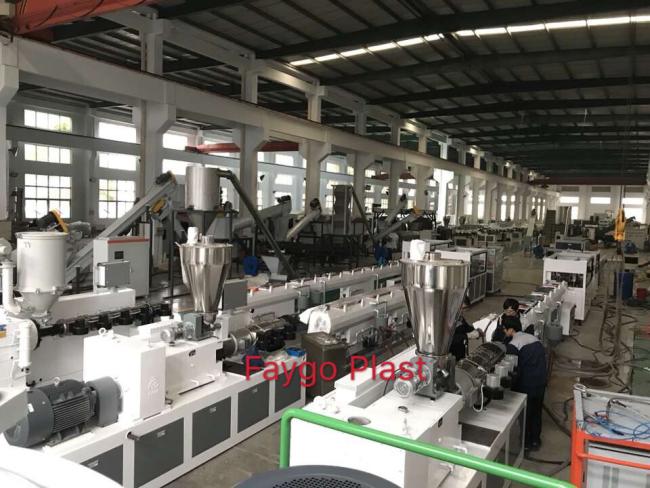

Part of our factory & office
Welcome to visit our factory and check our machines when you are in China!
How to get a accurate quotation?
-
Plz tell us which kind of pipe you want to produce(PP, PE, PVC or any others)? It will be better if you can send me some pictures of the pipe you want to produce.
-
What is the pipe diameter and thickness(pipe pressure) you want to produce?
