Mini Fiber Optic Termination Box For CATV Networks Working Temp -20°C~+55°C
FTTH Mini Fiber Optic terminal box Fiber Optic Components
1. Description
ftth mini fiber optic terminal box is used in in FTTH project to connect the outdoor normal cable with drop cable, Suitable for corridor, basement,room and building's outer walls application, With the function of mechanical splice,fusion splice,light splitting,wiring distributions.
2. Feature
1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.
7. Material: reinforced polycarbonate
8. outdoor ftth box plc

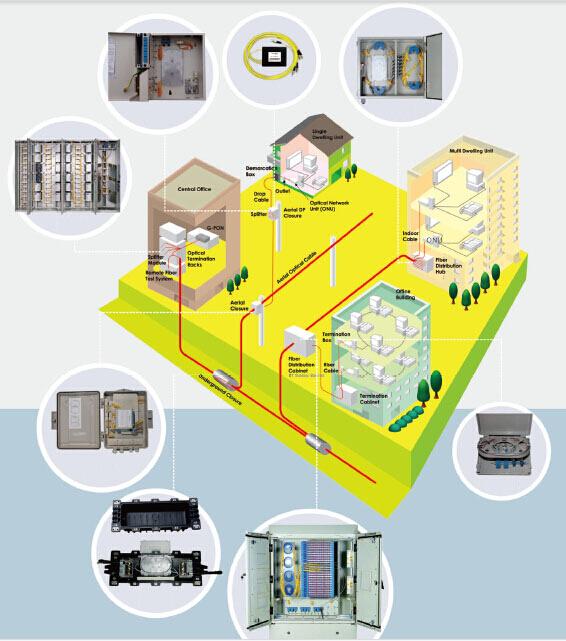

3. Application
1. widely used in FTTH access network.
2. Telecommunication Networks
3. CATV Networks
4. Data communications Networks
5. Local Area Networks
4. Dimension
| Items | Dimension(WxDxH) | Max.Capacity | Note |
| QY-0208 | 181X45X207mm | 8 ports & splice | Pole/Wall |
| QY-0216 | 220x80x300mm | 16 ports & splice | Pole/Wall |
