multimode fiber patch cable / Indoor Fiber Optic Cable Diameter 0.25mm - 3.0mm
Price:
negotiation
MOQ:
100KM
Delivery Time:
10-12 days
Brand:
Qingying
Product Description

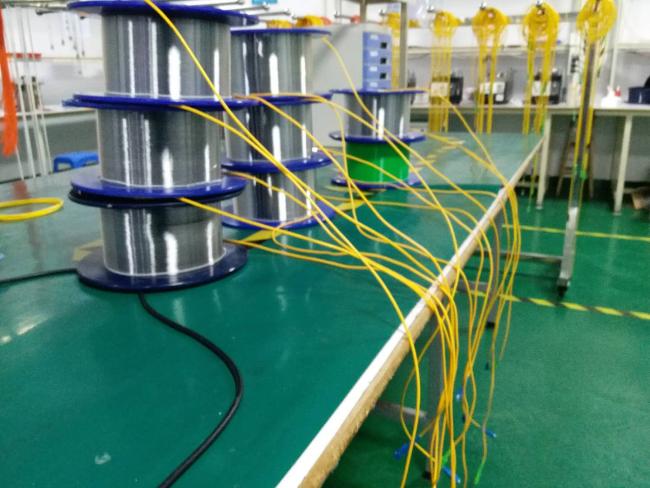

0.25 mm Indoor Fiber Optic Cable FC PC Bare Optical Fibre Spools
we have all type of glass fibre optic you need.
--- glass fibre optic cables ,Pigtails,patch cords,loopback modules
--- LC,SC,ST,FC,MTRJ,MU SMA,MTP/MPO
--- Sinlge Mode,Multimode,OM1,OM2,OM3,10G OM4
--- Armored ,Un armored
--- Armored ,Un armored
---- multi Core,Mode condiioning
--- Special Tactical etc.
--- Special Tactical etc.
Features
1. High return loss
2. Low insertion loss
3. Patch cord Passed RoHS,ISO9001
4. LZSH or PVC jacket
5. CCTC A Type optical fiber Ferrule
General patch cords
Specifications&Performances
| Item | Single mode | Multi mode | |
| Splicing Type | UPC | APC | PC |
| Insertion Loss | <or=0.3dB | <or=0.2dB | <or=0.3dB |
| Reture Loss | >or=45dB | >or=55dB | >or=35dB |
| Repeatability | <or=0.1dB | <or=0.1dB | <or=0.1dB |
| Temperature | -40/+80 | ||
| Fiber Type | Singlemode(APC Polish) | Multimode(PC/Flat Polish) | ||
| Parameter | Standard | Low loss | Standard | Low loss |
| Insertion Loss Maximum | <0.70 | <0.35db | <0.70dB | <0.35dB |
| Retrurn Loss | >60dB | None | ||
| Durability | 500Matings | |||
| Operating Temperature | -40C to 80C | |||
| Test Wavelength | 1310nm | 850nm | ||
| Material |
OS1 9/125μm (1310/1550nm) |
OM1 62.5/125μm (850/1300nm) |
OM2 50/125μm (850/1300nm) |
OM3 50/125μm (850/1300nm) |
|||||||
| Attenuation (dB/km) Typical Values | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 | 2.7/0.7 | |||||||
| Minimum Bandwidth (MHz•km) | N/A | 400/400 | 160/500 - | 1500/500 - | |||||||
| Primary Buffer Diameter | 250μm | 250μm | 250μm | 250μm | |||||||
| Strength Members | 4x1320 Decitex Kevlar element | ||||||||||
| Storage /Operating/ Installation Temperature | -20℃~+60℃ | ||||||||||
| Sheath material | PVC or LSZH Sheath | ||||||||||
| Fiber Optic Cable Specification | |||||||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 16 | 24 | ||||
| Nominal Outer Diameter(mm) | 5.0±0.2 | 5.1±0.2 | 5.3±0.2 | 5.9±0.2 | 6.6±0.2 | 7.5±0.2 | 8.2±0.2 | ||||
| Nominal Weight (kg/km) | 19 | 21 | 23 | 28 | 34 | 46 | 57 | ||||
| Max. Tensile Load | Long Term (N) | 220 | |||||||||
| Short Term (N) | 660 | ||||||||||
