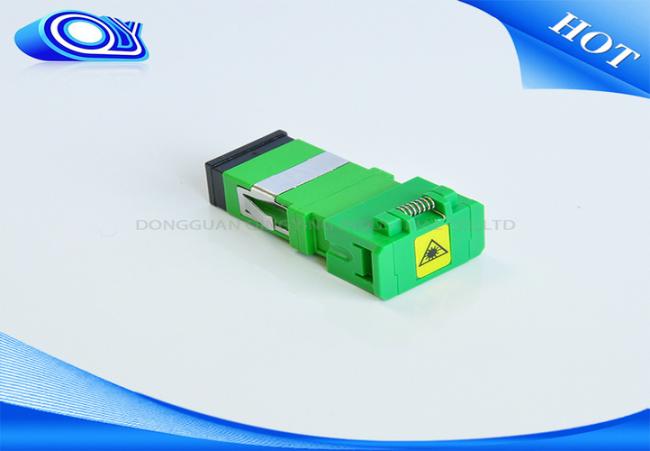

FTTH Coupler SC / APC Shutter Adaptor SC hybrid adapters 0.2dB Optic Fiber Adatper

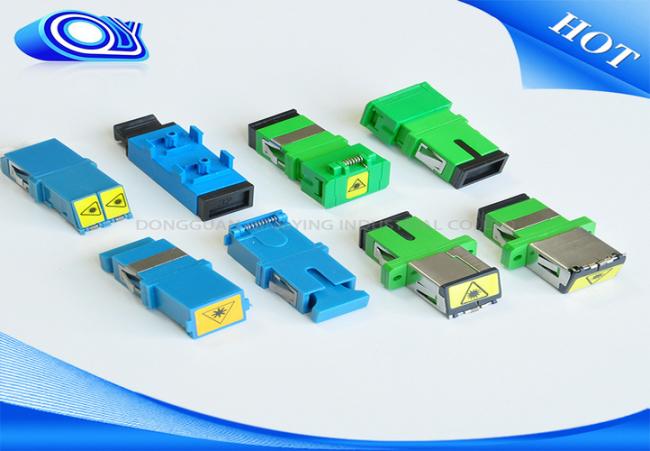

Qingying fiber optic adapters are used in fiber optic connector, the typical use is to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors.
Feature:
1, LC/SC/FC/ST Type Optional
2, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, Comply with IEC, Telcordia GR 326 and JIS standard
Application:
-- CATV
-- Telecommunication networks
-- Test equipment
-- Local Area Networks(LANs)
-- Data processing networks
| Name | Manufacturer flange Adaptor FC/SC/ST Optical Fiber Adapters |
| Connection locking force | ≥70N |
| Insertion loss | <0.2dB |
| Temperature range | -40℃~+100℃ |
| Repeated insertion | ≥500 times |
| A adapter | SC |
| A end polishing | PC, UPC, APC |
| B adapter | SC |
| B end polishing | PC, UPC, APC |
| Mode | SM, OM1, OM2, OM3, OM4 |
| Color | Green; Blue |
