FTTH Solution OEM Fiber Optic Fast Connector SC UPC APC SM Field - Installable

Price Negotiable
Price: negotiation
MOQ: 20 Piece/Pieces
Delivery Time: 12 working days
Brand: Qingying or QY
Product Description

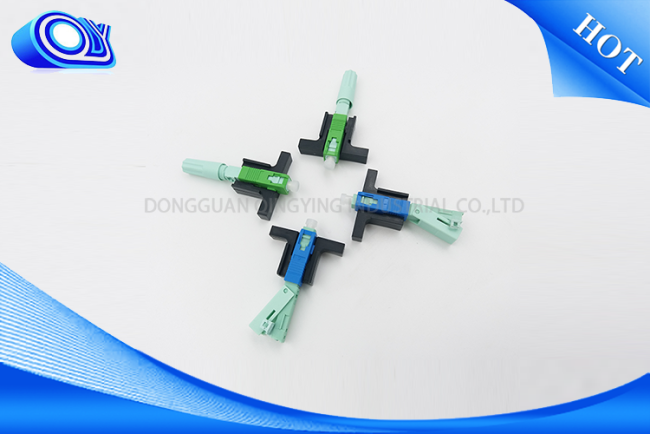

FTTH Solution OEM Fiber Optic Fast Connector SC UPC APC SM Field-Installable

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.



Specifications



Fiber Type SM/MM
Surface polishing SC/APC/UPC
Color Green/Blue
insertion loss 0.3dB
return loss ≥60dB
joint endurance 10Times
Material of shell ABS
Applications 2.0/3.0 or FTTH patch cord
Fiber Diameter 125um
Tensile Strength >20N
Lock Strength 0.2dB
Temperature Cycle 0.3dB
Virbration 0.2dB
Temperature -40℃~+80℃

FAQ



1.Are you the real factory

Yes,we are the real factory with 10 years’ history.



2.What is your fiber brand ?

Corning, Yofc,FiberHome.



3.What is your main products

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; Optical patch cords; Adapters, Sleeves,MTP/MPO, etc.



4.Which kind of certification you have?

ISO9001, SGS, UL, RoHs.



5.What is your delivery time?

Within 2-3 working days.



6.MOQ: what is your minimum quantity ?

1PC. WE can provide free sample to test the quality.



7.Payment:

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.



8.Can you supply customized products and logo?

Yes. We supply OEM&ODM service
