Om3 Fiber Optic Pigtail LC / UPC PC APC Low Insertion Loss For FTTH / FTTX
Price:
negotiation
MOQ:
50 pcs
Delivery Time:
Negotiable
Brand:
Qy or Qingying
Product Description

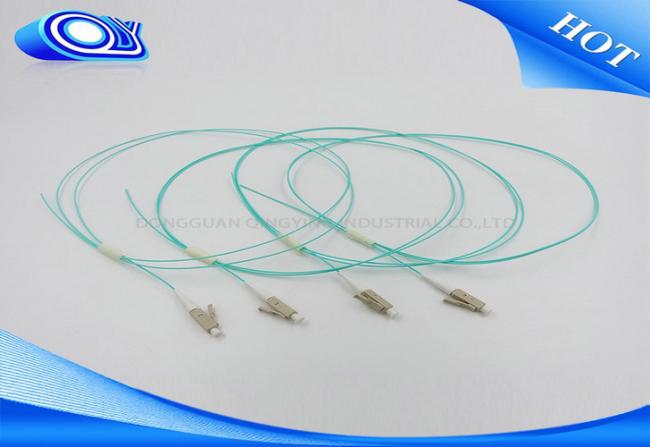

Om3 Fiber Optic Pigtails LC/UPC PC APC Aqua Jacketed Fiber Pigtails
Product Description:
Specifications:
1. SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000 .
2. 0.9mm / 2.0mm / 3.0mm .
3. SM/MM SX/DX.
Technical specifications:
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| diameter | 0.9mm 2.0mm, 3.0mm etc | |||
| Cable material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Features:
--- Good durability.
--- Good exchangeability.
--- High temperature stability.
--- Low insertion loss and back reflection loss.
--- Superior Quality Standard PC/UPC/APC Polishing.
--- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
