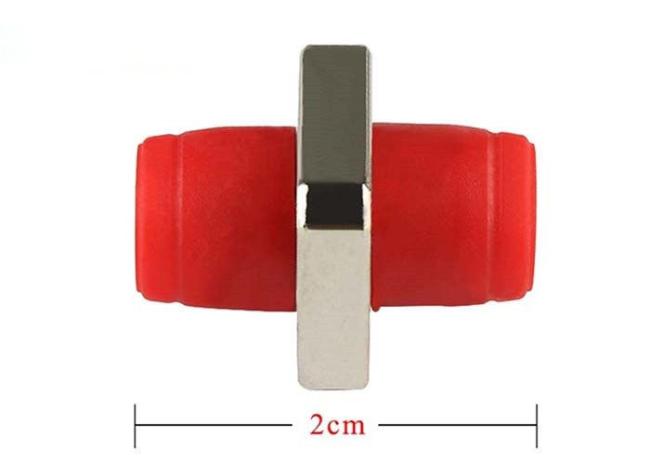

FC Square Copper Optical Cable Adapter Coupler for FTTH
FC Square Copper Optical Cable Adapter Coupler for FTTH
Description
They are available for use with either singlemode or multimode patch cables.
Fiber Optic Adaptor (also called coupler, or flange coupler) is the device to couple two connectors together. QY’s adaptor adopts high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by customer, and with options for flange or flangeless body.
Feature
1, LC/SC/FC/ST Type Optional
2, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, Comply with IEC, Telcordia GR 326 and JIS standard
Application
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks
Specification
| Item Name | Unit | SPECIFICATIONS | |||||
| Grade S (Standard) | Grade P (Premium) | ||||||
| △IL(Insertion Loss) | dB | ≤ 0.2 | ≤ 0.1 | ||||
| Interchangeability | dB | ≤ 0.2 | |||||
| Repeatability | dB | ≤ 0.1 | |||||
| Durability | times | ≥ 1,000 | |||||
| Operating Temp. | °C | -25 ~ +70 | |||||
| Fiber Count | Simplex | ||||||
FAQ
| Q1: How do you guarantee the quality? |
| A1: We are an ISO certified factory |
| A2: We always start with pilot production to confirm everything complied with customers’ spec. |
| A3: In mass production, we have strictly IQC, IPQC, and FQC processes to confirm the quality of final products |
| A4: Before shipment, we also accept the customer's inspector to confirm the quality of goods. |
| Q2: Can you factory pass the factory audit? |
| A2: Yes, we welcome factory audit and we could pass it dut to we already are an ISO certified factory. |
| Q3: What's the product's lead time? |
| A3: It depends. For the sample below 5pcs, the lead time is usually 1 day, and for bulk production, the time will be 5-30 days |
| after receiving the deposit. |
| Q4: Can I have my own logo on the products? |
| A4: Yes, we welcome the custom-made logo. The logo could be stamped, lasered, and engraved. |
| Q5: What's your payment term? |
| A5: Our payment term is 30% deposit, and 70% balance before shipment. |
| Q6: Do you offer any other goods? |
| A6:Yes. Our factory mainly offers fast connectors, adapters, patch cords, attenuators, plc splitters, etc. However, we serve all |
| requests from customers with pleasure. |
