ODVA LC Fiber Optic Patch Cord 2 Cores Waterproof Simplex Socket
ODVA /PDL Fiber Optic Patch cord LC Waterproof Simplex Soket

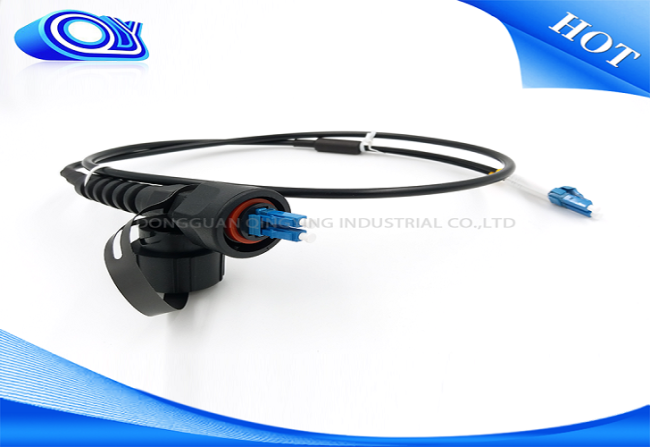

Outdoor IP Harsh PDLC/ODVA 7.0mm 2 Cores Fiber Optic Patch Cord manufactured is designed for outdoor IP harsh environment. This patch cord uses standard size of Duplex LC Connectors,
and the outer housing is metal protective PDLC/ODVA device.
These patch cords meet with the functions of waterproof, dustproof and are widely used in FTTA,
Base station, and the outdoor waterproof condition.
Technical specifications:
| Item | Unit | LC/SC/FC/ST Fiber Patch Cord | ||||
| SM | MM | |||||
| Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
| Endface Type | PC | UPC | APC | PC | PC | |
| Insertion Loss | db | ≤0.2 | ≤0.15 | ≤0.2 | ≤0.1 | ≤0.1 |
| Return Loss | db | ≥45 | ≥50 | ≥60 | - | - |
| Insert-pull Test | db | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.15 | ≤0.15 |
| Interchangeability | db | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.1 | ≤0.1 |
| Temperature Range | ℃ | -40~+80 | ||||
1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.
4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Application
Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications
