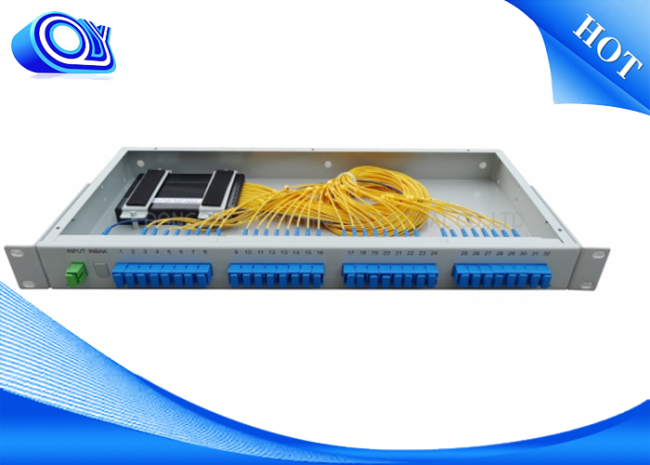

High Stability Fiber Optic Termination Box , 1 * 32 Fiber Optic Coupler
1*32 fiber optical PLC splitter use for optic communication
1 * 32 Fiber Optic Cable Splitter Reliability / Stability Optical Fiber Coupler
The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Features:
. Low Insertion loss
. Low PDL
. Compact Design
. Good channel-to-channel uniformity
.Wide Operating Wavelength:1310/1490/1550
. Wide Operating Temperature:From -40°C to 85°C
. High Reliability and Stability
Description of PLC Splitter:
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Application
-- Long-haul Telecommunications
-- CATV Systems & Fiber Optic Sensors
-- Local Area Network
| 1xN PLC Splitter Specification | |||
| Operating Wavelength(nm) | 1260~1650 | ||
| Fiber Type | G657A1 or as customers' order | ||
| Port Configuration | 1x4 | ||
| Insertion Loss (dB) | 7.1/7.3 | ||
| Loss Uniformity (dB) | 0.6 | ||
| Polarization Dependent Loss(dB) | 0.2 | ||
| Wavelength Dependent Loss(dB) | 0.3 | ||
| Temperature Dependent Loss (-40~85 ) (dB) | 0.4 | ||
| Return Loss (dB) | 55/50 | ||
| Operating Temperature | -40~+85 | ||
| Directivity (dB) | ≥ 55 | ||
| Storage Temperature | -40~+85 | ||
