Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector

Fast Installation Quick Assembly Connector SC UPC SM Blue Fiber Fast Field Connector

Products Description

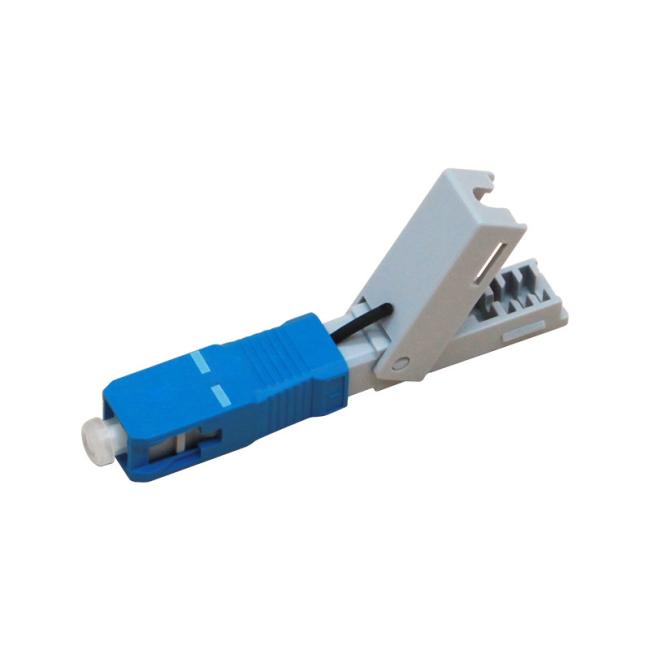

Field Installable Connector (FIC, also called Fast Connector) is an innovative field installable optical fiber connector designed for simple and fast field termination of single fibers. Without using additional assembling tools, the field assembly connector can be quickly and easily connected to the drop cable and indoor cable, which saves a lot of required termination time. It is specially designed with a patented mechanical splice body that includes a factory-mounted fiber stub and a pre-polished ceramic ferrule. Field assembly connectors enable faster and on-site installation of 250µm, 900µm, 3.0mm, and 1.6mm x 2.0mm, 2.0mm x 3.0mm cable type connectors even when the user has no access to power. The whole installation process only takes about 2 minutes, which greatly improves the working efficiency.

Features

· Field-installable, cost-effective, user-friendly
· No requirement for epoxy and polishing
· Quick and easy fiber termination in the field
· No need for a fusion splicer, power source, and tool for pressure
· Visual indication of proper termination
· Suitable for all standard OS1 and OS2 fiber cables

Application

· Connections at the desk for LAN environments
· Optical access network
· Fiber to the Subscriber (FTTX) applications
· Patch panels
· Direct equipment termination

Specifications
