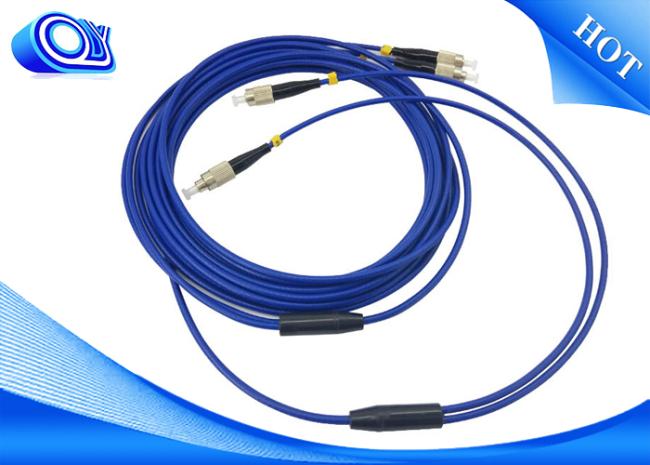

2 Core , Fiber Optic Ethernet Cable / 4 Core Fiber Optic Cable / Armored Multimode Fiber Optic Cable
2 Core , Fiber Optic Ethernet Cable / 4 Core Fiber Optic Cable / Armored Multimode Fiber Optic Cable
QY offers Fiber to the antenna remote base station patch cable, consists of Duplex LC with amored outer housing to withstand harsh environment conditions when being used in outdoor application,duplex round far transmittion outdoor cable(water blocking aramid yarns and UV resistant black out jacket),sometimes with pulling eye.
FTTA remote optic fiber patch cables with duplex base station far transmission fiber cable are used for FTTA Fiber to the antenna And test records meets ROHS and Bell core GR 326-CORE standars
Typical Usages
3G, 4G base station
BBU, RRU, RRH, LTE
FTTA, FTTP, FTTX, WIMAX
Military, Mining and shipboard
Aerospace and Defense
Horizontal and Vertical Cabling
Typical Advantage
Waterproof and corrosion resistant
Field Installable
Armored Steel Tube for Rodent Resistance
With Big Capacity Data Transmission
Low Insertion Loss and High Return Loss
Technical Data
|
Item |
Single mode |
Multi mode |
|
|
Splicing Type |
UPC |
APC |
PC |
|
Insertion Loss |
<or=0.3dB |
<or=0.2dB |
<or=0.3dB |
|
Reture Loss |
>or=45dB |
>or=55dB |
>or=35dB |
|
Repeatability |
<or=0.1dB |
<or=0.1dB |
<or=0.1dB |
|
Temperature |
-40/+80 |
||
Specifications&Performances
|
Cable |
ITEM |
CABLE |
S.S.T. |
T.B.O.F. |
|
4F |
4.5MM |
Φ4.5±0.2 |
Φ2.4±0.02 |
Φ0.5 |
|
6F |
4.5MM |
Φ4.5±0.2 |
Φ2.6±0.03 |
Φ0.5 |
|
8F |
5.0MM |
Φ5.0±0.2 |
Φ2.8±0.05 |
Φ0.5 |
|
10F |
5.0MM |
Φ5.0±0.25 |
Φ3.0±0.05 |
Φ0.5 |
|
12F |
5.5MM |
Φ5.5±0.25 |
Φ3.2±0.05 |
Φ0.5 |
|
24F |
7.0MM |
Φ7.0±0.3 |
Φ4.3±0.05 |
Φ0.5 |
Fiber Parameters
|
No. |
Items |
Unit |
Specification |
|
|
G.652D |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
1550nm |
μm |
10.4±0.5 |
||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.4 |
|
1550nm |
dB/km |
≤0.3 |
||
