IEC 60794-2-10/11 Fiber Optic Patch Cord Cable Outdoor / Indoor SC UPC Connectors
The key is also used for repeatable alignment of fibers in the optimal, minimal loss position.
Multimode versions of this connector are also available.

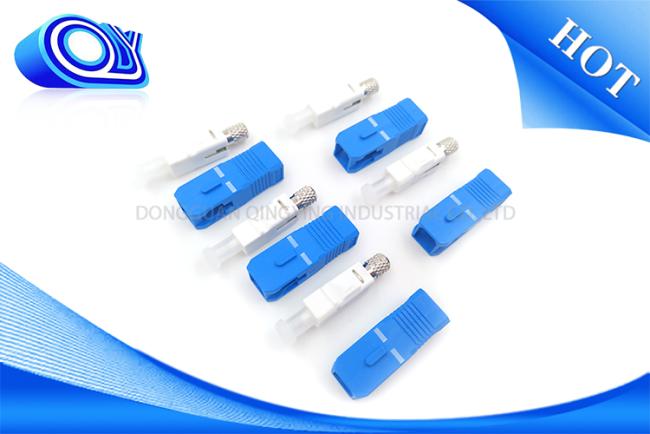

Outdoor Indoor SC UPC Connectors For Fiber Optic Patch Cord Cable
Optical fiber in use not excessive bending and winding, this will increase the light attenuation in the transmission process. Fiber jumper after use must use to protect the optical fiber attachment, dust and oil will damage the fiber coupling.
This high precision, ceramic ferrule connector is equipped with an anti rotation key, reducing fiber endface damage and rotational alignment sensitivity of the fiber.
Both ends of the optical fiber patch cord transceiver module wavelength must be consistent, that is to say the two ends of the optical fibre optical module must be the same wavelength, the simple discrimination method is the light module to the colour line.
Technical specifications:
| Content | Testing Condition | (dB) | ||||
| SM | MM | |||||
| APC | UPC | PC | ||||
| Optical Performance |
IL(dB)
|
1310/1550nm LD Light | 0.2 | 0.2 | 0.2 | 0.2 |
| RL(dB) | 1310/1550nm LD Light | 65 | 55 | 50 | 35 | |
|
Environment Performance |
High Temperature |
+85℃,168H
|
0.2 | |||
| Temperature cycle |
-40~+75℃,21cycle,168H |
0.2 | ||||
|
Humidity thermal(Fixed) |
5℃,95%R.H.,168H | 0.2 | ||||
| Humidity thermal cycle |
10~+65℃,95%R.H.,21 cycle,168H |
0.2 | ||||
| Mechanical Performance | Vibration | 10~55Hz,1.5mm(p-p) | 0.1 | |||
| Bending | 0.9kgf,-90°~+90°,100cycle | 0.1 | ||||
| Torsion | 2.5kgf,10times/min,±180°,200times | 0.1n | ||||
| Anti-tension | 90N,10min | 0.1 | ||||
| Dropping |
1.5 height, 8 times |
0.2 | ||||
| Repeat | 10 Times inserts | 0.1 | ||||
| Durability | >1000times | 0.2 | ||||
2. Mechanical Performance and Working temperature
| Content | Character | Unit |
| Working Temperature | -40~+85 | ℃ |
| Storage Temperature | -5~+50 | ℃ |
|
Φ3.0 Fibre Curl Radius
|
>30 | mm |
| Φ3.0 Anti-Tensile Strength | >9.0 | Kgf |
| Main Mechanical Size | SEE LAYOUT | - |
3. 3D Index
|
Type Content |
APC | UPC | LC | ||
| Radius of Cury(mm) | 5-12 | 10-25 | 7-25 | ||
| Apexoffset(um) | 0~+50 | ||||
| FiberHeight(nm) | -50~+50 | ||||
| Angle(deg) | 7.5~8.5 | / | / | ||
The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.
If the fiber optic connector is dirty, you can use a cotton swab dipped in alcohol cleaning, otherwise it will affect the quality of communications.
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
