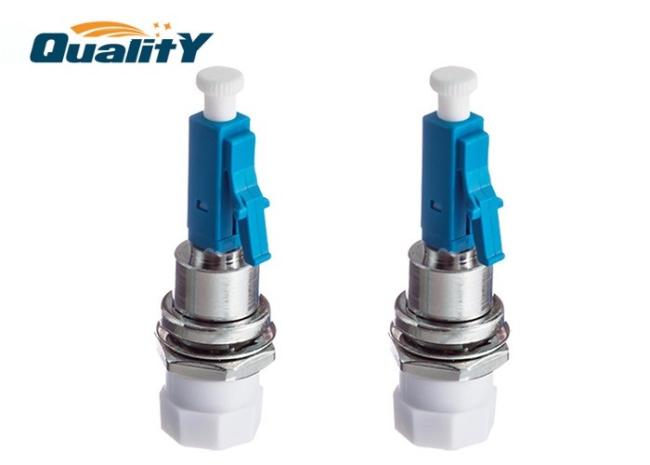

QY adapter LC male to FC female hybrid fiber optical adapter in Telecommunication
QY adapter LC male to FC female hybrid fiber optical adapter in Telecommunication
Fiber Optic Adapter(also known as fiber flange), is aligned with the connection of fiber optic
transmission components, the ends can be inserted into different types of fiber optic connector
interfaces to achieve FC, SC, ST, LC, MTRJ, MPO, E2000 conversion between different
interfaces, widely used in optical fiber distribution frame (ODF), fiberoptic communications
equipment, instruments, etc., superb performance, stable and reliable.
Feature:
1, LC/SC/FC/ST Type Optional
2, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex
5, Zirconia ferrule, Compact design
6, Low insertional loss, High return loss
Application:
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks
Mating sleeve fiber optic adapters allow users to couple from one connector type to another same type. LC/SC/FC/ST Fiber Optic Adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. LC/ST/SC/LC Optical Adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
| Hybrid adapter type | LC(Female) to FC(Male) |
| Fiber tyle | SM 9/125 Fiber. |
| Insertion Loss(db) | Less than 0.50 |
| Repeatability(db) | Greater than 0.38 |
| Interchangeability(db) | Less than 0.20 |
| Sleeve Socket Material | Zirconium dioxide ceramic |
| Working temperature | -25C to +75C. |
| Storage temperature | 25C to +75C. |
