Armored Water Proof Fiber Optic Patch Cord with Multi Ports MTP / MPO / LC / SC
Armored Waterproof Fiber Optic Patch Cord with Multi Ports (MTP/MPO/LC/SC)

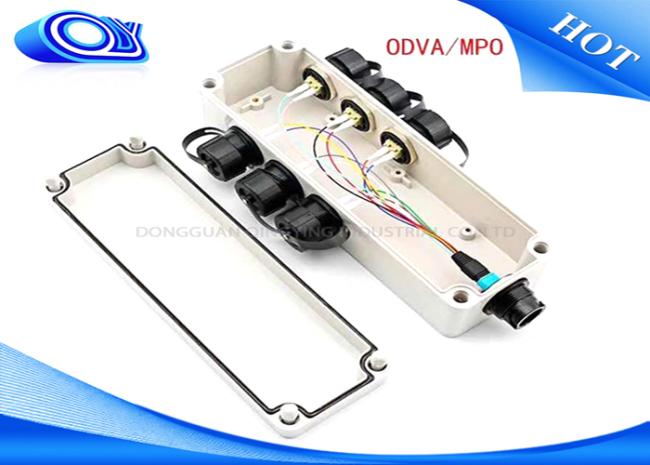

ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.
Technical specifications:
| Item | Unit | LC/SC/FC/ST Fiber Patch Cord | ||||
| SM | MM | |||||
| Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
| Endface Type | PC | UPC | APC | PC | PC | |
| Insertion Loss | db | ≤0.2 | ≤0.15 | ≤0.2 | ≤0.1 | ≤0.1 |
| Return Loss | db | ≥45 | ≥50 | ≥60 | - | - |
| Insert-pull Test | db | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.15 | ≤0.15 |
| Interchangeability | db | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.1 | ≤0.1 |
| Temperature Range | ℃ | -40~+80 | ||||
With the development of distributed antenna syatems(DAS), ODVA connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.
4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Application
Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications
