Outdoor / Armored Fiber Optic Patch Cable / 6 Core Armored Fiber Optic Cable
Price:
negotiation
MOQ:
20pcs
Delivery Time:
Negotiable
Brand:
Qingying
Product Description
Outdoor / Armored Fiber Optic Patch Cable / 6 Core Armored Fiber Optic Cable
Product Description

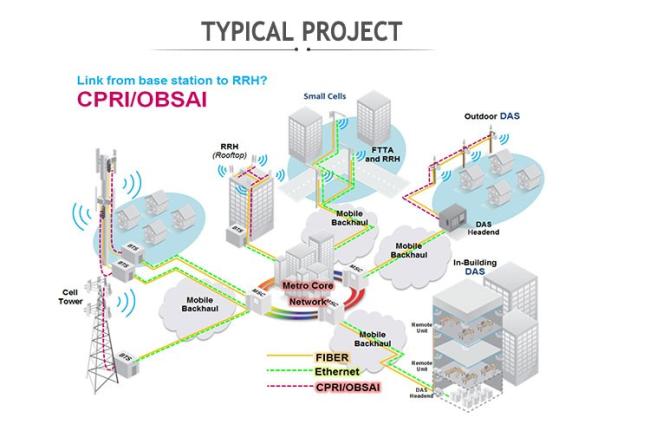

Armored outdoor fiber patch cord is used for the antenna,and base station far transmission.
Fiber optic patch cable is kind of indoor/outdoor patch cord, built on LSZH cable with 7.0mm diameter,
with water blocking aramid yarns and UV resistant black out jacket.
QY produces FULL ARMOURED patchcord for harsh environment,
especially for rodent resistance and bird resistance.
Technical specifications:
| Item | Unit | LC/SC/FC/ST Fiber Patch Cord | ||||
| SM | MM | |||||
| Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
| Endface Type | PC | UPC | APC | PC | PC | |
| Insertion Loss | db | ≤0.2 | ≤0.15 | ≤0.2 | ≤0.1 | ≤0.1 |
| Return Loss | db | ≥45 | ≥50 | ≥60 | - | - |
| Insert-pull Test | db | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.15 | ≤0.15 |
| Interchangeability | db | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.1 | ≤0.1 |
| Temperature Range | ℃ | -40~+80 | ||||
Features
1. Standad LC Duplex connector, can be connected with normal LC Adapters
2. Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
3. Wall seal design,easy operation, strong and durable.
4. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Application
Optical Networks
Testing / Measurement Instruments
Fiber To the Home
CATV System
Telecommunications
