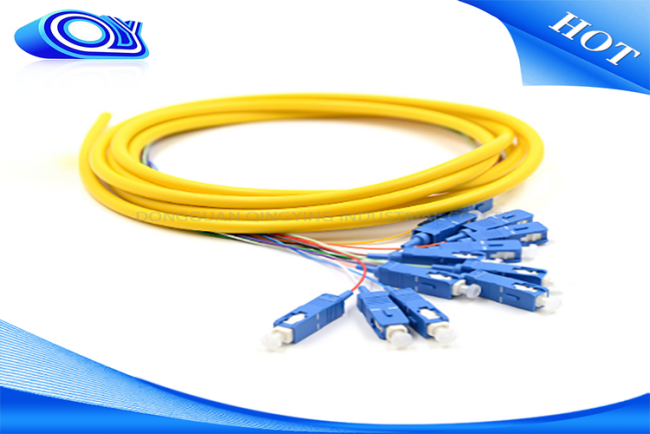

Yello Color Optic Fiber Patch Cable Patch Cords SC 12 Cores Bundle Pigtail
The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.
Features:
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
Product Performance:
| Parameter | Specification | |
| Connectors Type | SC,LC,FC,ST,MU,E2000,MTRJ,MPO etc. or customized | |
| Fiber Type | Single Mode | Multi Mode |
| Matched Bandwidth Range | 1250~1650nm | 1250~1650nm |
| Testing Wavelength | 1310nm, 1550nm | 1310nm, 1550nm |
| IL(dB) | Typical≤0.20dB,Max≤0.30dB | Typical≤0.150dB,Max≤0.30dB |
| RL(dB) | UPC≥50.0dB,APC≥60.0dB | UPC≥50.0dB,APC≥60.0dB |
| Repeatability | ≤0.10dB | |
| Exchange ability | ≤0.20dB | |
| Durability | 1000 Mating,Typical≤0.20dB | |
| Tensile Force | ≥120N(except 0.9mm cable)or customized | |
| Operating Temperature | -20℃ ~ +70℃ | |
| Storage Temperature | -40℃ ~ +85℃ | |
Ordering Guide:
| Connector | Cable Type | Fiber Type | Fiber Core | Surface Type | Cable Diameter | Skin Material | Length |
| FC,LC,SC,ST, MU,MTRJ,E2000, MTRJ,MPO etc. or customized |
Indoor optical fiber cable,Outdoor optical fiber cable,Armored optical fiber cable, FTTH drop optical fiber cable | SM-G652D SM-G657A1 SM-G657A2 SM-G657B3 SM-G655 OM1(62.5) OM2(50) OM3(50)-150 OM3(50)-300 OM4(50)-550 OM5(50)-550 |
According to cable mode and customer designated some conclusions to decide | UPC APC |
According to cable mode and customer designated some conclusions to decide | PVC LSZH TPU PE …… |
1M 3M 5M 10M …… or customized |
