SC Duplex Adpter Single Mode Optics Fiber Adapter Panel for SC FTTH Solution

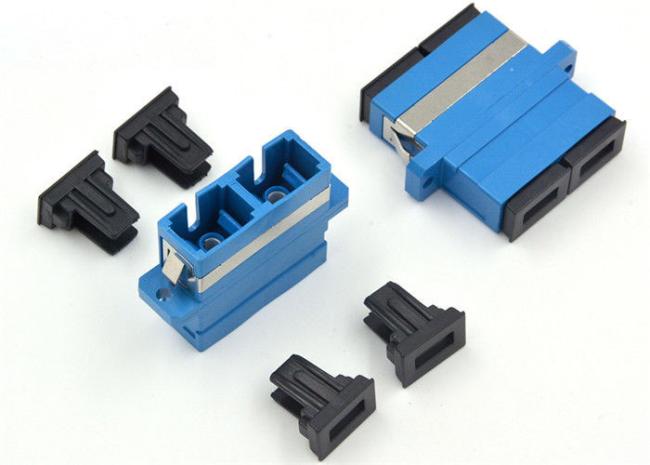

SC UPC Fiber Adapter Single Mode Duplex Optics Fiber Adapter Coupler
DESCRIPTION
Fiber Optic Adaptor (also called coupler, or flange coupler) is the device to couple two connectors together. QY’s adaptor adopts high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by customer, and with options for flange or flangeless body.
Key Features
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Use in Single-mode or Multimode applications
4 .Choice of housing material and sleeve material
5. ISO9001:2015,ROHS compliance
Product Applications
1. CATV
2. Telecommunication networks
3. Test equipment
4. Metro
5. Local Area Networks(LANs)
6. Data processing networks
Product Specification
Parameter | Unit | LC, SC, FC, ST | |||
SM | MM | ||||
PC | UPC | APC | PC | ||
Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Exchangeability | dB | ≤0.2 | |||
Repeatability | dB | ≤0.2 | |||
Durability | Time | >1000 | |||
Operating Temperature | °C | -40~75 | |||
Storage Temperature | °C | -45~85 | |||
