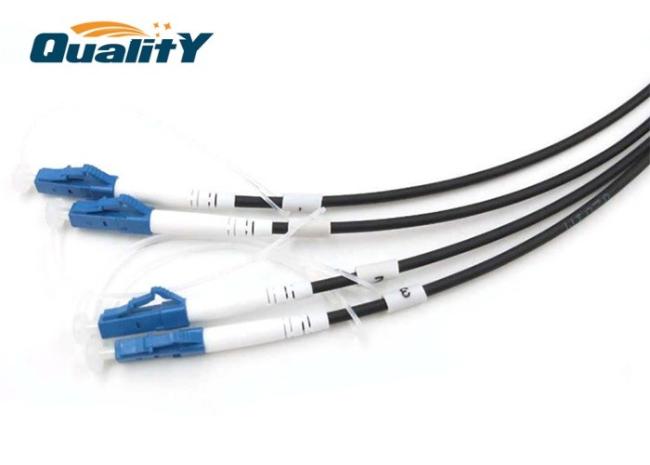

Outdoor Armored Fiber Optic Cable / 100-150M LC / UPC For Military Tactical / Fiber Optic Patch Cable
Outdoor Armored Fiber Optic Cable 100-150M LC / UPC For Military Tactical Fiber Optic Patch Cable
Deescription
Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.
Features
● Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
● High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
● A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
● Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;
● Environmental friendly, Comply with RoHS.
Applications
● Data transmission and industrial automation and control bus system
● Intelligent systems and industrial robot servo system
● Communication switching system
● Digital multimedia systems
● Medical sensing system
Military Communications
● Coal, oil, natural gas, etc.
● Geological exploration Communications
● Broadcast television,
● Emergency reopened optical fiber communication
Performances Specifications
|
Item |
PARAMETER |
|
Connector type |
LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional |
|
Fiber type |
Single mode 1310/1550 or multimode 850/1300 |
|
Insertion loss |
SM ≤0.2dB MM ≤0.2dB |
|
Returen loss |
SM ≥50dB MM ≥35dB |
|
Repeatability |
≤0.1 |
|
Interchangeability |
≤0.2dB |
|
Durability |
≤0.2dB |
|
Fiber Length |
1m ,2m,3m .....any length for optional |
|
Length and tolerance |
+10cm |
|
Operating Temperature |
-45~85℃ |
|
Storage Temperature |
-45~85℃ |
