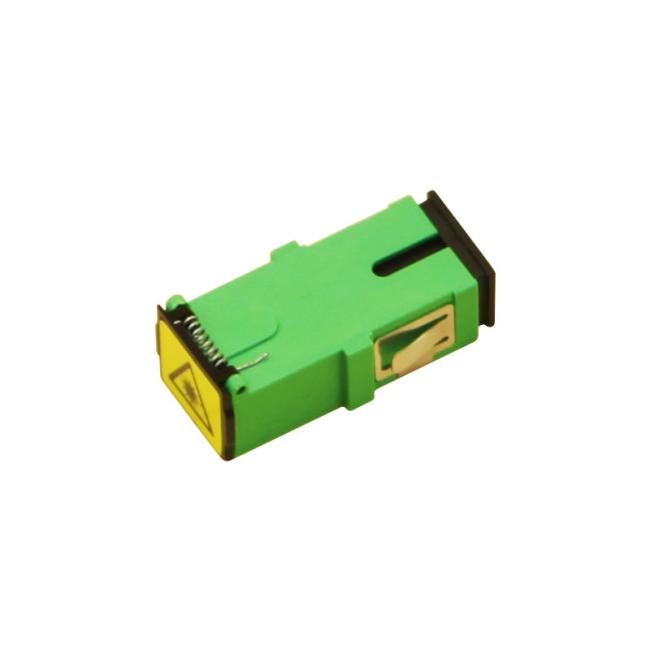

Plastic FTTx Coupler Standard SC / APC Fiber Optic Adapter Compact QADSC-APC-003
Plastic FTTx Coupler Standard SC / APC Fiber Optic Adapter Compact
Overview
The fiber optic adapter is used to connect two fiber optic cables with UPC (Ultra Physical Contact), APC (Angled Physical Contact) connectors. It can be used with fiber optic patch cords, which send high-speed data through a network. The adapter is a part of the optical path, it guarantees the stability of transmission parameters, and high-quality ceramic ferrule assures lower return loss. Openable clips ensure easy assembly and disassembly. The cable which has application in this adapter is used in cable ducts, cubicles, and pipes with low mechanical pressure.
Features
- ROHS, CE compliant
- High Reliability
- Low return losses due to the APC polish
- Easy installation due to the SC connector
- Effective data transmission
- Small size
Application
- FTTA
- For the connection between the distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
- Backbone installation
- Data center cabling
- Telecommunication network
- Industrial & Military
Specification
|
Item Name |
Unit |
SC/APC Optic Fiber Adapter | |
| Grade S (Standard) | Grade P (Premium) | ||
| Insertion Loss | dB | ≤0.2 | ≤0.1 |
| Repeatability | dB | ≤0.1 | |
| Interchangeability | dB | ≤0.2 | |
| Operating Temp. | ℃ | -25 ~ +70 | |
| Durability | times | ≥1,000 | |
| Fiber Count | --- | Simplex, Duplex | |
