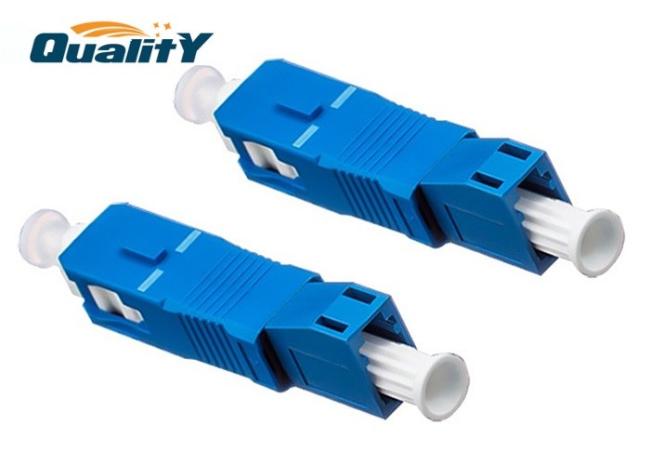

FTTH LC Female To SC Male Hybrid Flange Fiber Optic Adapter Insertion Loss 0.2dB
FTTH LC Female to SC Male Hybrid Flange Optical Fiber Adapter
LC(Female) to SC(Male) type fiber optic Conversion adapter, Converting LC connector to SC Connector. Variable LC interface conversion SC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.
Features:
Type:LC, SC, ST, MU, FC, MTRJ, SMA, etc
Size: Single-mode, Mutil-mode; Simplex or duplex.
Polishing Grade: PC, UPC, APC
Stable capability and high reliability
Low insertion loss value
Ceramic or Bronze Sleeve
Application:
Optical Fiber Communication;
CATV;
Optical Transmission Backbone;
Optical Fiber Test and Measurement Systems;
Specification
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM-50/125 PC | MM-62.5/125 PC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB | ≥35 dB |
| Durability (500 Mating) | 0.2dB Max. | |||
| Operation Temp | -40~+85 | |||
| Storage Temp | -40~+85 | |||
