Singlemode Fiber Optic Adapter

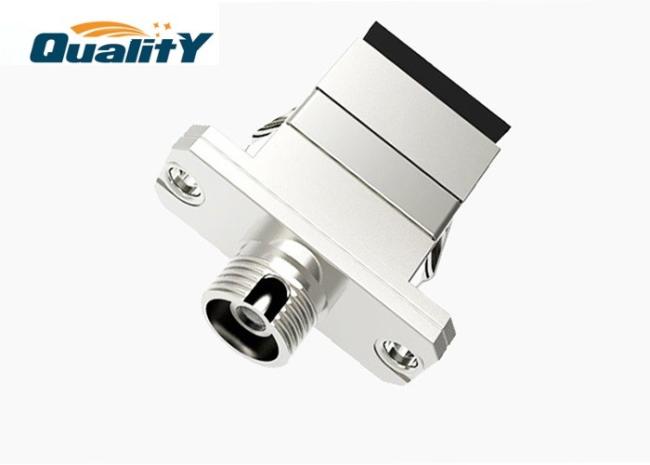

Singlemode Fiber Optic Adapter / FC To SC Metal Adapter Connector
Feature
• Low insertion loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
Application
CATV
Passive/Active device termination
Tlelecommunication metworks
Metro Industry
Aero Industry
Local Area Networks(LAN)
Test equipment
Specification
| Optic fiber adapter | |
| Brand | QY |
| Connector Type | FC, SC, ST, LC, MPO, etc. |
| Operating Wavelength | 1260nm-1650nm |
| Insertion Loss | ≤0.2dB, max 0.3dB |
| Return Loss | PC≥45dB ,UPC≥50dB,APC≥65dB |
| Exchangeability | ≤0.20dB |
| Vibration | 10-60Hz, 1.5mm ≤0.10dB |
| Tensile | ≤0.10dB (0-15Hg, except Ø0.9mm) |
| Plug times | >1000 (Times), ≤0.20dB |
| Storage Temperature | -40°C ~ +85°C |
| Operating Temperature | -40°C ~ +85°C |
