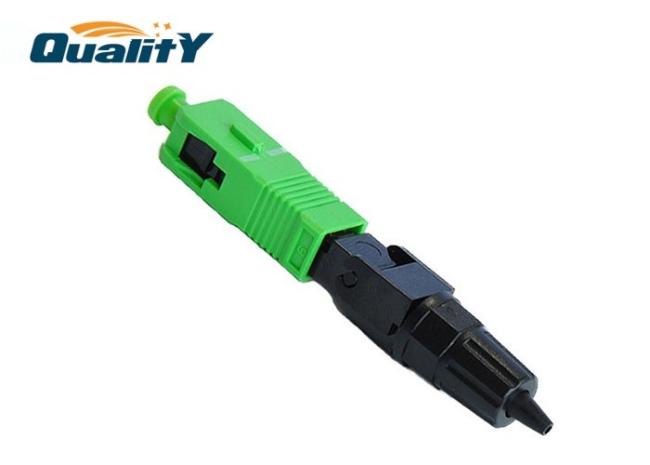

QSC60K1-APC-0.9 Mountable Fiber Optic Fast Connector With Ceramic Ferrule / SC APC Fast Connector
QSC60K1-APC-0.9 Mountable Fiber Optic Fast Connector With Ceramic Ferrule / SC APC Fast Connector
Description:
Quick Assembly SC connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Simplex / Duplex
Specification:
| ITEM | Technical Parameters |
| Applicable for |
Drop cable / Indoor cable 0.9mm Tight Buffer Fiber |
| Optical fiber diameter |
SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.5dB(1310nm & 1550nm) |
| Return loss | > 45db(UPC), > 55db(APC) |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
Applications:
CATV
Telecom network
Optical test equipment
Local area networks
Wide area networks
Data processing Networks
