Machanical Fiber Optic Fast Connector SC UPC APC Quick Connector FTTH Drop Cable / Sc Fast Connector
Price:
USD 0.33usd-0.6usd
MOQ:
100pcs for minium order
Delivery Time:
7 working days
Brand:
QualitY or QY
Product Description

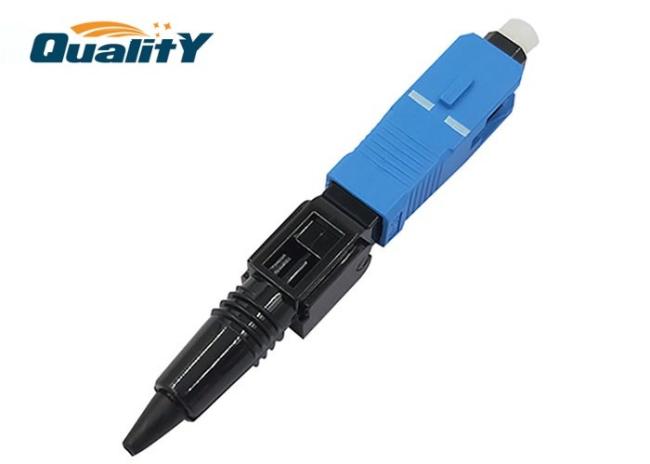

Machanical Fiber Optic Fast Connector SC UPC APC Quick Connector FTTH Drop Cable / Sc Fast Connector
Fiber optic fast connector: A high performance, easy to use mechanical fiber optic connector. It can be widely used in FTTH drop cable connection and inter-connection. It has the same connection performance as the standard SC connector, and can be connected directly to the standard SC adapter.
Application
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH
5. Field word
Specification
| Fast Connector Specification | |||
| Mode | SM | MM | |
| Polish end | UPC | APC | PC |
| Insertion Loss | Typical ≤0.3dB | ≤0.25dB | |
| Maximum ≤0.5dB | |||
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Durability | 500 times mating | ||
| Reusable Times | >5 times | ||
| Operating Temperature | -20° C ~ +70° C | ||
| Storage Temperature | -40 ° C ~ +85 ° C | ||
Features
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE
Packing
