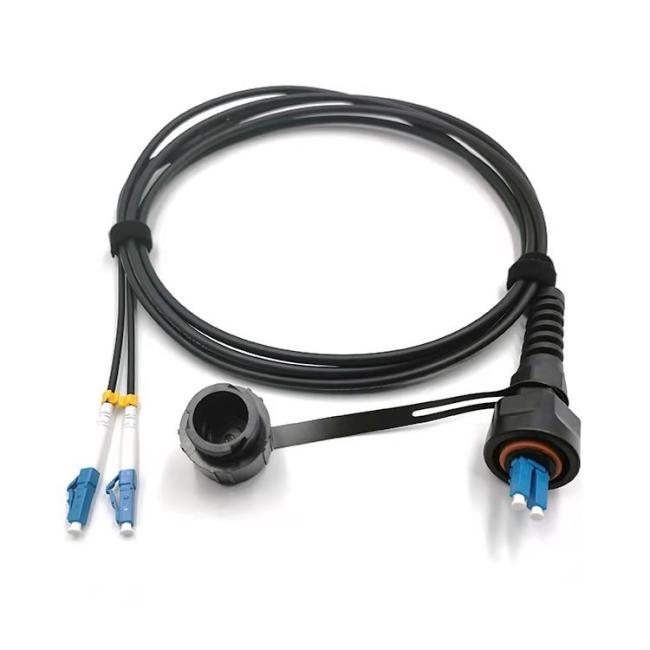

ODVA(DLC)-DLC Waterproof Fiber Optic Patch Cable
Overview
ODVA waterproof fiber patch cable is mainly used in base station for Fiber To The Antenna (FTTA) application. It is available in both single-mode and multi-mode versions. The ODVA-LC is a typical structure for BBU to AAU. The rugged design is also suitable for different temperatures and weather, especially ideal for harsh environment. It also can be custom made in ODVA Duplex LC to other popular connectors.
Features
- Low Insertion Loss
- high return loss
- Rugged fiber cable structure
- Excellent link and crush resistant
- Available for LC, SC,MPO and other standard connectors
- ROHS, CE compliant
Application
- FTTA
- For the connection between the distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
- Backbone installation
- 3G, 4G, 5G base station & Data center cabling
- Telecommunication network
- BBU,RRU,RRH,and LTE.
Specification
| Parameters | Standard Fiber Cable Assemblies | ||
| Connector | Side-A | ODVA Connector | |
| Side-B | ODVA Connector, DLC(duplex LC), SC,MPO | ||
| Fiber count | 1 Core, 2 Cores, 4 Cores and more | ||
| Fiber Type | SM(G657A1/G657A2) | MM(OM1/OM2/OM3/OM4) | |
| Jacket Materials | LSZH//TPU | ||
| Jacket Color | Black | ||
| Outer Diameter of fiber cable | 5.0mm | ||
| Insertion Loss | ≤ 0.3dB (UPC) | ||
| Return Loss | ≥50dB(UPC/SM) | ≥35dB(UPC/MM) | |
| Exchange ability | ≤ 0.2dB | ||
| Distribution length | 50cm | ||
| Operating Temperature | -25 ~ + 70 ℃ | ||
| Storage Temperature | -25 ~ + 70 ℃ | ||
