Solution Fiber SC APC Single Mode Adapter Low Sertion loss

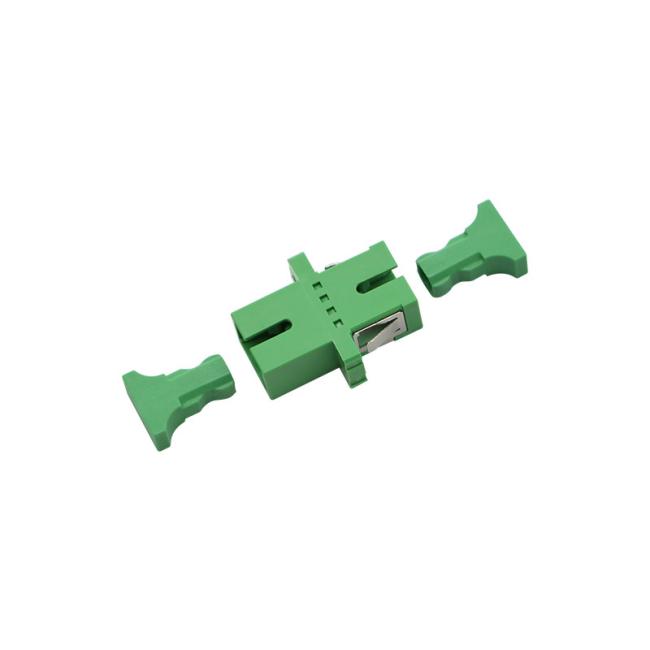

SC/APC Simplex Single mode Fiber Optic Adapter with Alignment Ceramic Sleeve for Telecommunication Equipment
DESCRIPTION
Fiber Optic Adaptor (also called coupler, or flange coupler) is the device to couple two connectors together. QY’s adaptor adopts high precision alignment sleeve to keep high reliability and better performance. The color of housing is available in different colors or specified by customer, and with options for flange or flangeless body.
Features
Low Insertion Loss
Good Repeatability and Exchangeability
Extraordinary Stability
Compact design
High precision alignment
Easy to use
Applications
FTTH
CATV
LANs
WANs
Urgent Repair
Telecommunication Networks
Premise installations
Specification
| Item Name | Unit | SPECIFICATIONS | |||||
| Grade S (Standard) | Grade P (Premium) | ||||||
| △IL(Insertion Loss) | dB | ≤ 0.2 | ≤ 0.1 | ||||
| Interchangeability | dB | ≤ 0.2 | |||||
| Repeatability | dB | ≤ 0.1 | |||||
| Durability | times | ≥ 1,000 | |||||
| Operating Temp. | °C | -25 ~ +70 | |||||
| Fiber Count | Simplex | ||||||

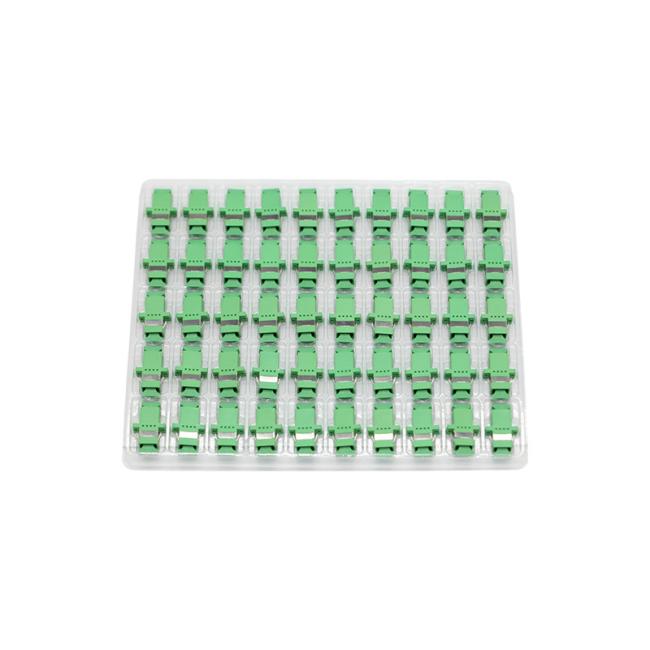

PACKAGING CAN BE CUSTOMIZED.
