1.00% CH4 Methane alarm LED miner cap lamp

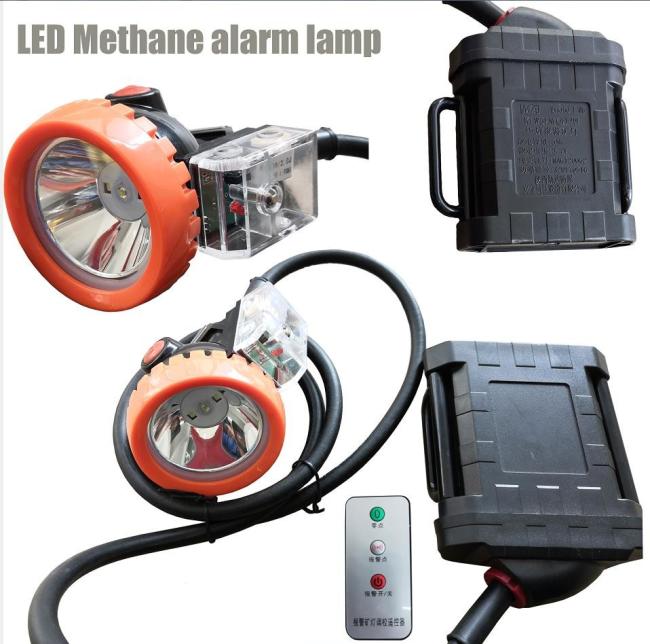

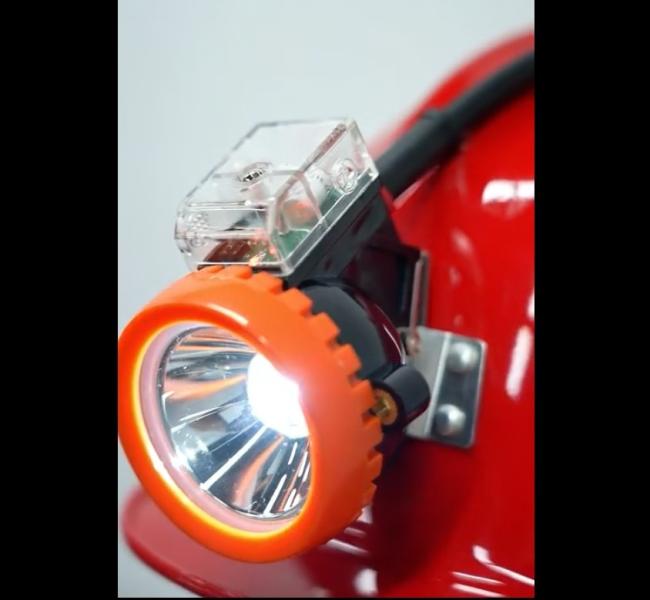

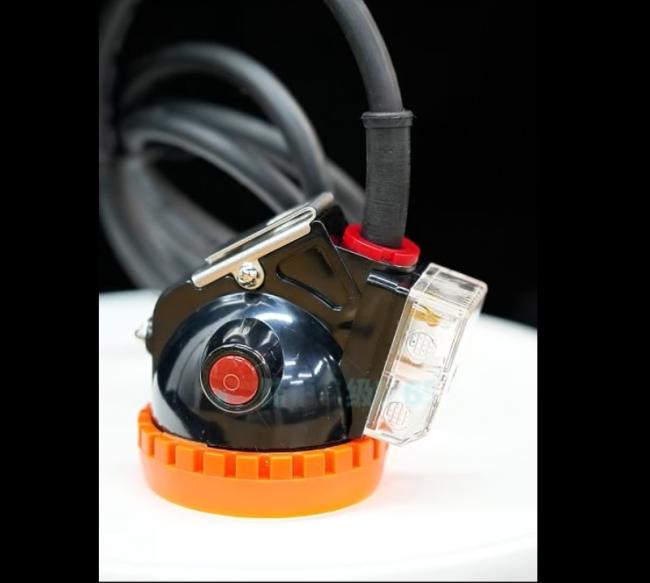

KLW6LM(A) Methane Alarm LED Miner’s Cap Lamp
Application
KLW6LM (A) methane alarm miner‘s cap lamp has a unique belt loop design, and the tightness can be adjusted automatically. The structure is sturdy and suitable for various harsh environments. Intelligent control can adapt to various charging devices. The intelligent microcontroller is cleverly combined with the methane detection circuit, equipped with a remote control calibration device, which can realize one-key calibration, convenient and fast to use.
It is suitable for underground lighting and methane over-limit alarm in coal mines, and can also be used in other places that require mobile lighting.
Main specification
| Item | KLW6LM(A) | ||
| Battery style | Li-ion | ||
| Rated capacity | 6Ah | ||
| Rated voltage | 3.7V | ||
| Lighting time | ≥15h | ||
|
Main light source |
Rated voltage | 3.7V | |
| Rated current | 0.22A | ||
| Illumination after 11 hours’ lighting | ≥5000 Lx | ||
| Power of auxiliary light source | 0.2W | ||
| Battery cycle life | >500 times | ||
| Catalysis element | Working voltage | 2.8V | |
| Working current | ≤95mA | ||
| Alarm point (factory setting) | 1.00%CH4 | ||
| Alarm point error | ±0.10%CH4 | ||
| Weight | <0.6kg | ||
