CWG650 Intrinsically Safe infrared temperature meter, gun type red and black infrared thermometer

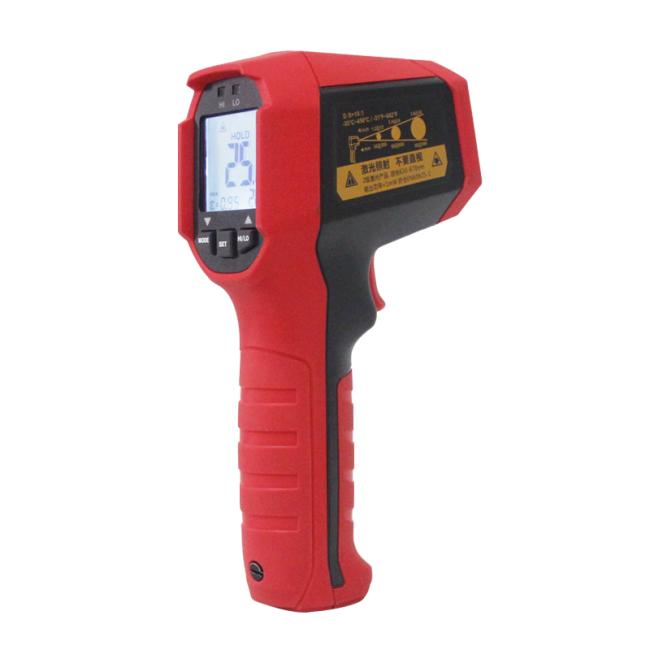

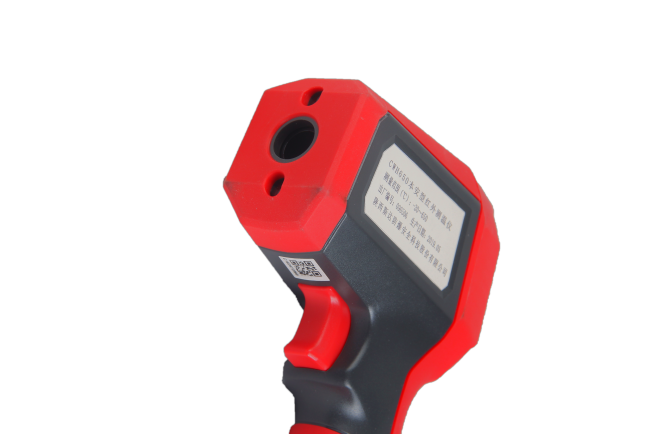

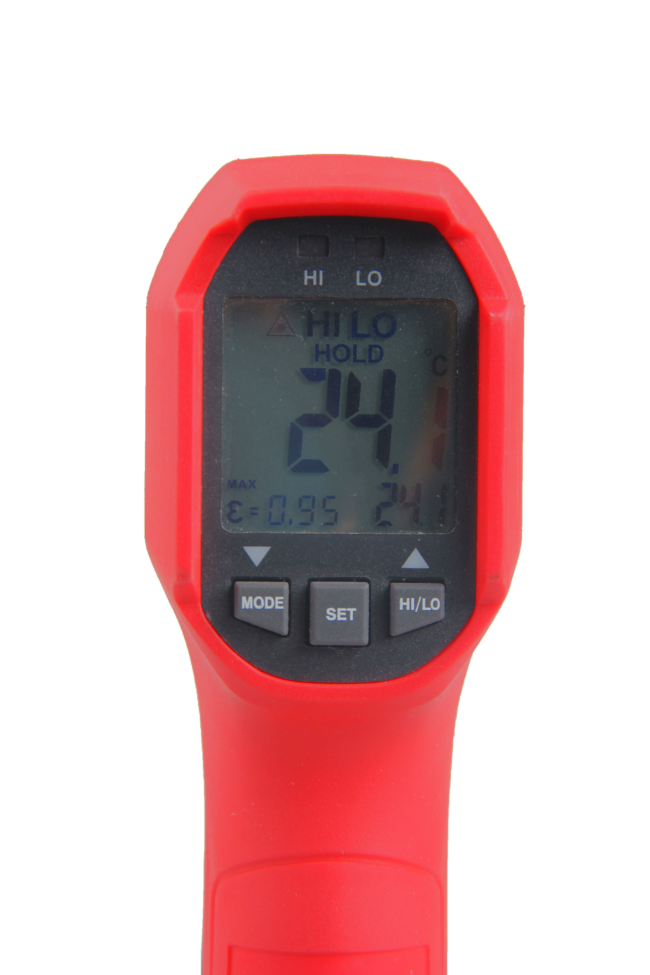

CWG650 Intrinsically Safe Infrared Thermometer
Application
It is a professional non-contact high-precision infrared temperature detector; the surface temperature can be quickly and accurately determined by measuring the infrared energy radiated from the target surface, which is rugged, small in size, high in precision, dustproof, waterproof, easy to use and so on.
The thermometer is mainly used to measure the temperature of the object surface quickly and non-contact in the working environment with flammable and explosive gas mixture.
Main specification
| Item | Main technical specification | ||
| Measurement range | (-30-650)°C | ||
| Intrinsic error | -30＜T≤0 | 0＜T≤100 | 100＜T≤650 |
| ±2.0 | ±1.5 | ±2% °C of the true value | |
| Temperature coefficient | 0.1 °C or ±0.1% of reading per degree, take a larger value | ||
| Optical resolution | 12:1 | ||
| Response time | 250ms | ||
|
Spectral response |
(8-14)μm | ||
| Display resolution | 0.1 °C (0.1 °F) | ||
| Emissivity | 0.1-1.0 adjustable | ||
| Aiming method | laser aiming | ||
| Number of lasers | 2 | ||
| Display hold time | 8s | ||
| Battery pack | 6F22 type / 9V battery | ||
| Explosion-proof type | Exib I Mb | ||
| Dimension | (189×118×55)mm | ||
| Weight | 292g | ||
|
Operating environment
|
Operating temperature: 0 °C- 40 °C ; Operating humidity: <90% (non-condensing); Atmospheric pressure: (80 - 116) kPa |
||
