KL3LM(A) cordless integrated intrinsically safe LED headlamp with SOS strobe mode
KL3LM(A) Intrinsically Safe Integrated Miner’s Cap Lamp
Main characteristics
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting.
2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable.
3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS.

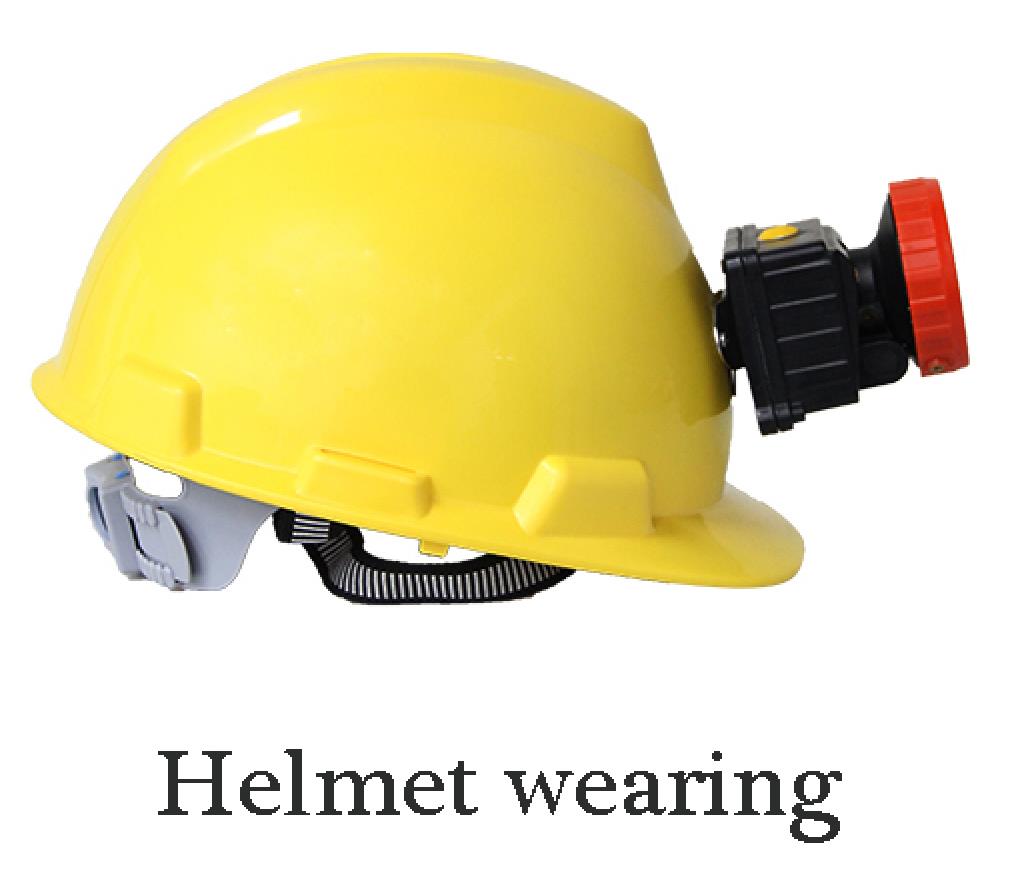

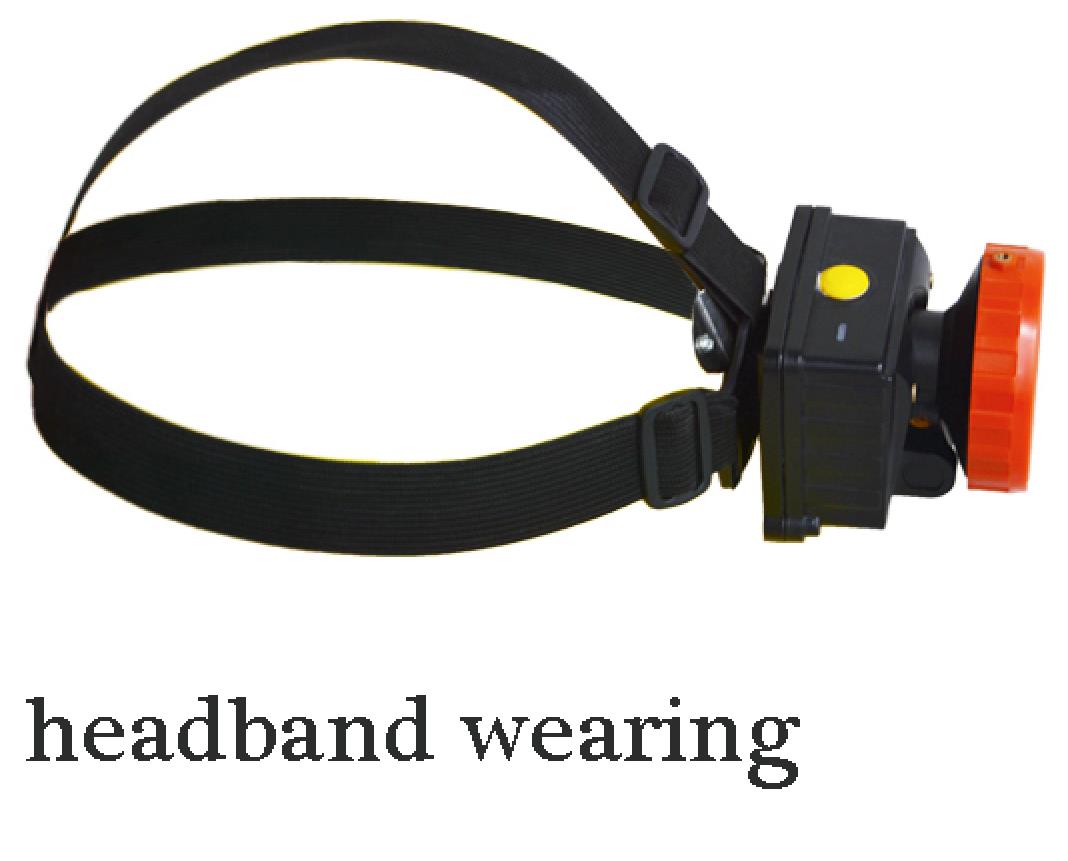

4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing.
Technical parameters
| Item | Specification | ||
| Battery type | Li-ion | ||
| Rated capacity | 3Ah | ||
| Rated voltage | 3.7V | ||
| Lighting time | >12h | ||
| Main light source | Rated current | 200mA±10mA | |
|
Maximum illuminance ( at 1m away from lamp) |
When lighting begins | ≥4500lx | |
| After lighting for 11h | |||
| Cycle life of battery | ≥500 cycles | ||
| Charging time | ≤6h | ||
| Explosion proof type | Ex ia I Ma | ||
| Protection grade | IP65 | ||
| Dimensions | 84×68×73mm | ||
| Weight | ≤200g | ||
Matching information

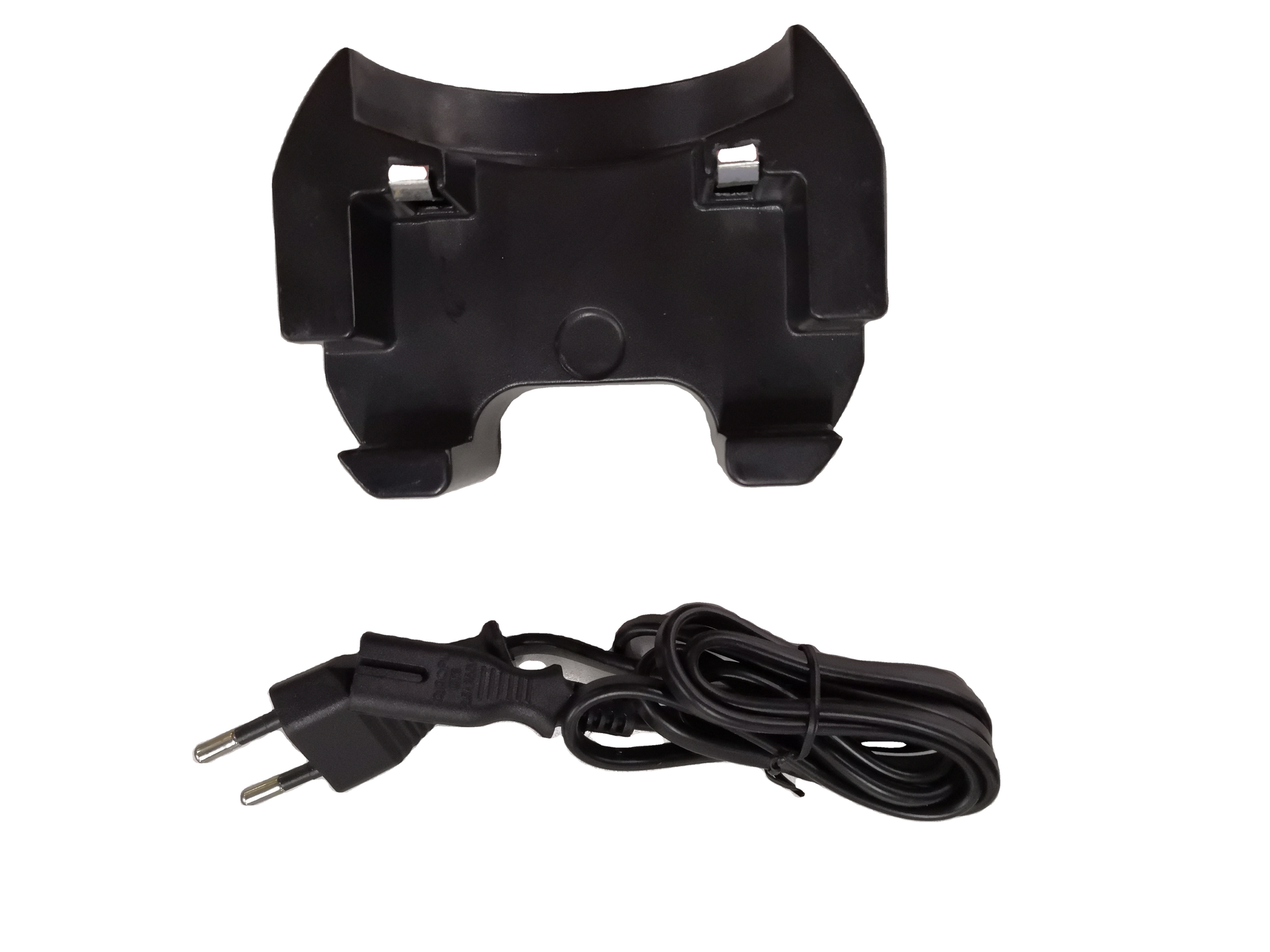

| Standard fittings | Single charger, headband |

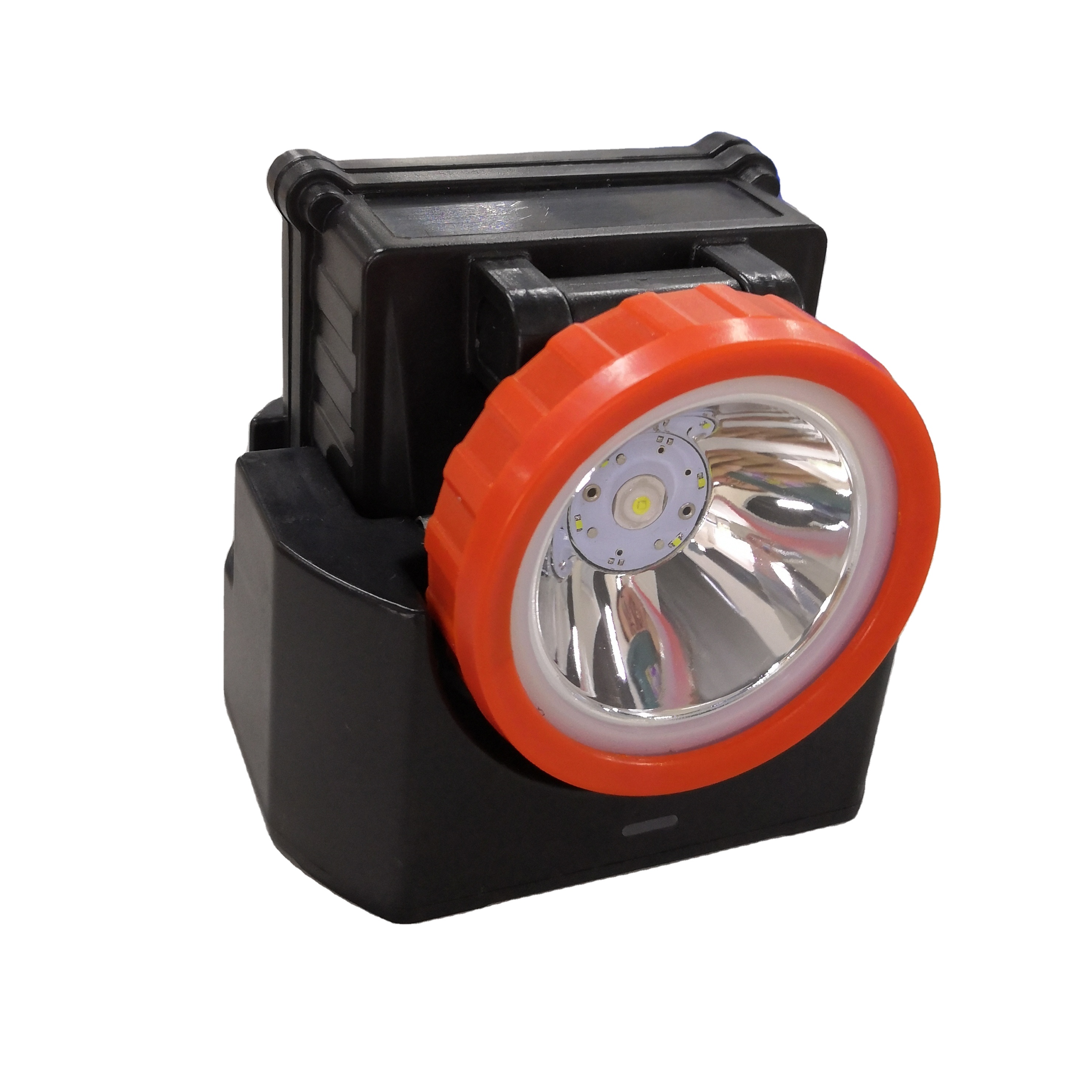

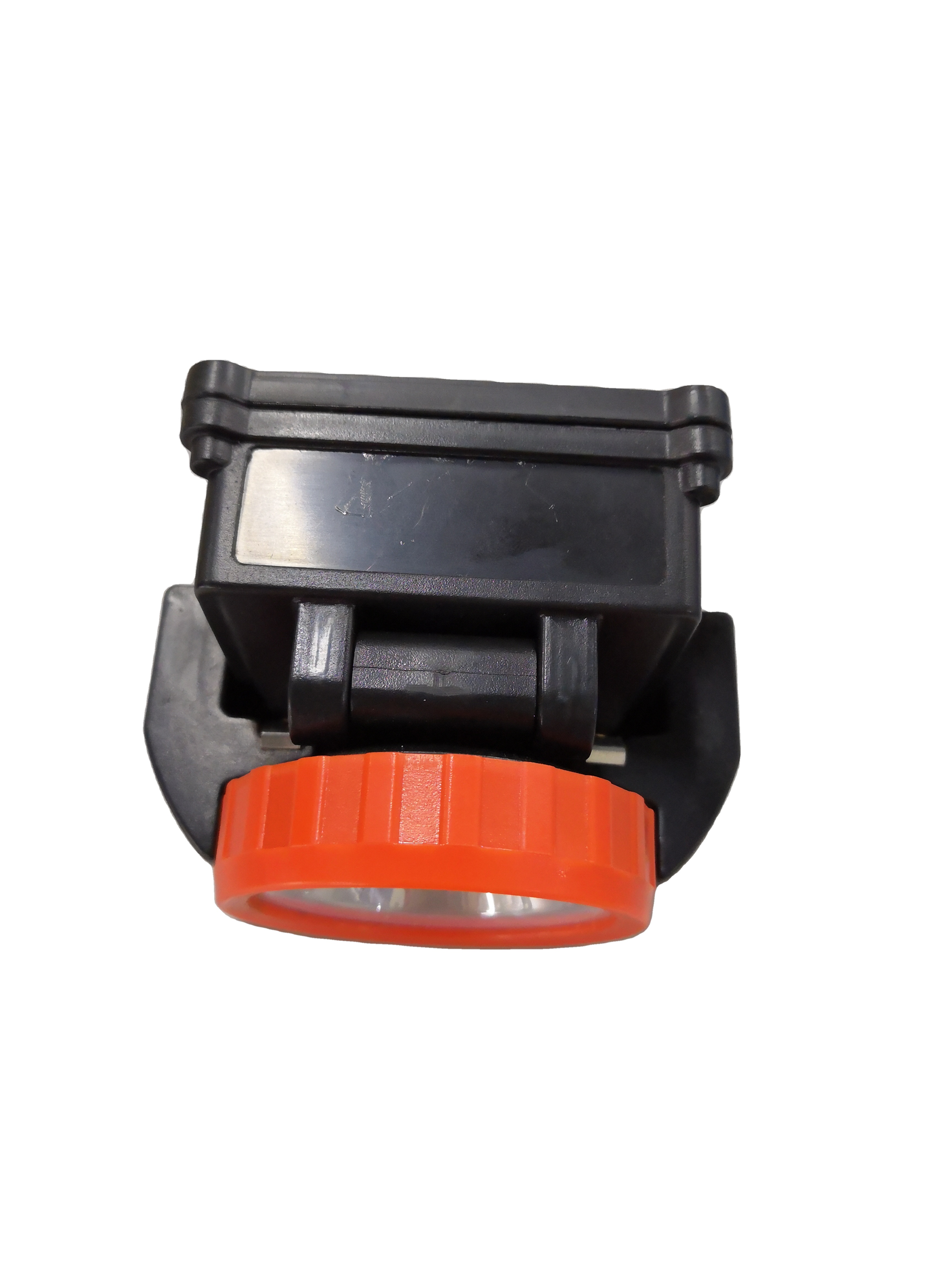

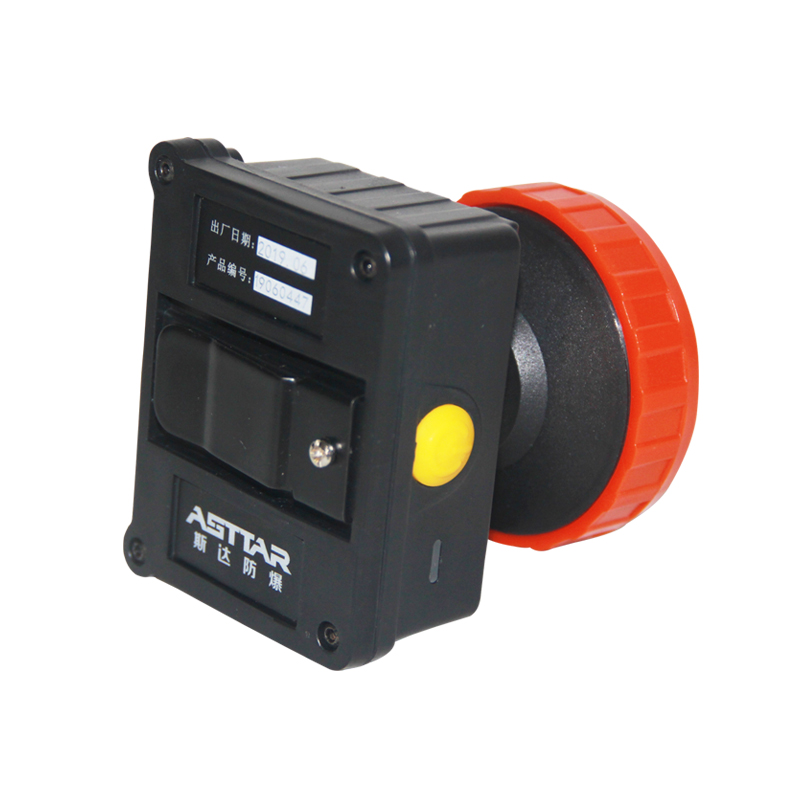

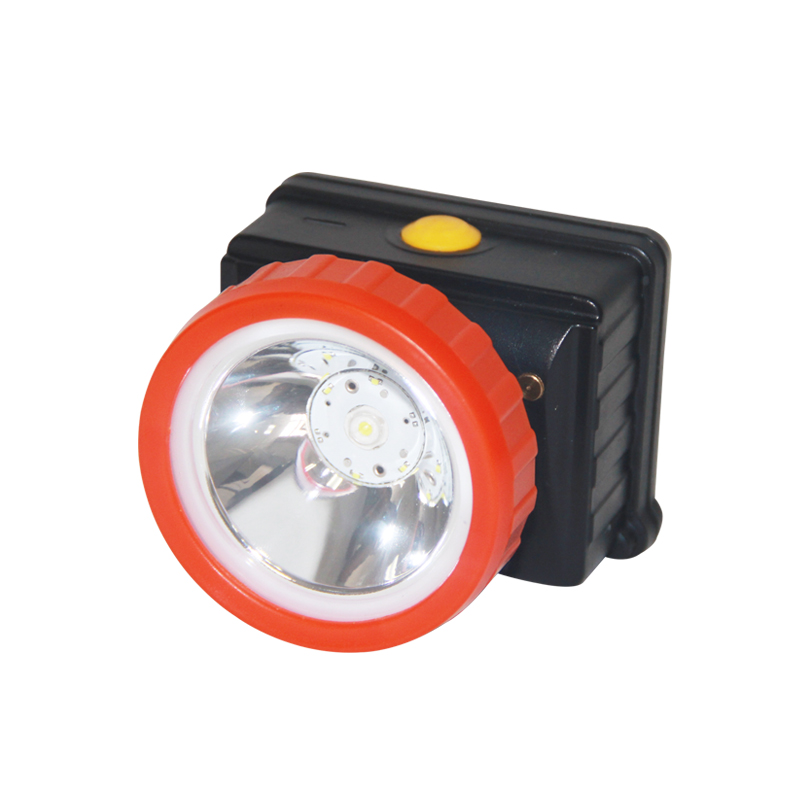

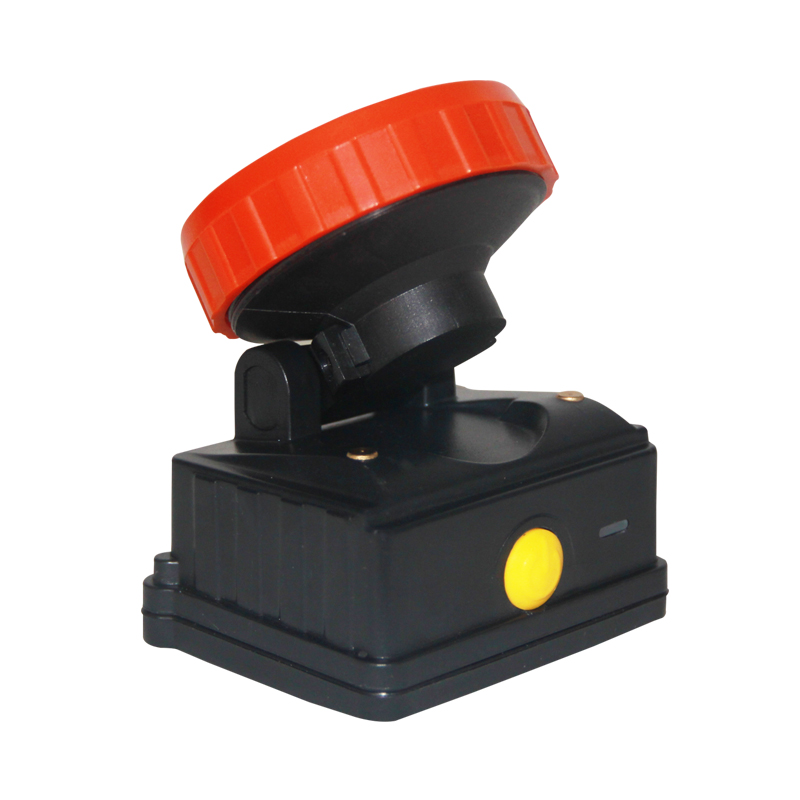

Product pictures

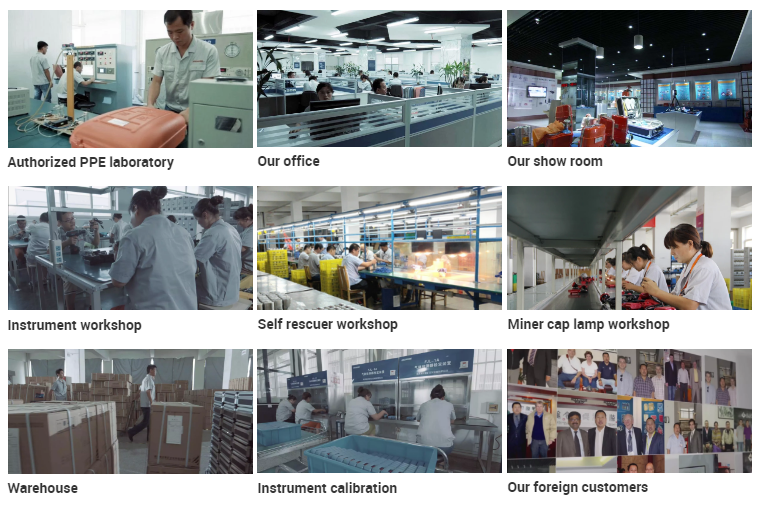

With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 20 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We trade as "GOKANG" brand (former brand, since1995) and "ASTTAR" brand (since 2017).
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter

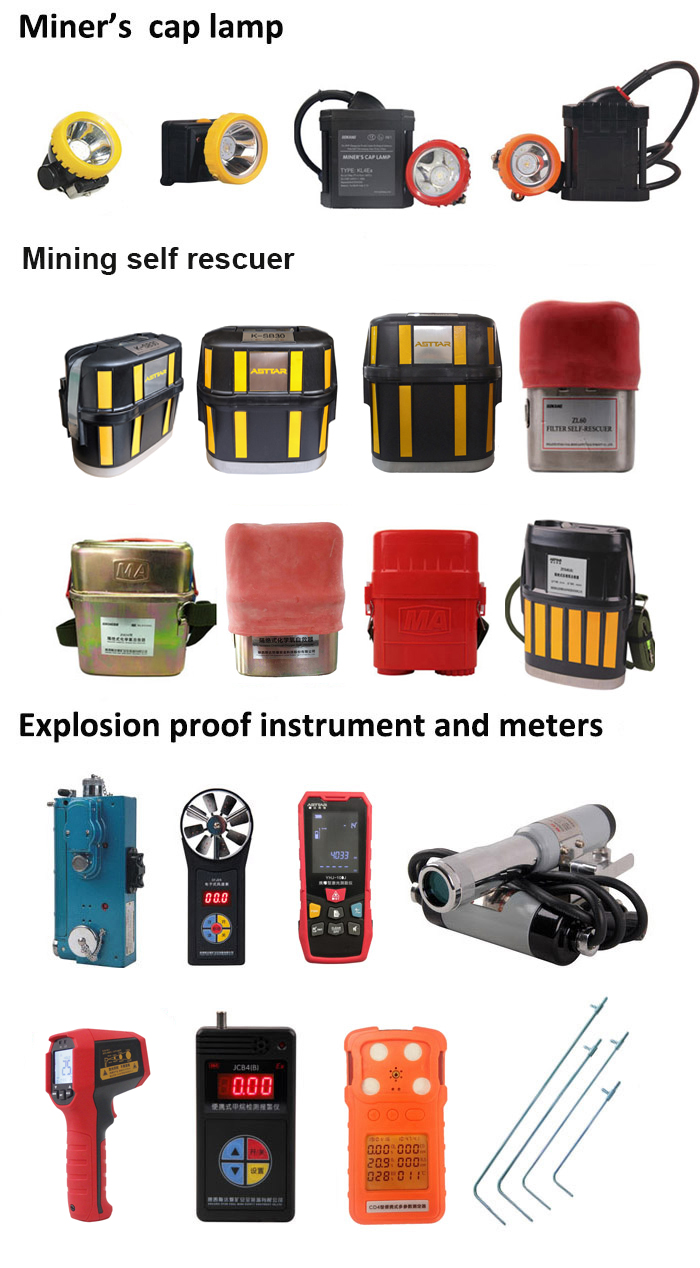

Our main products:
